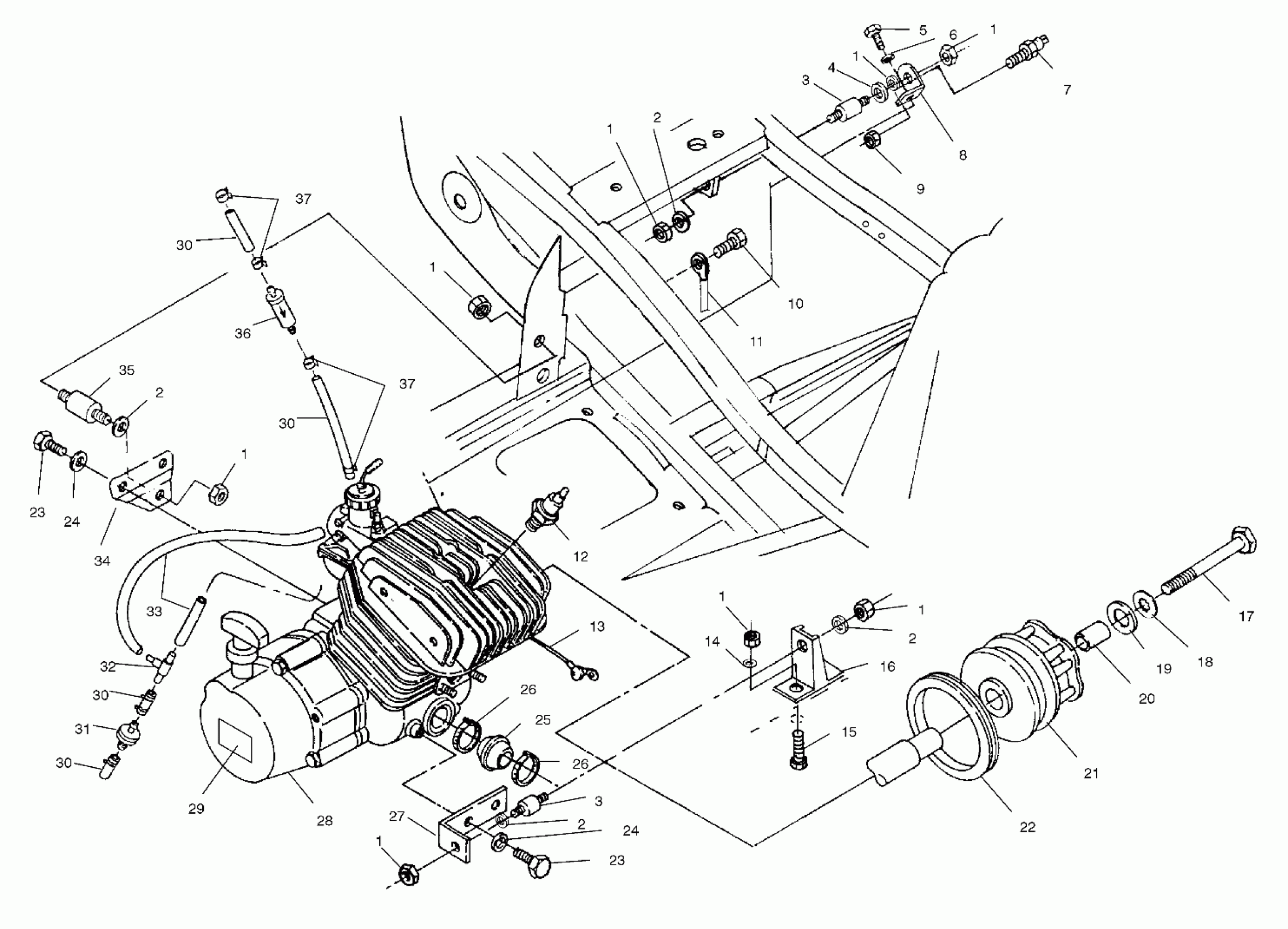

Polaris XPLORER - A00AG25CA ENGINE MOUNTING - A00AG25CA (4954865486A009) Diagram

#

Description
Price

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

2

WASHER(10)

7555823

$3.99

2

WASHER(10)

7555823

$3.99

2

WASHER(10)

7555823

$3.99

2

WASHER(10)

7555823

$3.99

3

MOUNT,MOTOR

3110026

Unavailable

3

MOUNT,MOTOR

3110026

Unavailable

4

INSULATOR,MOTOR MT.

5430802

$27.99

5

BOLT(10)

7512315

$4.79

6

LOCK WASHER(10)

7552901

$1.49

7

SWITCH-TEMPERATURE,260�F

4010284

Unavailable

8

BRKT,ENGINE MOUNT,TOP,250,BLK

5244119-067

Unavailable

9

NUT, LOCK(10)

7542103

$5.59

10

BOLT(10)

7512232

$1.49

11

CABLE,GND-ENGINE

4010132

Unavailable

12

SPARKPLUG (10)

3070156

$3.99

13

CABLE,SOL/START,DBLBOOT

4010129

Unavailable

14

SPACER

5333457

Unavailable

15

BOLT(10)

7512457

$3.99

16

MOUNT,FR.ENGINE,BLK.

1040687-067

$15.56

17

BOLT(10)

7512566

$30.79

18

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

19

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

20

BUSHING-.437 X.770 X.50

5430261

$7.19

21

Asm., Drive Clutch, Basic ATV-08 (See Drive Clutch Pg. C7, Ref. 16)

-------

Unavailable

22

Seal, Cover, Case (See Clutch Cover Pg. C9, Ref. 30)

-------

Unavailable

23

SCREW(10)

7512490

$3.99

23

SCREW(10)

7512490

$3.99

24

WASHER(10)

7552603

$1.49

24

WASHER(10)

7552603

$1.49

25

BOOT,CLUTCH INTAKE

5410421

$11.19

26

CLAMP, NARROW BAND(10)

7080511

$4.79

26

CLAMP, NARROW BAND(10)

7080511

$4.79

27

BRKT-ENGINE MOUNT,FRT,250,BLK

5242896-067

$15.56

28

ENG.(S.B.)EC25PF-SB [No Longer Available] (EC25PFE12) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior au

3084717

Unavailable

29

DECAL,DRAIN RECOIL

7078577

Unavailable

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

31

VENT,CHECKVALVE

7051011

Unavailable

32

Fitting, Tee

7052005

Unavailable

33

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

34

BRKT-ENGINE MOUNT,REAR,250,BLK

5242897-067

Unavailable

35

MOUNT, MOTOR

3110028

Unavailable

36

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

37

HOSE CLAMP, RED

7080003

$1.49

37

HOSE CLAMP, RED

7080003

$1.49
