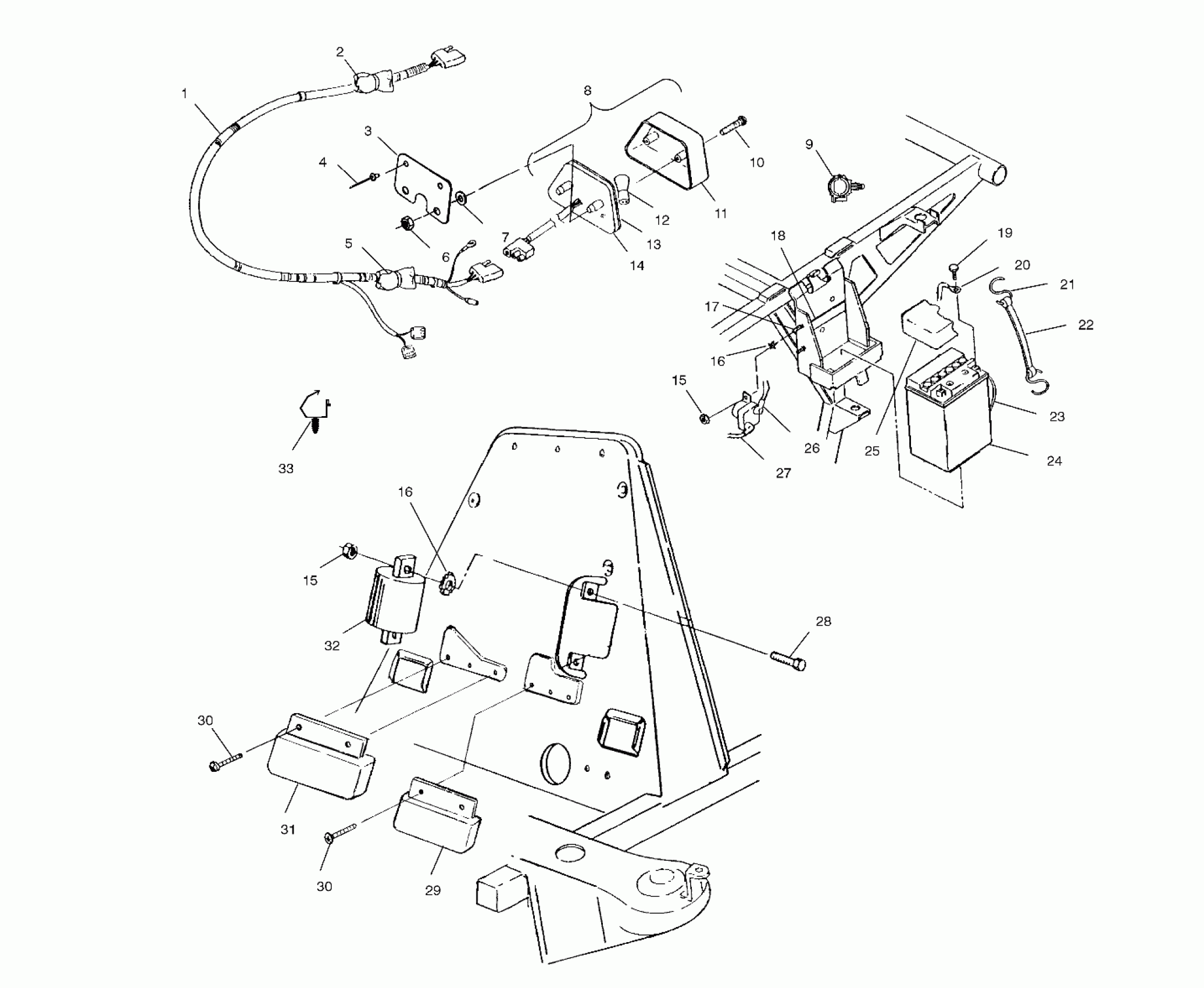

Polaris XPLORER - A00AG25CA ELECTRICAL/TAILLIGHT - A00AG25CA (4954865486D002) Diagram

#

Description
Price

1

HARNESS, MAIN CONNECTOR

2460780

Unavailable

2

KIT-CIRCUT BREAKER,FAN

2201795

$72.84

3

ISOLATOR,TAILLIGHT

5211391-067

$13.39

4

RIVET(50)

7621470

Unavailable

5

KIT,CKT.BRKR,20 AMP

2200593

$68.79

6

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

7

WASHER,NYLON(10)

7555916

$1.59

8

TAIL LIGHT ASM. (Incl. 11-6)

2432034

$55.56

9

CLIP,ROSEBUD

4020149

$6.35

10

Screw, Taillight

4032029

$4.76

11

LENS,TAILLIGHT

4032046

$32.37

12

BULB,TAILLIGHT

4030043

$6.46

13

GASKET,TAILLIGHT

4032045

$4.03

14

BACKING,TAILLIGHT

4032064

$83.33

15

NUT(10)

7541925

$0.79

15

NUT(10)

7541925

$0.79

16

WASHER(10)

7571602

$4.76

16

WASHER(10)

7571602

$4.76

17

SCREW(10)

7512027

$1.19

18

PAD-BATTERY

5810290

$7.27

19

BOLT,BATT,KIT(SHORT) (Short)

2200361

Unavailable

20

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

21

HOOK-BATT.H/D(10)

7010032

$1.59

22

STRAP,BATTERY HOLDDOWN

5410424

$4.84

23

TUBE,BATTERY VENT

5432077

Unavailable

24

Battery

4140006

$99.99

25

COVER,BATTERY

5431769

$15.37

26

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

27

CABLE,SOL/START,DBLBOOT

4010129

Unavailable

28

SCREW(10)

7512007

$3.97

29

RECTIFIER/REGULATOR,LR39-1

4060208

Unavailable

30

SCREW,(10)

7512024

$4.76

30

SCREW,(10)

7512024

$4.76

31

LIMITER-RPM,HUB,GROUND,LR83-1

4010188

Unavailable

32

Ignition Coil Complete (See Magneto Pg.C12, Ref. 16)

----

Unavailable

33

CLIP-ROUTING

7670109

$2.38
