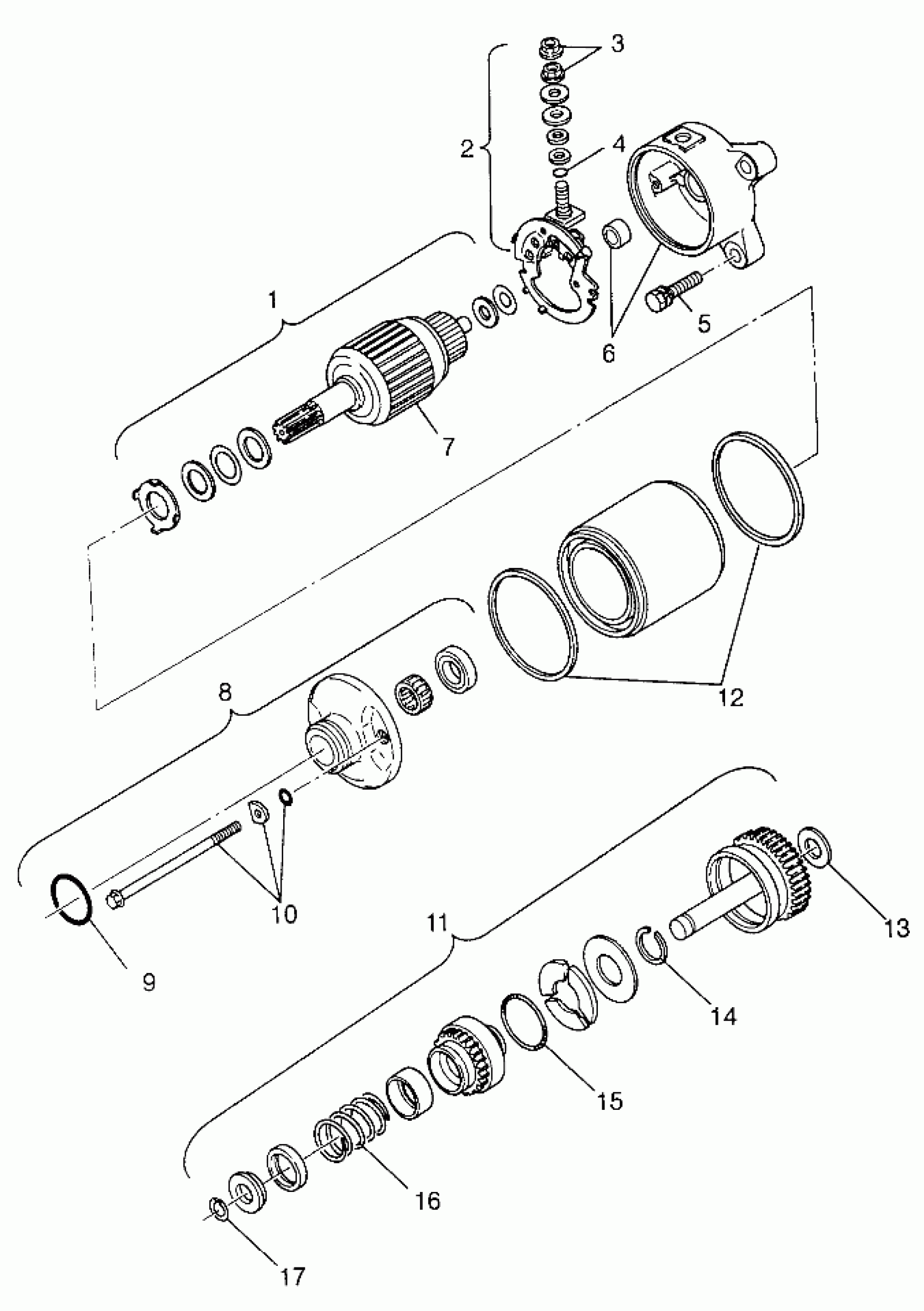

Polaris XPLORER 500 - W97CD50A STARTING MOTOR XPLORER 500 W97CD50A (4941354135D014) Diagram

#

Description
Price

-

MOTOR, STARTING * (Incl. 1-4, 6-10, 12)

3084981

Unavailable

1

Washer Set

3084982

Unavailable

2

BRUSH,COMPL.2-POLE *

3084406

Unavailable

3

NUT, FLANGE(10)

3083649

$3.99

4

O-RING

3084408

Unavailable

5

BOLT&WASHER ASM.

3082038

$3.99

6

COVER,REAR,STARTER(MAGNUM)

3085034

$91.99

7

ARMATURE ASM.

3085353

Unavailable

8

COVER,FRT,STARTER(MAGNUM) *

3085033

$137.60

9

O-Ring

3240114

$5.59

10

BOLT ASM, SET (Incl. 4)

3084983

$23.99

11

SHAFT ASM,GEAR Substituted by 3087030 (Incl. 12-17)

3085394

Unavailable

12

RING, RUBBER

3084405

Unavailable

13

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

14

CLIP

3084412

$9.59

15

SPRING, WEIGHT

3084411

$15.67

16

SPRING, RETURN

3084410

$2.47

17

CLIP

3084409

$7.19
