Description

Price

1

RIVET(50)

7661645

$3.99

2

CAB,REAR,GEN 4,P.RED

5432117-136

Unavailable

3

SCREW(10)

7511930

$2.39

4

WASHER(10)

7555792

$4.79

4

WASHER(10)

7555792

$4.79

5

FOIL,REAR CAB,REAR

5811107

$6.46

6

Grommet

5411042

Unavailable

7

NUT(10)

7541925

$1.49

8

RETAINER,SEAT LATCH

5224592

Unavailable

9

FOIL,TAPE,3 X 12

5811308

$12.79

10

SCREW(10)

7515180

Unavailable

11

WASHER, FLAT(10)

7555859

$1.49

12

SCREW(10) Substituted by 7511989

7512085

Unavailable

13

TOOLBOX

5431786

$53.59

14

BLIND RIVET(50)

7621403

$1.49

15

BRACKET,LEVER RETAINER

5211033

$29.25

16

LATCH,SEAT

1040387

$47.99

17

SPRING, LATCH

7041370

$9.59

18

COVER,SEAT,BLK.

2681747-070

$141.65

18

FOIL,SEATBASE,LG.

5811104

Unavailable

18

FOIL,SEATBASE,SM.

5811105

$9.91

18

SEAT ASM,BLK Substituted by 2682441-070

2682201-070

$424.98

19

Bumper, Rubber

5410414

$3.19

20

SCREW Substituted by 7555748

7517375

Unavailable

21

COVER, TOOLBOX

5431787

Unavailable

22

CAP,DRAIN

5410896

$5.59

23

RIVET,INTERLOCK,B(50)

7661638

$1.49

24

DECAL,FILTER,4-STRK

7077184

Unavailable

25

NUT-WELL(10)

7541923

$5.59

26

GUARD-CLUTCH, BLK

5241403-067

Unavailable

27

Asm., Gearcase (See Pg. NO TAG for Details)

-------

Unavailable

28

WASHER(10)

7552603

$1.49

29

BOLT(10) Substituted by 7512492

7515458

Unavailable

30

CLAMP,HOSE,1",NYLON

7080653

$4.79

31

SCREW,(10)

7512024

$4.79

32

NUT-LOCK(10)

7542122

$1.49

32

NUT-LOCK(10)

7542122

$1.49

33

SPACER,FOOTWELL

5432280

$8.79

34

SCREW

7517377

$4.79

35

FRAME,MAIN,BLK

1040439-067

Unavailable

36

GROMMET

5410770

Unavailable

37

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

38

SCREW Substituted by 7512279

7517376

Unavailable

39

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

39

FOOTWELL,RH,BLK,NYLON Substituted by 5433219-070

5432118-070

$230.70

40

FOIL FOAM

5811111

$32.37

41

FOIL,FR,REAR CAB

5811106

$8.89

42

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable

43

DECAL,CARB.INFO.

7073761

Unavailable

44

FOIL-FOAM,(6X1)

5811087

Unavailable

45

BOLT(10)

7512232

$1.49

46

NUT, SPEED(10)

7670057

$1.49

47

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

47

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable

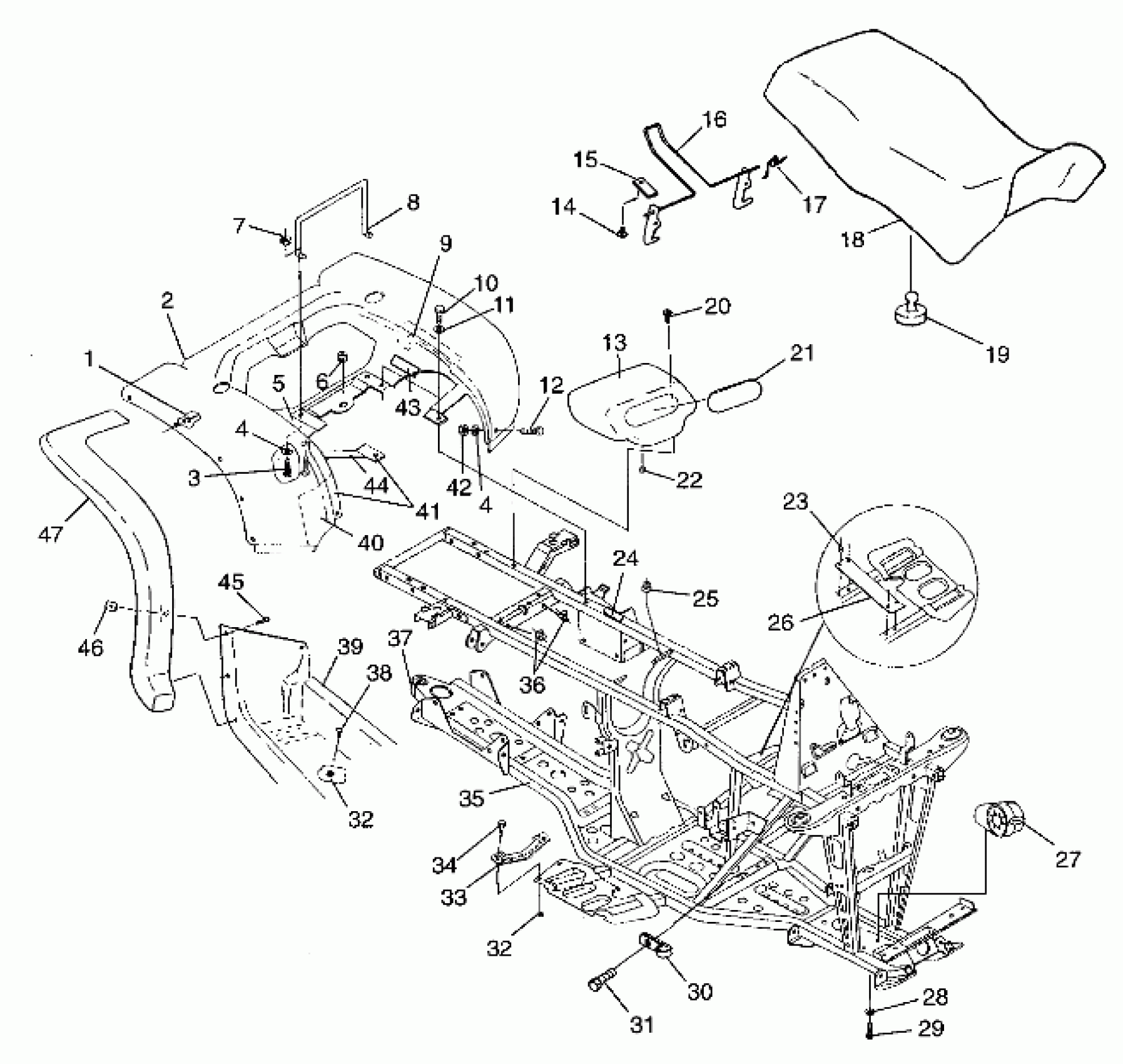

Polaris XPLORER 500 - W97CD50A REAR CAB and SEAT XPLORER 500 W97CD50A (4941354135A005) Diagram

RIVET(50)

CAB,REAR,GEN 4,P.RED

SCREW(10)

WASHER(10)

WASHER(10)

FOIL,REAR CAB,REAR

Grommet

NUT(10)

RETAINER,SEAT LATCH

FOIL,TAPE,3 X 12

SCREW(10)

WASHER, FLAT(10)

SCREW(10) Substituted by 7511989

TOOLBOX

BLIND RIVET(50)

BRACKET,LEVER RETAINER

LATCH,SEAT

SPRING, LATCH

COVER,SEAT,BLK.

FOIL,SEATBASE,LG.

FOIL,SEATBASE,SM.

SEAT ASM,BLK Substituted by 2682441-070

Bumper, Rubber

SCREW Substituted by 7555748

COVER, TOOLBOX

CAP,DRAIN

RIVET,INTERLOCK,B(50)

DECAL,FILTER,4-STRK

NUT-WELL(10)

GUARD-CLUTCH, BLK

Asm., Gearcase (See Pg. NO TAG for Details)

WASHER(10)

BOLT(10) Substituted by 7512492

CLAMP,HOSE,1",NYLON

SCREW,(10)

NUT-LOCK(10)

NUT-LOCK(10)

SPACER,FOOTWELL

SCREW

FRAME,MAIN,BLK

GROMMET

DECAL, HITCH Substituted by 7078261

SCREW Substituted by 7512279

FOOTWELL,LH,BLK,NYLON

FOOTWELL,RH,BLK,NYLON Substituted by 5433219-070

FOIL FOAM

FOIL,FR,REAR CAB

NUT, LOCK(10) Substituted by 7541925

DECAL,CARB.INFO.

FOIL-FOAM,(6X1)

BOLT(10)

NUT, SPEED(10)

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

MUDGUARD,RH,R.BLK. Substituted by 5431797-070
