Description

Price

1

DISC ASM,BRAKE

1910188

Unavailable

2

WASHER(10)

7555921

Unavailable

3

NUT, LH(10)

7542149

$5.43

4

BOLT(10)

7515345

$5.59

5

LOCK WASHER(10)

7552901

$1.49

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

SCREW,BLEEDER

7080352

$3.19

8

CALIPER ASM,R.BRAKE (Incl. 2, 3, 7, 8, 13, 14, 17, 18, 20-28)

1910225

Unavailable

8

CALIPER,R.BRAKE,MACH

5131260

Unavailable

9

PLATE,BRAKE CALIPER

5211668

Unavailable

10

PIN, DOWEL(10)

7661820

$13.99

11

SCREW, SEMS(10)

7512020

$2.39

12

KIT,BRAKEPAD,REAR

2200464

$31.99

12

KIT,R.BRAKEPAD,HVY.DUTY

2200899

Unavailable

13

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$11.99

14

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

Unavailable

15

PISTON,BRAKE Substituted by 2200463

5020667

$84.93

16

KIT-PISTON & SEAL (Incl. 13-15)

2200463

$87.99

17

O RING-.364X.504X.07

5410542

Unavailable

18

SPRING,BRAKE,COMP.

7041219

$24.99

19

PIN,BRAKE CALIPER

5020791

Unavailable

20

GASKET, BRAKE

5830009

$9.99

21

WASHER(10)

7555827

$3.99

22

RAMP,MOVE.BRAKE(THRD PIN)

5630650

Unavailable

23

RAMP,STAT.BRAKE(D/C)

5630652

Unavailable

24

SCREW(10)

7512173

Unavailable

25

SEAL, BRAKE

3610026

$7.99

26

ARM,BRAKE CALIPER

5241458

Unavailable

27

WASHER(10)

7571632

Unavailable

28

BOLT,LH SOC/HD.

7515160

Unavailable

29

PIN COTTER(10)

7661203

$1.49

30

WASHER(10)

7555806

$1.49

30

WASHER(10)

7555806

$1.49

31

BRAKE ASM,LINK.ROD (Incl. 31, 32, 34)

1910208

Unavailable

31

ROD, BRAKE Substituted by 1910208

5224648

Unavailable

32

NUT(10)

7546701

$3.99

33

CLEVIS,THREADED

7080545

$3.08

34

SPRING, EXHAUST(10)

7042031

$5.65

35

PIN, COTTER(10)

7661103

$4.99

36

CLEVIS(10) (US Only)

7661843

$2.39

37

BRAKE,FOOT,BLK

1910190-067

Unavailable

38

BUSHING-PEDAL PIVOT

5431107

$8.79

39

WASHER(10)

7555919

$4.99

40

COTTER PIN(10)

7661401

$1.49

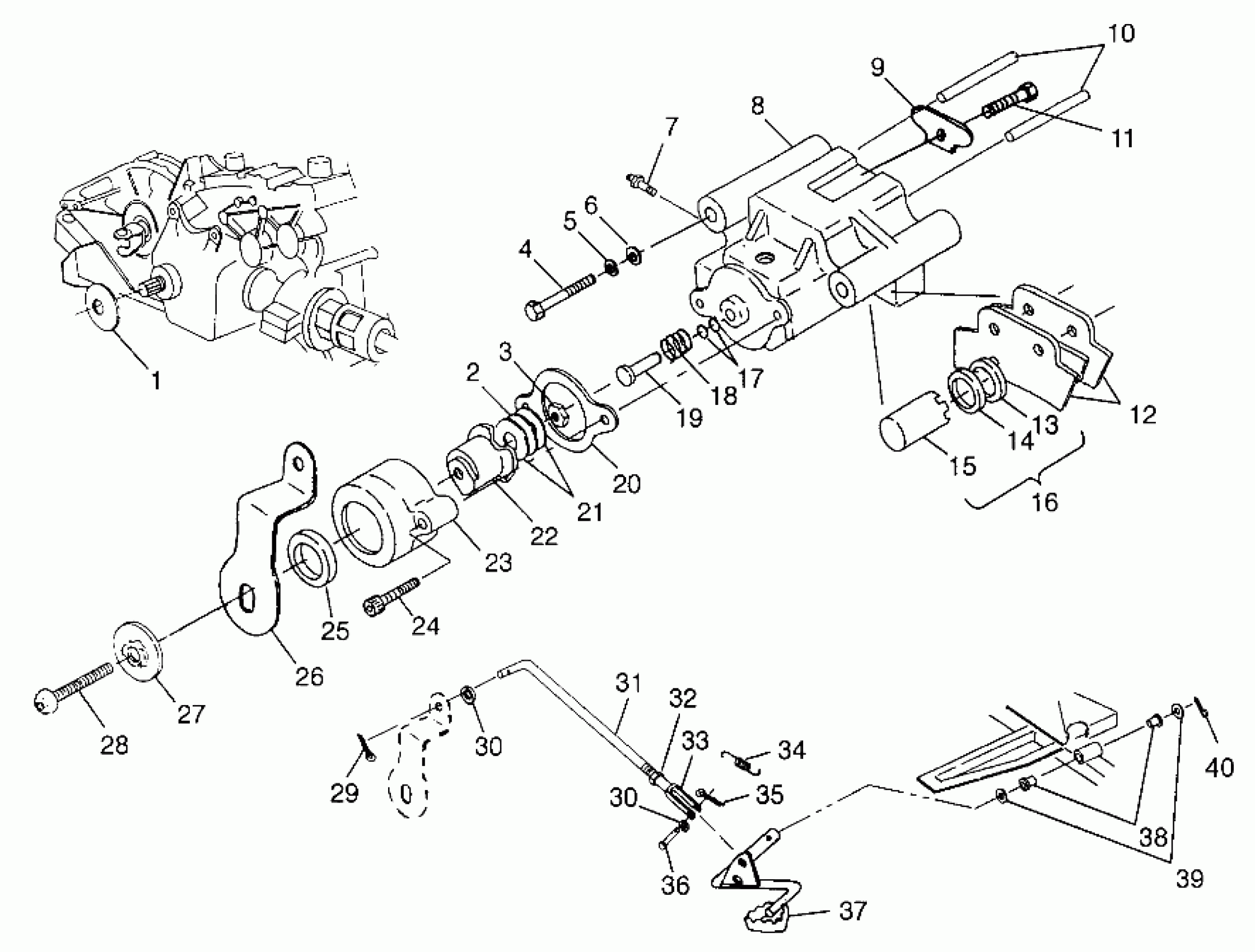

Polaris XPLORER 500 - W97CD50A REAR BRAKE XPLORER 500 W97CD50A (4941354135C007) Diagram
