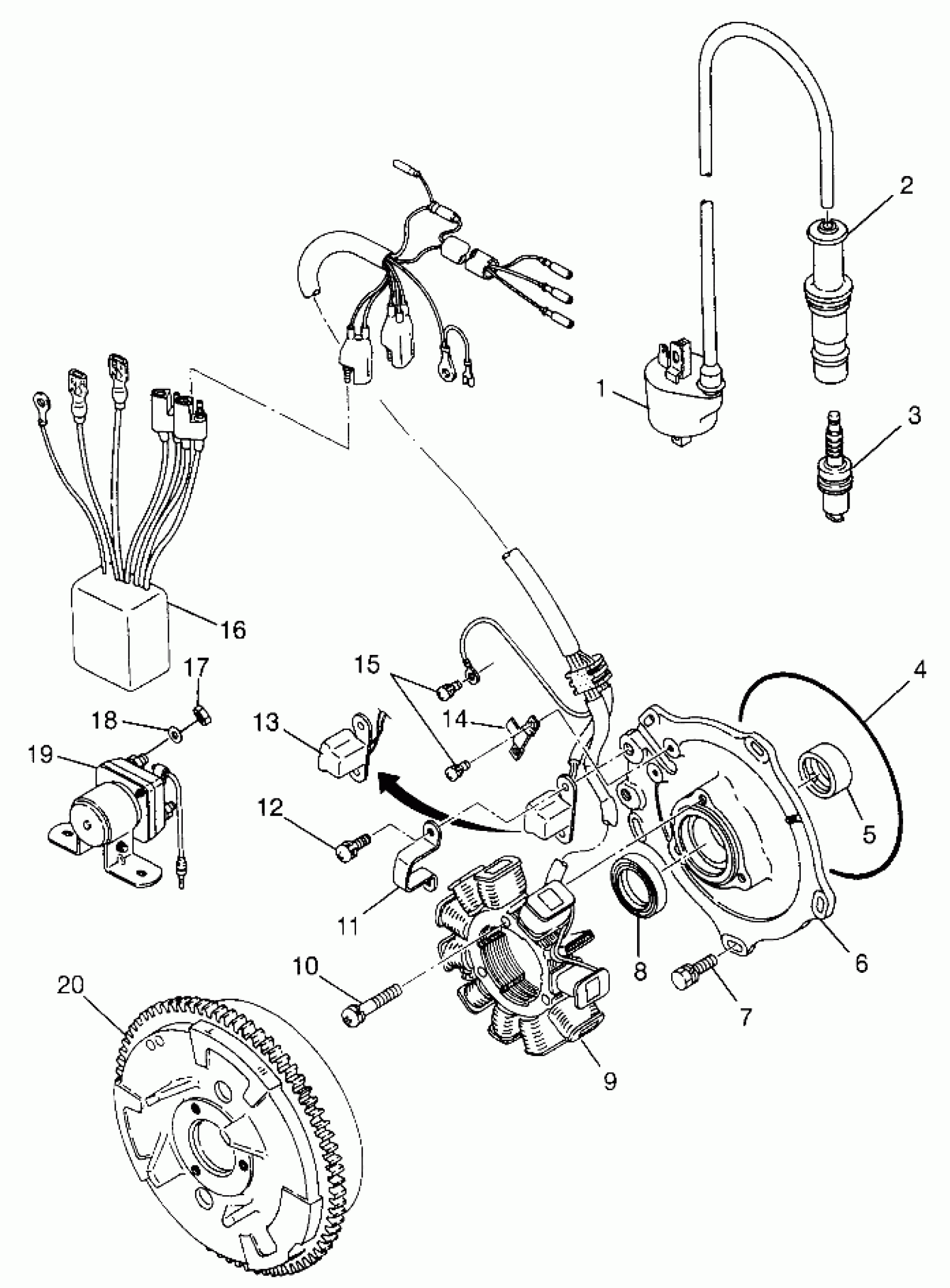

Polaris XPLORER 500 - W97CD50A MAGNETO XPLORER 500 W97CD50A (4941354135D013) Diagram

#

Description
Price

1

COIL,IGNITION (Incl. 1, 2)

3085227

Unavailable

1

COIL,IGNITION Substituted by 3085227

3085228

Unavailable

2

CAP, SPARKPLUG *

3084980

$59.99

3

SPARKPLUG, BKR5E(4)

3070175

$3.99

4

O-RING

3084978

$35.99

5

BEARING, METAL

3084972

Unavailable

6

Plate

3084971

Unavailable

6

PLATE ASM. Substituted by 3086859 (Incl. 5, 6, 8-15)

3084970

Unavailable

7

BOLT&WASHER ASM.

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

STATOR Substituted by 3086860 (Incl. 13)

3084974

Unavailable

10

SCREW&WASHER ASM(10)

3081342

$1.49

11

Band, Pulse

3085554

Unavailable

12

SCREW&WASHER ASM.

3084976

Unavailable

13

COIL,PULSER

3085360

Unavailable

14

Clamp

3084977

Unavailable

15

SCREW&WASHER ASM(10)

3081256

$3.19

16

CDI SYSTEM Substituted by 3085639

3085564

$265.70

17

Nut

3083073

$2.39

18

WASHER SPRING(10)

3080077

$2.39

19

SWITCH,MAGNETIC *

3085521

$60.70

20

FLYWHEEL,W/RING GEAR Substituted by 3086857

3084969

Unavailable
