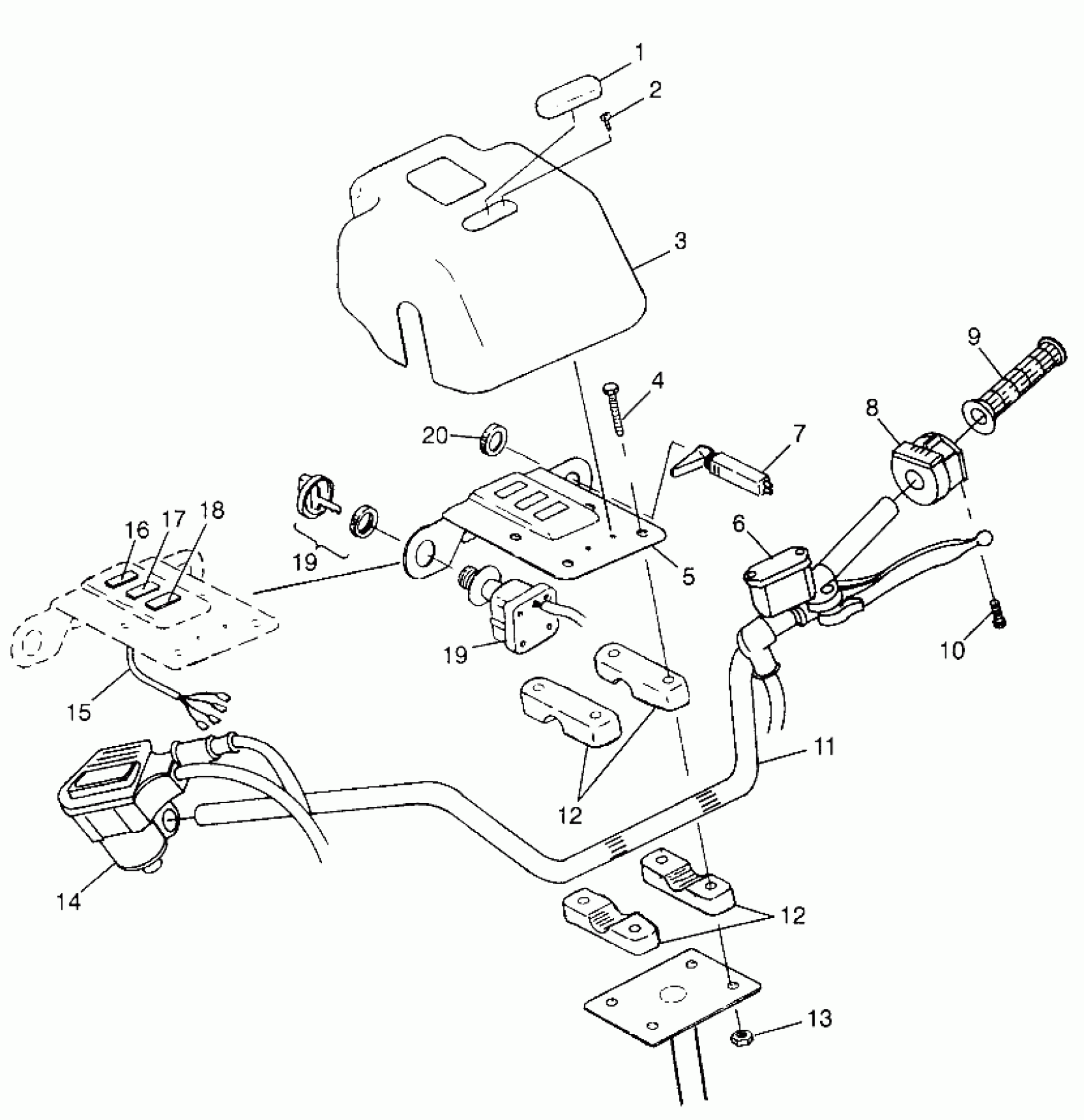

Polaris XPLORER 500 - W97CD50A HANDLEBAR - W97CD50A (4941354135B011) Diagram

#

Description
Price

1

COVER-LOGO, BLK

5432247-070

Unavailable

2

SCREW,(10)

7512024

$4.79

3

PANEL,INST.,BLK

5432246-070

Unavailable

4

Screw

7517216

Unavailable

5

BRKT,INST.PANEL,BLK

5241397-067

$24.79

6

Asm., Master Cylinder (See Pg. B10 for Details)

-------

Unavailable

7

KIT-CHOKE CONTROL

2200188

$24.27

7

CABLE,CHOKE CONTROL

7080579

$97.13

8

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

9

GRIP, HANDLEBAR

5431030

$24.27

10

SCREW

2010055

Unavailable

11

HANDLEBAR,TUBE,BLK

5224715-067

Unavailable

12

BLOCK,H'BAR,(300)

5630629

$11.59

12

BLOCK,H'BAR,(300)

5630629

$11.59

13

NUT-LOCK(10)

7542122

$1.49

14

Asm., Throttle Control (See Pg. B9, Ref. 5)

-------

Unavailable

15

HARNESS,CON.PANEL

2460614

Unavailable

16

INDIC"NEUT./REV."

4040054

$31.99

17

INDICATOR'HI-BEAM'WARN.

4040013

Unavailable

18

INDIC"HOT TEMPERATURE"

4040053

$31.99

19

COVER, KEY Substituted by 5433534

5431964

Unavailable

19

SWITCH, IGNITION (Incl. Key) (See Footnote) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110194

Unavailable

19

COVER, KEY Substituted by 5433534

5431964

Unavailable

19

SWITCH, IGNITION (Incl. Key) (See Footnote) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110194

Unavailable

20

Nut

7080229

$19.99
