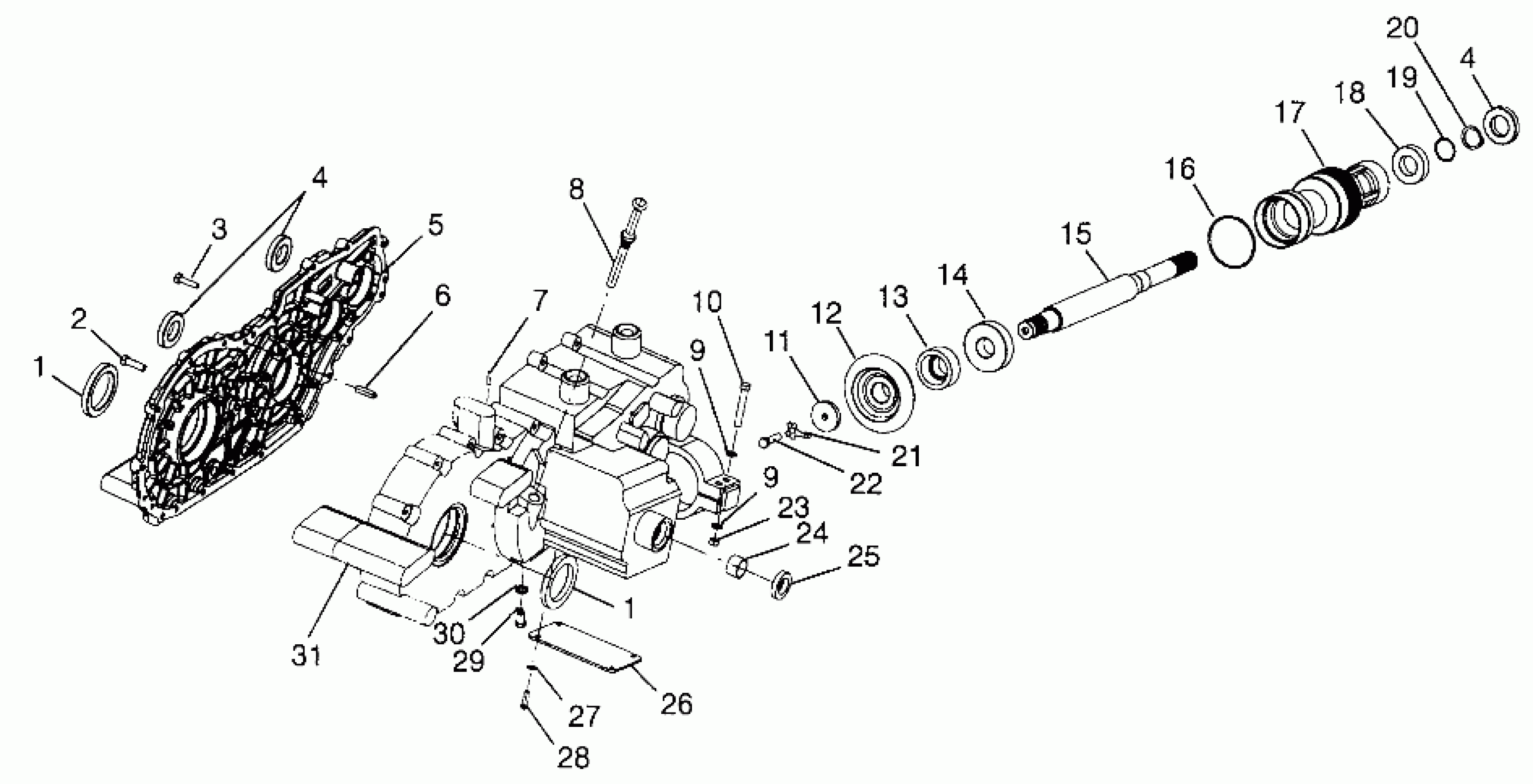

Polaris XPLORER 500 - W97CD50A GEARCASE (Cases and Snorkel) XPLORER 500 W97CD50A (4941354135C012) Diagram

#

Description
Price

1

Seal

3233256

Unavailable

1

Seal

3233256

Unavailable

2

Screw

3233252

$5.27

3

Screw

3233026

$6.46

4

Seal

3233248

$30.88

4

Seal

3233248

$30.88

5

GEARCASE,LH

3233245

Unavailable

6

PIN, DOWEL

3233247

$7.19

7

Vent

3233037

Unavailable

8

DIPSTICK ASM.

3233443

Unavailable

9

Washer, Flat (See Pg. A41, Ref. 10)

-------

Unavailable

9

Washer, Flat (See Pg. A41, Ref. 10)

-------

Unavailable

10

BOLT

3233442

$2.23

11

Washer

3233352

$1.83

12

GEAR,31T,(SNORKEL)

3233299

Unavailable

13

SPACER,SNORKEL

3233445

Unavailable

14

Bearing, Ball (See Pg. A41, Ref. 35)

-------

Unavailable

15

SHAFT,SNORKEL

3233446

Unavailable

16

O-Ring

3233302

Unavailable

17

SNORKEL

3233303

Unavailable

18

BEARING,BALL

3233305

$31.99

19

SPACER

3233357

$21.99

19

Spacer

3233355

$2.63

19

SPACER

3233353

$2.55

19

SPACER

3233354

$2.55

19

SPACER

3233356

$2.62

20

RING,RETAINING

3233306

$4.79

21

BOLT,LOCK SNORKEL GEAR

3233444

$2.39

22

Bolt

3233351

$1.99

23

NUT,FLEXLOCK

3233291

$3.03

24

Bushing

3233292

$31.99

25

Seal

3233293

Unavailable

26

PLATE,COVER

3233294

$11.59

27

WASHER,LOCK

3233295

$1.99

28

Screw

3233296

Unavailable

29

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

30

PLUG, WASHER

3233254

$7.99

31

GEARCASE,RH,TAPPED

3233441

Unavailable
