GEAR SELECTOR XPLORER 500 W97CD50A (4941354135D001)

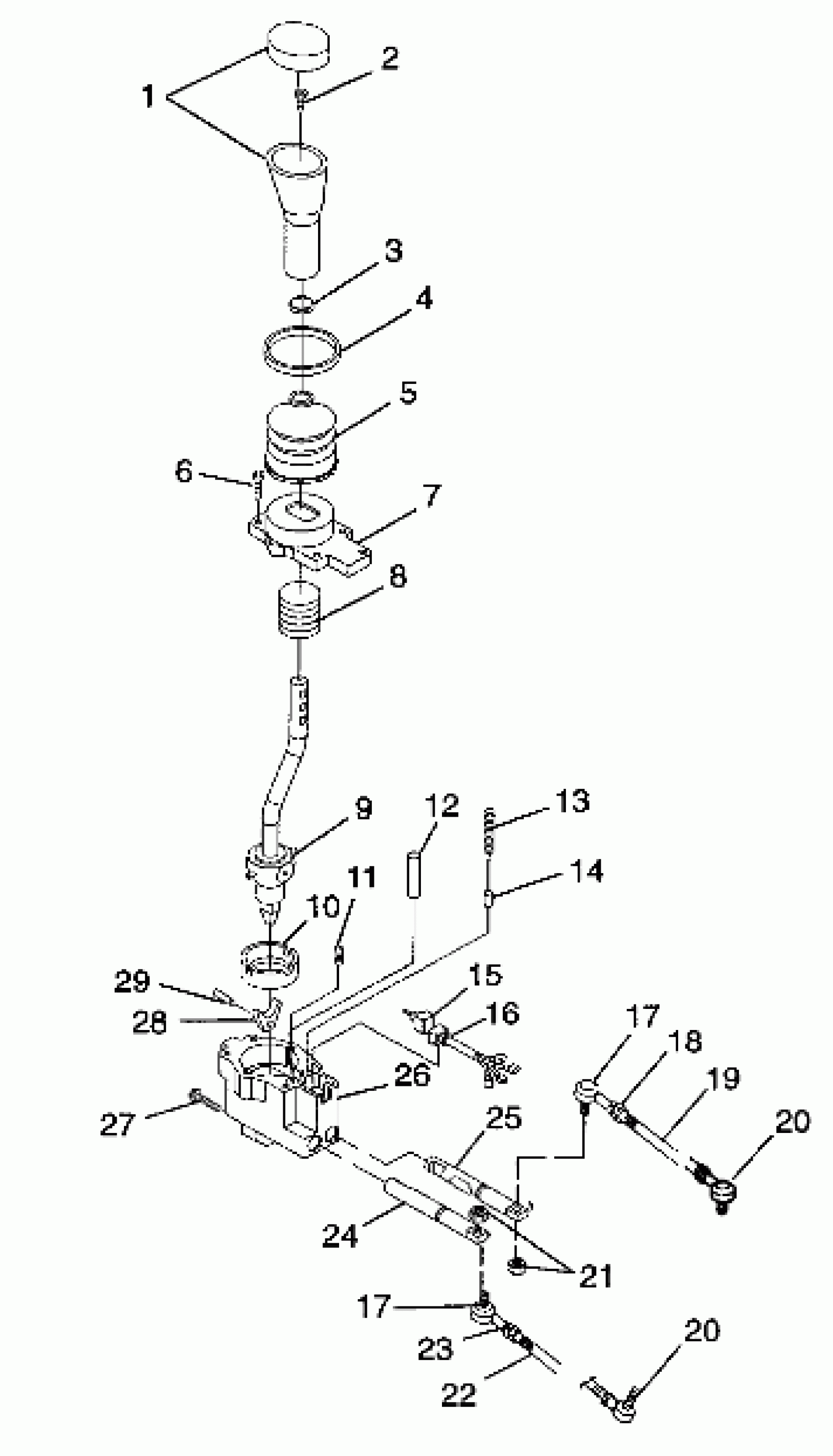

Polaris XPLORER 500 - W97CD50A GEAR SELECTOR XPLORER 500 W97CD50A (4941354135D001) Diagram
#
Description
Price
-
SELECTOR ASM,GEAR,500,LT (Incl. 1-16, 24-28)
1341215
Unavailable
1
KNOB ASM,HI/LO/REV. Substituted by 3233195-070
3233195
$49.99
2
SCREW,(10)
7512024
$4.79
3
Strap, Wire
3233131
$9.70
4
CLAMP
3233132
Unavailable
5
BOOT,GEAR SELECTOR
3233368
$74.79
6
SCREW Substituted by 3233498
3233085
Unavailable
7
COVER,GEARSELECT,5-BOLT
3233204
Unavailable
8
SPRING,HOLDING
3233158
Unavailable
9
HANDLE SUBASM,(GS MAGNUM)
3233227
Unavailable
10
CUP,BEARING
3233063
$15.99
11
SPRING,CENTERING
3233083
Unavailable
12
PIN, STOP
3233062
Unavailable
13
SPRING,DETENT
3233069
Unavailable
14
BULLET,DETENT
3233060
$64.99
15
SWITCH
3233371
$309.99
16
STRAP, WIRE
3233090
$2.86
17
ROD END,RH,6MM.
7061014
$65.99
17
ROD END,RH,6MM.
7061014
$65.99
18
NUT(10)
7546702
$1.49
19
ROD-SHIFT LINKAGE,HI RANGE
5020823
$63.99
20
ROD END,LH,6MM.
7061013
$65.99
20
ROD END,LH,6MM.
7061013
$65.99
21
NUT(10) Substituted by 7546703
7546707
Unavailable
22
ROD,SHIFT LINKAGE,LOW RANGE
5020824
$63.99
23
NUT(10)
7546701
$3.99
24
SLIDE ASM,LOW
3233312
Unavailable
25
SLIDE ASM,HIGH/REV
3233217
Unavailable
26
BODY,GEAR SELECTOR
3233343
Unavailable
27
SCREW(10)
7515181
$2.39
28
INTERLOCK,BUTTERFLY
3233084
Unavailable
29
PIN,INTERLOCK
3233070
Unavailable
