Description

Price

1

CAP, GAS, (BLACK)

5430725

$24.27

2

GASKET-GAS CAP

5810144

$5.59

3

SEAL-FOAM,21 IN

5811310

Unavailable

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

BOLT(10)

7512249

Unavailable

7

LOCK WASHER(10)

7552801

$1.59

8

WASHER(10)

7558301

$1.49

9

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

9

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

10

Spacer

5332457

Unavailable

11

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

12

FITTING,FUEL OUT,MAIN,4",Y

7052150

$27.99

13

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

15

FITTING,FUEL OUT,RES.,Z

7052149

$23.99

16

SCREW, S.S.(10)

7516302

$3.99

17

KNOB,FUEL VALVE

5432559

$10.39

18

NUT,FUELVALVE,ATV

5432733

Unavailable

19

VALVE,3-WAY

7052161

$39.99

20

FUELTANK ASM. Substituted by 2520144 (Incl. 5,12,15)

2511265

Unavailable

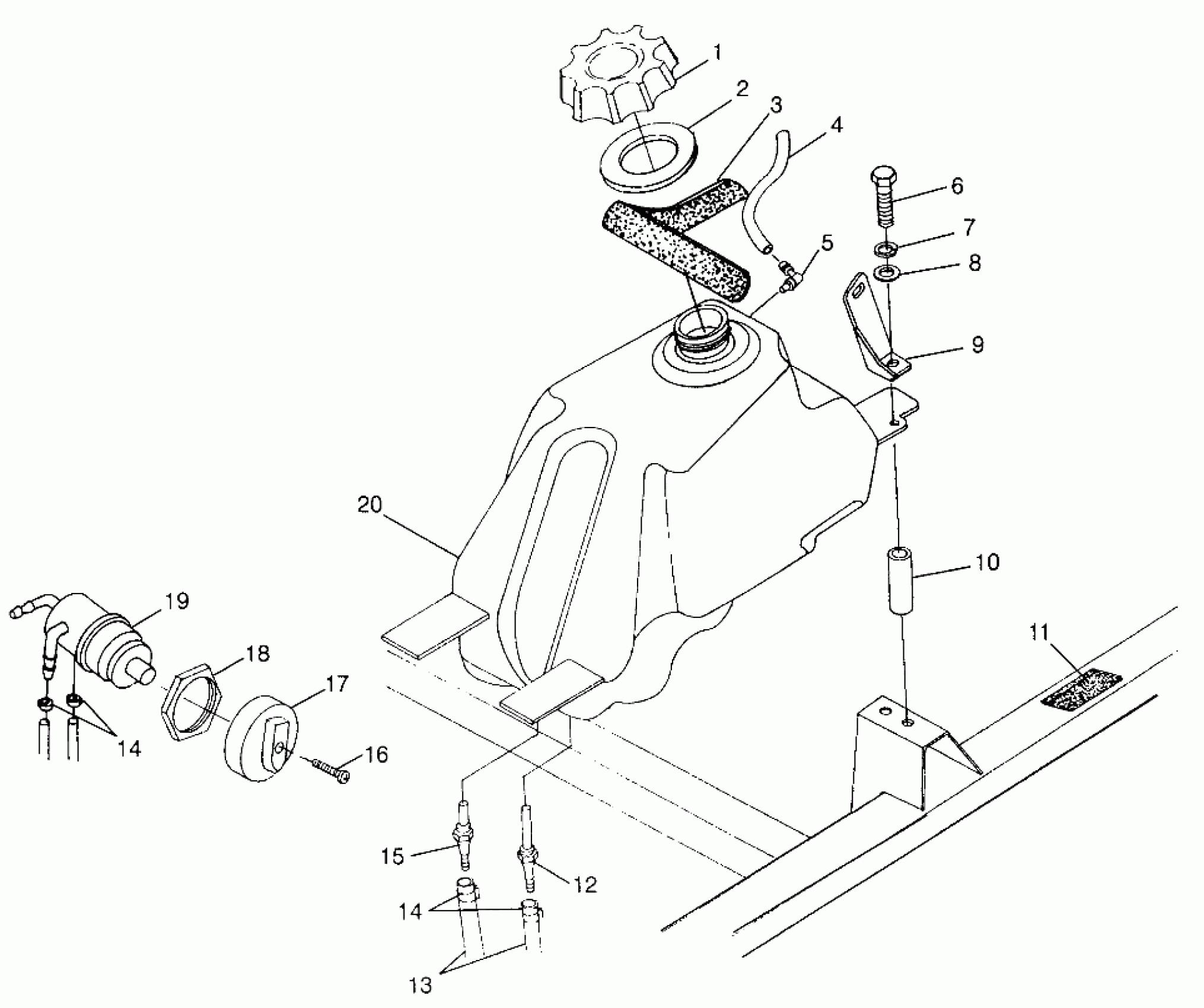

Polaris XPLORER 500 - W97CD50A FUEL TANK - W97CD50A (4941354135B001) Diagram

CAP, GAS, (BLACK)

GASKET-GAS CAP

SEAL-FOAM,21 IN

FUEL LINE,1/8 ID,600 CM.

Vent, Tank

BOLT(10)

LOCK WASHER(10)

WASHER(10)

BRKT,LH.R.FUELCOVER,BLK.

BRKT,RH.R.FUELCOVER,BLK.

Spacer

PAD,FUELTANK BRKT. Substituted by 8360026

FITTING,FUEL OUT,MAIN,4",Y

FUEL LINE,1/4 ID(600 CM.)

HOSE CLAMP, RED

HOSE CLAMP, RED

FITTING,FUEL OUT,RES.,Z

SCREW, S.S.(10)

KNOB,FUEL VALVE

NUT,FUELVALVE,ATV

VALVE,3-WAY

FUELTANK ASM. Substituted by 2520144 (Incl. 5,12,15)
