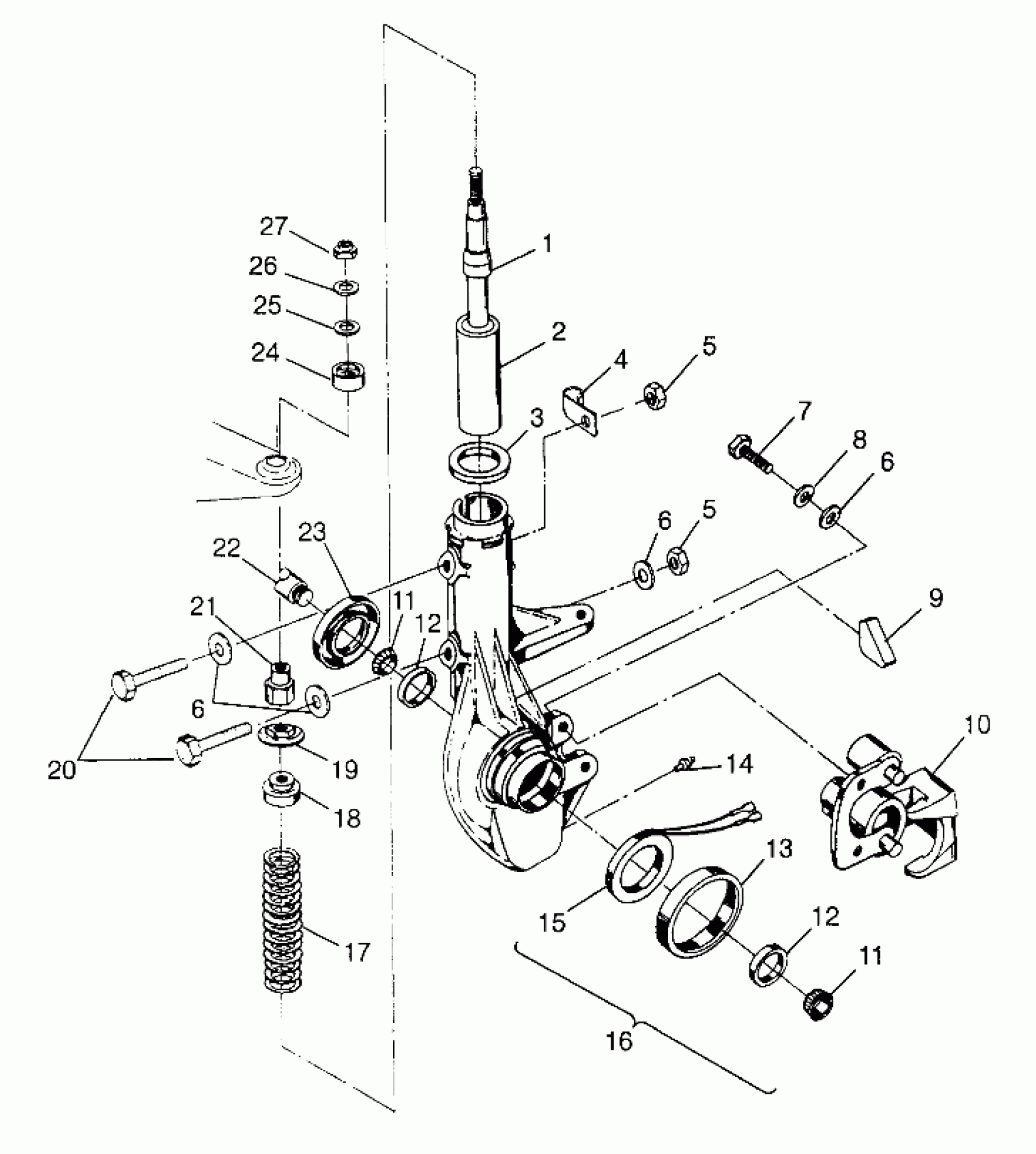

Polaris XPLORER 500 - W97CD50A FRONT STRUT - W97CD50A (4941354135B006) Diagram

#

Description
Price

1

BUMPER, STRUT Substituted by 5411468

5410791

Unavailable

2

STRUT,FRONT,32MM. Substituted by 7041755

7041374

Unavailable

3

WASHER-2.06X2.62X.105-Y

5211115

$3.99

4

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

5

NUT FLEX-LOC(10)

7542303

$6.39

5

NUT FLEX-LOC(10)

7542303

$6.39

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

SCREW, CAP(10)

7512365

$1.49

8

LOCK WASHER(10)

7552901

$1.49

9

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

10

Asm., Front Brake Caliper, RH (See Pg. B8 for Details)

-------

Unavailable

11

BEARING,TAPERED ROLLER

3554509

$23.99

11

BEARING,TAPERED ROLLER

3554509

$23.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

13

SLEEVE,STRUT HUB SEAL

5222193

$59.99

14

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

15

COIL,MAGNETIC,HEAVY Substituted by 2201313

4170007

$121.41

16

HUBSTRUT ASM,RH,HVY Substituted by 2201312 (32mm)(Incl. 9,12-15,23)

2200767

Unavailable

16

HUBSTRUT ASM,LH,HVY Substituted by 2201311 (32mm)(Incl. 9,12-15,23)

2200766

Unavailable

17

SPRING,COIL,FR,SHOCK,BLK.

7041375-067

$79.99

18

RETAINER,SPRING,TOP

5220602

Unavailable

19

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

20

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

21

SPACER,THREADED

5130668

$27.99

22

Asm., Drive Shaft Neapco (See Pg. B3, Ref. 12)

-------

Unavailable

23

SEAL, HUB STRUT

3610028

$31.99

24

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

25

SPACER-RUBBER

5810291

$3.99

26

WASHER(10)

7555749

$1.49

27

NUT,FLEX LOC(10)

7542507

$3.99
