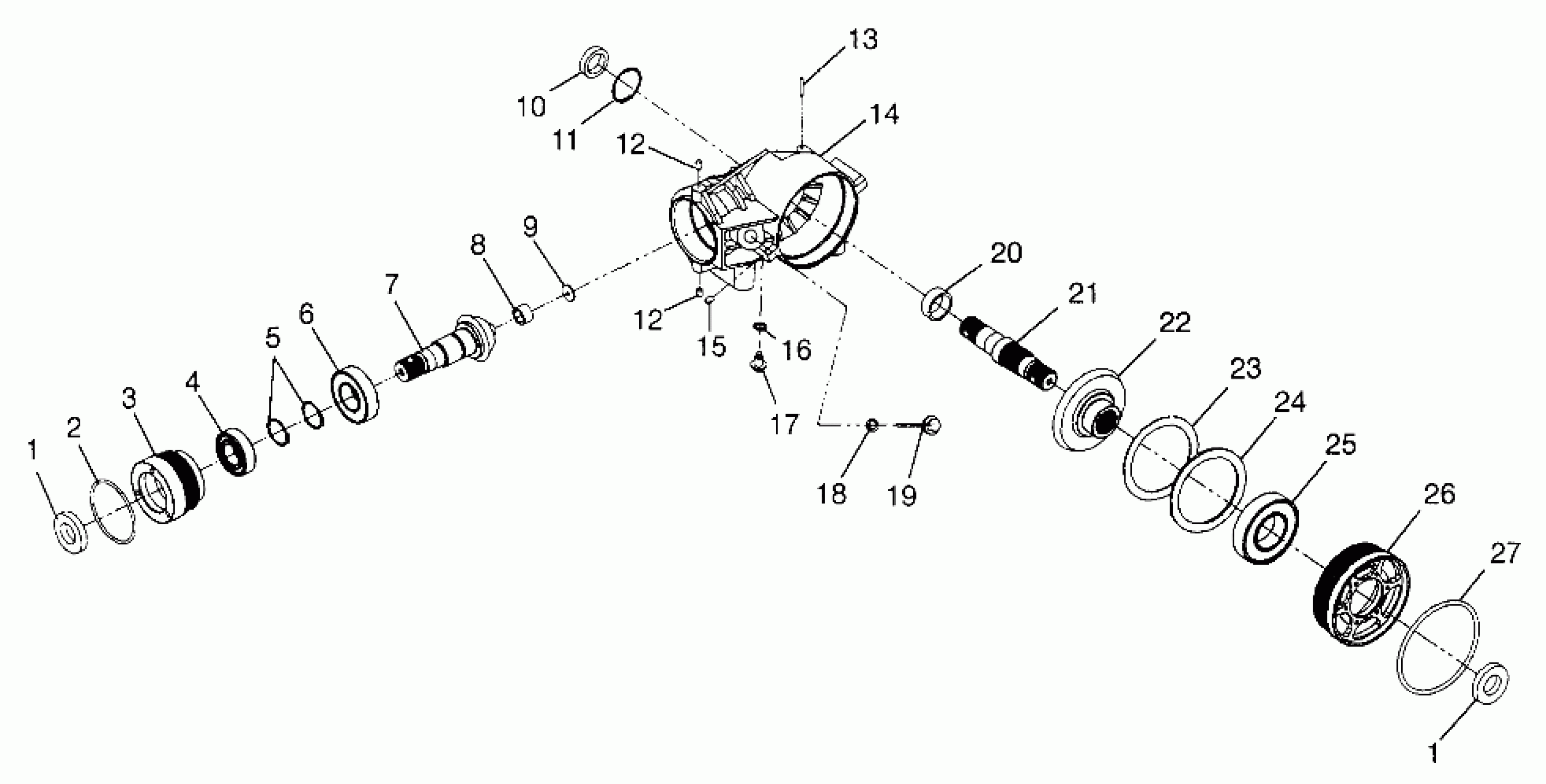

Polaris XPLORER 500 - W97CD50A FRONT HOUSING XPLORER 500 W97CD50A (4941354135C011) Diagram

#

Description
Price

-

GEARCASE ASM,FRONT Substituted by 1341257 (Incl. 1-27)

1341154

$1,204.99

1

Seal

3233248

$30.88

1

Seal

3233248

$30.88

2

O-RING

3233315

Unavailable

3

COVER,F.HSG INPUT

3233316

Unavailable

4

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

RING,RETAINING

3233306

$4.79

6

BEARING

3233020

$47.99

7

SHAFT,INPUT,FR.HSG.

3233317

Unavailable

8

BEARING,NEEDLE

3233318

Unavailable

9

WASHER

3233344

Unavailable

10

Seal

3233319

$27.99

11

RING,RETAINING

3233320

Unavailable

12

SCREW

3233321

$1.90

12

SCREW

3233321

$1.90

13

Vent

3233037

Unavailable

14

HSG,FRONT,GEARCASE

3233323

Unavailable

15

RIVET

3233463

Unavailable

16

PLUG, WASHER

3233254

$7.99

17

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

18

Washer

3233324

$8.99

19

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

20

BEARING,NEEDLE

3233326

Unavailable

21

SHAFT,O/P,FR.HSG.

3233327

Unavailable

22

GEAR,31T,FRT.HSG.

3233328

$160.82

23

WASHER,THRUST

3233346

Unavailable

24

WASHER,THRUST

3233347

Unavailable

25

BEARING,BALL

3233329

Unavailable

26

COVER,FR.HSG,OUTPUT

3233330

Unavailable

27

O-RING

3233331

Unavailable
