Description

Price

-

KIT-BOOT,FRONT BRAKE

1930642

Unavailable

-

CALIPER ASM,LH,FR.BRAKE Substituted by 1910309 (Incl. 1-11)

1910234

Unavailable

-

CALIPER ASM,RH,FR.BRAKE Substituted by 1910310 (Incl. 1-11)

1910235

Unavailable

1

SCREW,BLEEDER

7080352

$3.19

2

SETSCREW,SKT.HD.(10)

7515489

$5.59

3

CALIPER,LH,BRAKE,MACH. Substituted by 5131261

5131115

Unavailable

3

CALIPER,RH,BRAKE,MACH. Substituted by 5131262

5131116

Unavailable

4

SQUARE RING-MOLDED (.094) (.094)

5410779

$10.51

5

RING,SQUARE,MOLDED (.103 x .134)

5410780

$10.51

6

PISTON, CALIPER Substituted by 5132294

5020506

Unavailable

7

INSULATOR,CALIPER,FR. Substituted by 5132294

5910026

$54.04

8

PISTON & SEAL,KIT (Incl. 4-7)

1930665

$55.99

9

KIT,BRAKEPAD,FRONT

2200465

$47.99

9

KIT,FR.BRAKEPAD,HVY.DUTY

2200901

$55.99

10

MT.ASM, CALIPER

1910056

Unavailable

11

Boot, Bushing

5410495

Unavailable

12

Boot, Pin Seal

5410494

Unavailable

13

Washer (See Pg. B6, Ref. 6)

-------

Unavailable

14

Washer, Spring Lock (See Pg. B6, Ref. 8)

-------

Unavailable

15

Bolt (See Pg. B6, Ref. 7)

-------

Unavailable

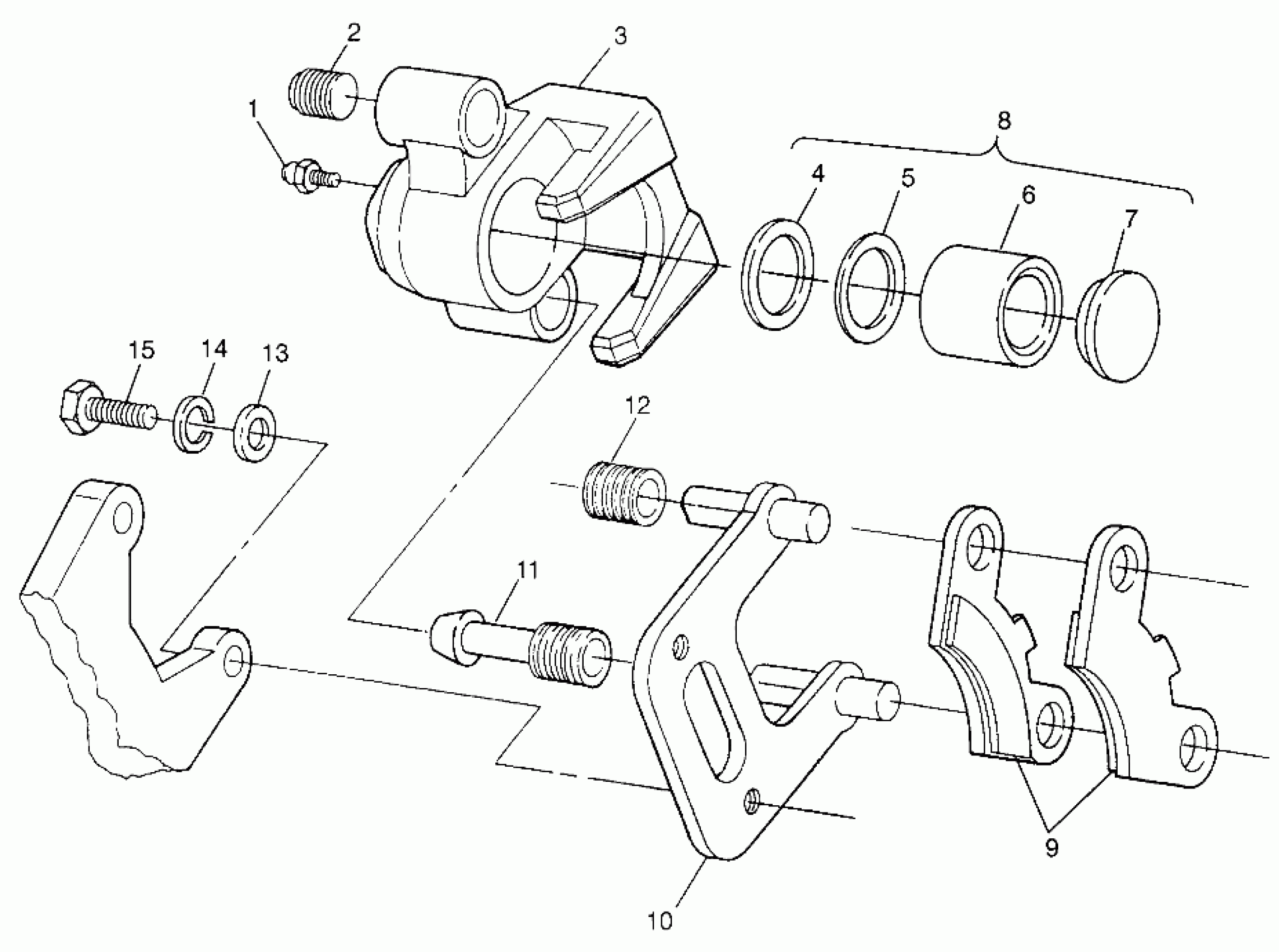

Polaris XPLORER 500 - W97CD50A FRONT BRAKE - W97CD50A (4941354135B008) Diagram

KIT-BOOT,FRONT BRAKE

CALIPER ASM,LH,FR.BRAKE Substituted by 1910309 (Incl. 1-11)

CALIPER ASM,RH,FR.BRAKE Substituted by 1910310 (Incl. 1-11)

SCREW,BLEEDER

SETSCREW,SKT.HD.(10)

CALIPER,LH,BRAKE,MACH. Substituted by 5131261

CALIPER,RH,BRAKE,MACH. Substituted by 5131262

SQUARE RING-MOLDED (.094) (.094)

RING,SQUARE,MOLDED (.103 x .134)

PISTON, CALIPER Substituted by 5132294

INSULATOR,CALIPER,FR. Substituted by 5132294

PISTON & SEAL,KIT (Incl. 4-7)

KIT,BRAKEPAD,FRONT

KIT,FR.BRAKEPAD,HVY.DUTY

MT.ASM, CALIPER

Boot, Bushing

Boot, Pin Seal

Washer (See Pg. B6, Ref. 6)

Washer, Spring Lock (See Pg. B6, Ref. 8)

Bolt (See Pg. B6, Ref. 7)
