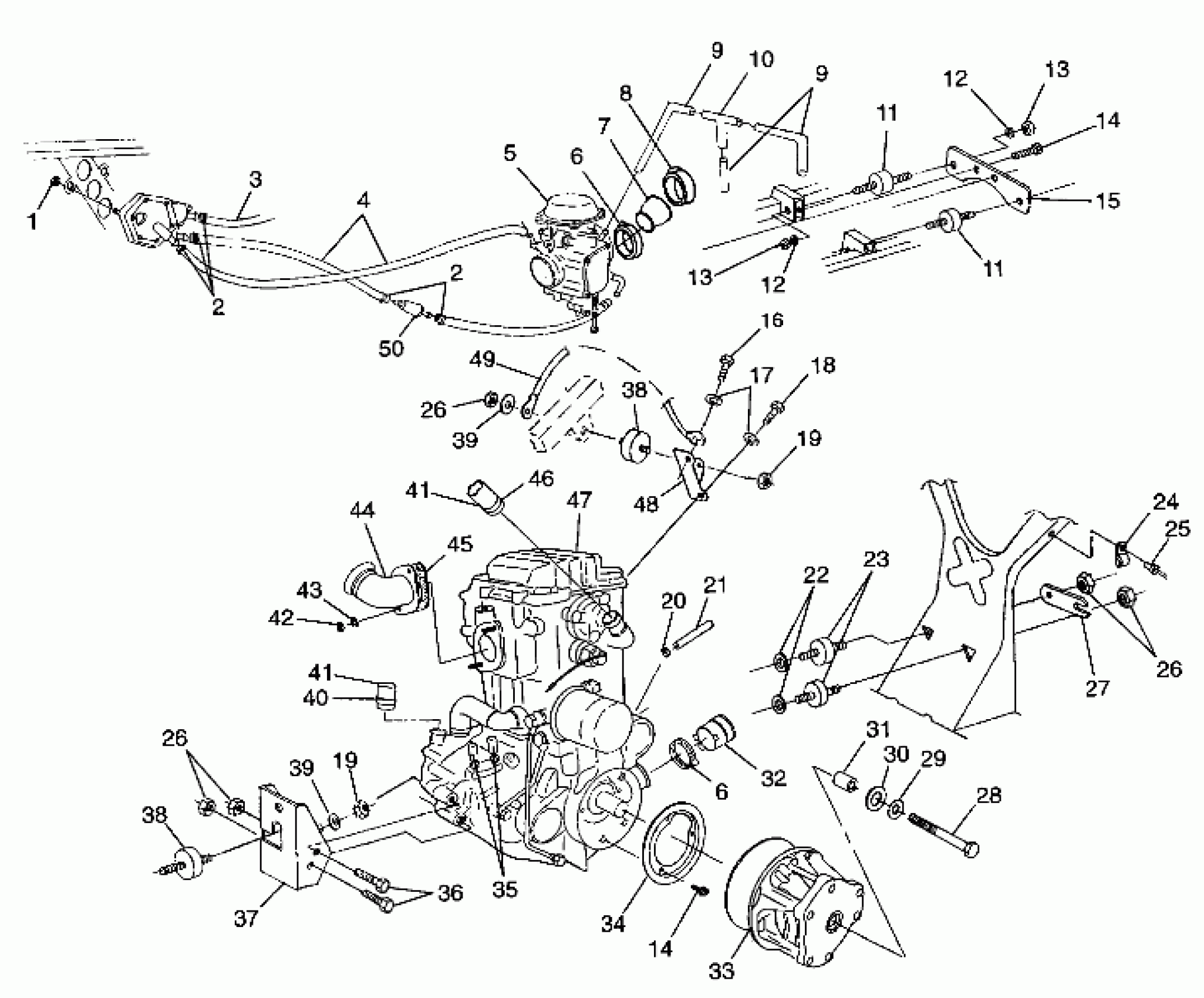

Polaris XPLORER 500 - W97CD50A ENGINE MOUNTING XPLORER 500 W97CD50A (4941354135A011) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

3

HOSE,(.25 IDX1.75"LG.)

5811490

Unavailable

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

5

Asm., Carburetor (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

6

CLAMP, NARROW BAND(10)

7080511

$4.79

6

CLAMP, NARROW BAND(10)

7080511

$4.79

7

BOOT,CARB

5410995

Unavailable

8

CLAMP,BAND,NARROW

7080656

Unavailable

9

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

9

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

10

FITTING, TEE

7052075

$9.59

11

MOUNT,CARB,RUBBER

3110071

$27.99

11

MOUNT,CARB,RUBBER

3110071

$27.99

12

WASHER(10)

7552605

$5.27

12

WASHER(10)

7552605

$5.27

13

NUT HEX(10)

7542105

$3.99

13

NUT HEX(10)

7542105

$3.99

14

Screw and Washer (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

14

Screw and Washer (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

15

STRAP,CARB.MT,BLK.

5211626-067

Unavailable

16

BOLT(10)

7512232

$1.49

17

LOCK WASHER(10)

7552901

$1.49

18

BOLT(10)

7512315

$4.79

19

NUT LOCK(10)

7542403

$3.99

19

NUT LOCK(10)

7542403

$3.99

20

CLAMP,HOSE,SPRING

7080694

$6.53

21

HOSE,BREATHER

5411306

Unavailable

22

WASHER, FLAT(10)

7555815

$3.99

23

MOUNT,RUBBER,FRONT

3110046

Unavailable

24

CLAMP,NYLON,CABLE(10)

7080539

$4.79

25

RIVET(50)

7621462

$1.49

26

NUT LOCK(10)

7542411

$3.19

26

NUT LOCK(10)

7542411

$3.19

26

NUT LOCK(10)

7542411

$3.19

27

STRAP,FRAME SUPPORT,BLK

5224658-067

Unavailable

28

BOLT(10)

7512566

$30.79

29

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

30

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

31

BUSHING-.437 X.770 X.50

5430261

$7.19

32

BOOT,CLUTCH INTAKE

5410421

$11.19

33

Asm., Drive Clutch, ATV-06 (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

34

Bracket, Retainer, Seal (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

35

CLAMP-HOSE,.875-SS

7080474

$8.40

36

DESC NOT_AVAILABLE

7512438

Unavailable

37

MOUNT,FR.ENGINE,BLK.

5241150-067

Unavailable

38

MOUNT,RUBBER,TOP

3110044

Unavailable

38

MOUNT,RUBBER,TOP

3110044

Unavailable

39

WASHER(10)

7555801

$3.99

39

WASHER(10)

7555801

$3.99

40

CLAMP,HOSE,(10)

7080614

$7.19

41

HOSE, WATER Substituted by 8450050-305

8450050-63

Unavailable

41

HOSE, WATER Substituted by 8450050-305

8450050-63

Unavailable

42

NUT(10)

3080285

Unavailable

43

WASHER LOCK ,(10)

3080530

$3.19

44

MANIFOLD,BLK

1260771-029

Unavailable

45

Gasket, Exhaust (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

46

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.59

47

ENG.(S.B.)EH50PLE-01 Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

3085556

Unavailable

48

MOUNT,ENG,TOP,BLK

5241453-067

Unavailable

49

CABLE,GND-ENGINE

4010132

Unavailable

50

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
