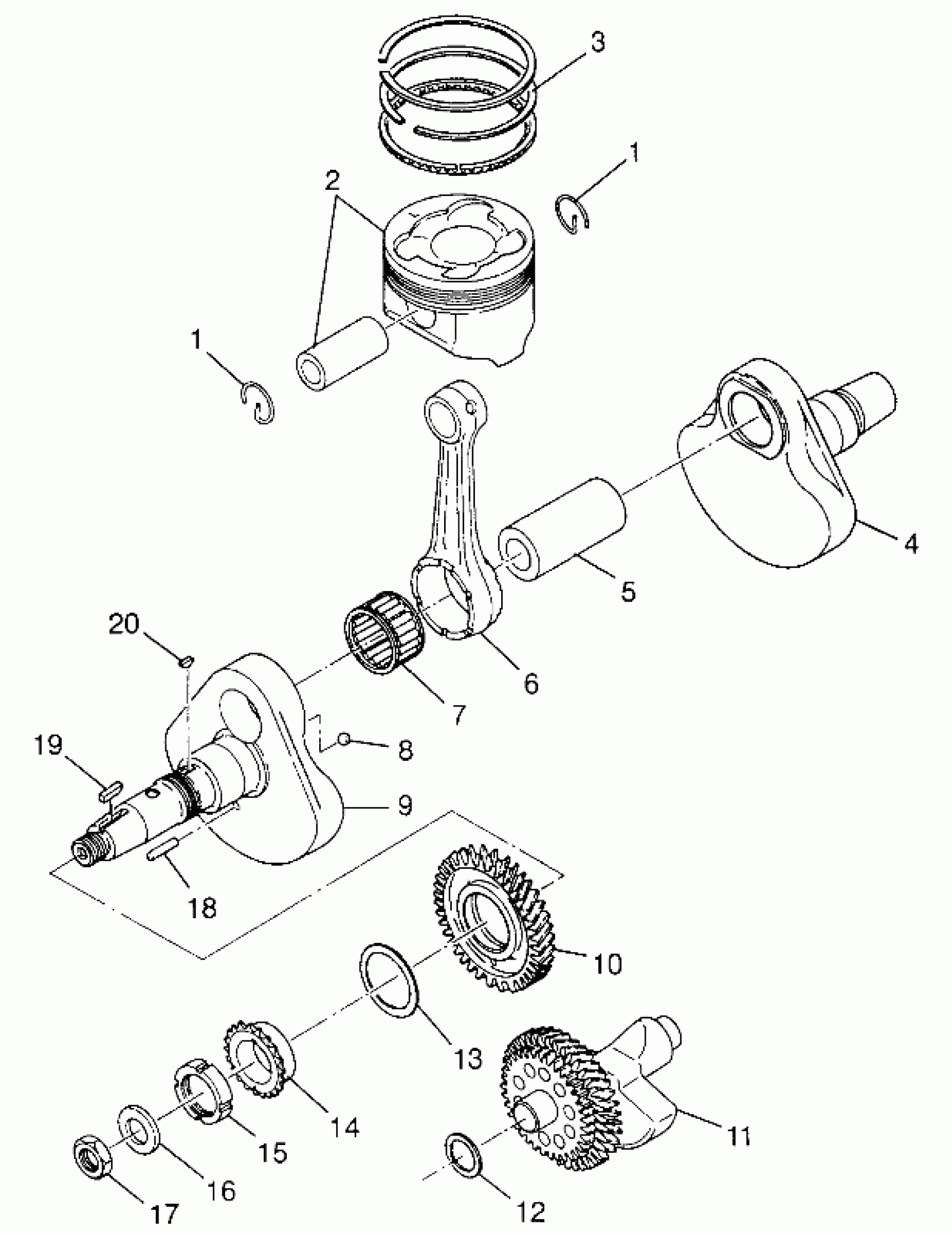

Polaris XPLORER 500 - W97CD50A CRANKSHAFT and PISTON XPLORER 500 W97CD50A (4941354135D005) Diagram

#

Description
Price

1

CLIP(10)

3085534

Unavailable

1

CLIP(10)

3085534

Unavailable

2

PISTON&PIN ASM,STD Substituted by 3085635 (Std) (Incl. 3)

3085530

Unavailable

2

PISTON&PIN ASM,(.25 O/S) Substituted by 3085867 (.010"/0.25mm O/S) (Incl. 3)

3085531

Unavailable

2

PISTON&PIN ASM,(.50 O/S) Substituted by 3085868 (.020"/0.50mm O/S) (Incl. 3)

3085532

Unavailable

3

RING SET,(STD) * (Std)

3085379

Unavailable

3

RING SET,(.25MM/.010 OS) (.010"/0.25mm O/S)

3085380

Unavailable

3

RING SET,(.50MM/.020 OS) (.020"/0.50mm O/S)

3085381

Unavailable

4

CRANKSHAFT#2,PTO SIDE

3085374

$338.29

5

Pin, Crank

3085341

Unavailable

6

ROD,CONNECTING

3085376

$175.99

7

BEARING,LARGE END Substituted by 3085343

3085400

$78.56

8

BALL, STEEL

3085024

$5.59

9

CRANKSHAFT#1,MAG SIDE

3085373

Unavailable

9

CRANKSHAFT ASM. (Incl. 4-10, 18)

3085399

Unavailable

10

GEAR,BALANCER #1 Substituted by 3085852

3085401

Unavailable

11

SHAFT,BALANCER *

3085404

Unavailable

12

SPACER (1.2)

3084897

$6.39

12

SPACER (0.8)

3084895

$6.39

12

SPACER (1.0)

3084896

$6.39

13

SPACER (1.2)

3084894

$19.99

13

SPACER (0.6)

3240088

$10.39

13

SPACER (1.0)

3084893

$19.99

13

SPACER (0.8)

3084892

$12.79

14

SPROCKET 1

3084882

Unavailable

15

NUT,SLIT

3085528

$35.99

16

WASHER Substituted by 3086767

3083904

Unavailable

17

LOCKNUT

3083905

Unavailable

18

Pin, Dowel

3085346

Unavailable

19

KEY

3081447

Unavailable

20

KEY Substituted by 3081543

3080130

Unavailable
