COOLING SYSTEM XPLORER 500 W97CD50A (4941354135A013)

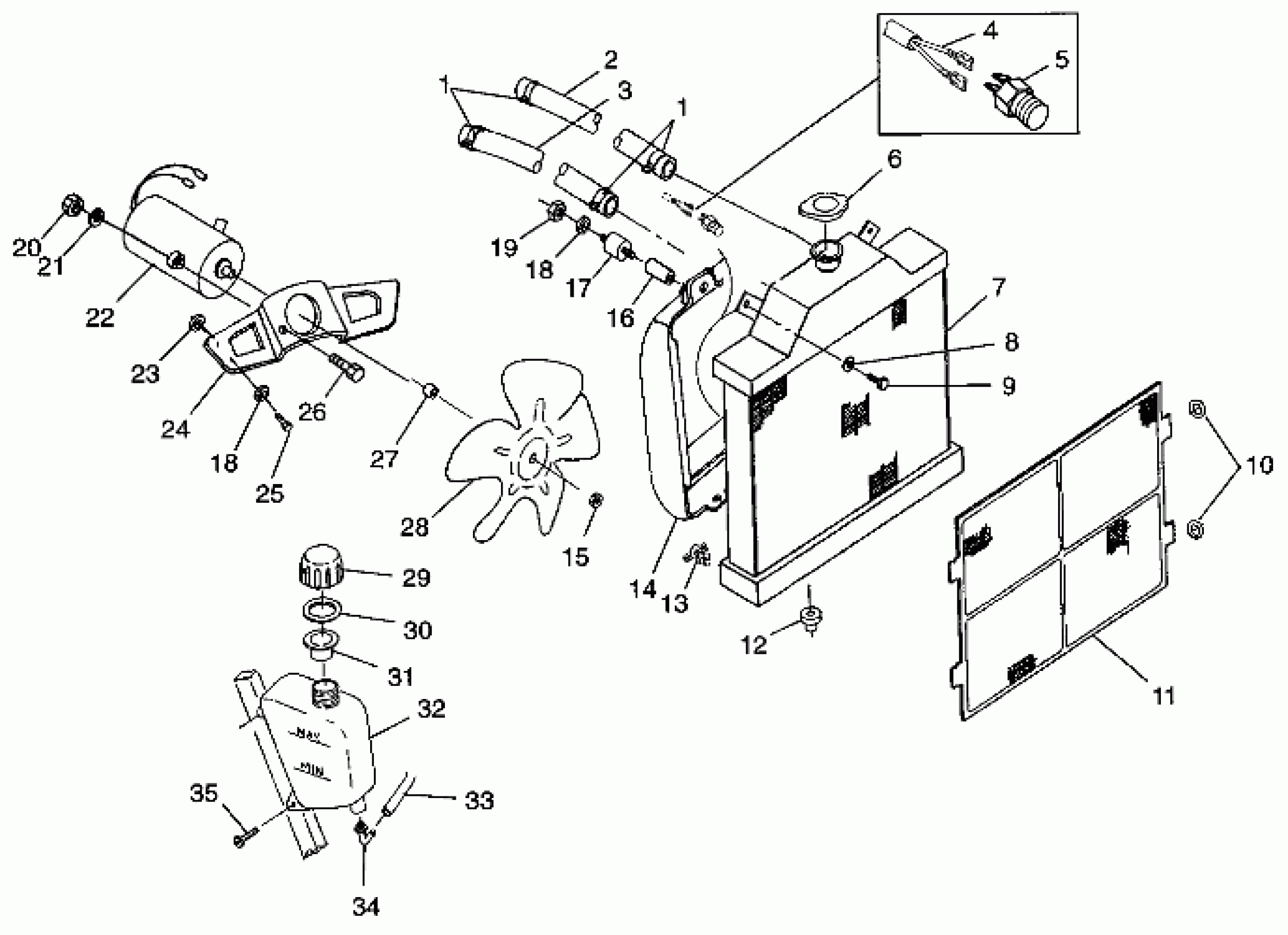

Polaris XPLORER 500 - W97CD50A COOLING SYSTEM XPLORER 500 W97CD50A (4941354135A013) Diagram
#
Description
Price
1
CLAMP,HOSE,(10)
7080614
$7.19
1
CLAMP,HOSE,(10)
7080614
$7.19
2
HOSE,3/4X22"
5411410
Unavailable
3
HOSE-LOWER ENGINE
5411072
Unavailable
4
HARNESS,FAN/THERM.SWITCH
2460515
Unavailable
5
SWITCH,THERMAL,FAN,L/C
4110225
Unavailable
6
CAP, RADIATOR Substituted by 2511270
2511189
Unavailable
7
RADIATOR,"U"FLOW
1240015
Unavailable
8
WASHER(10)
7552605
$5.27
9
SCREW(10)
7512113
$3.99
10
O RING
5410607
$5.99
11
COVER,RADIATOR,W/MESH
5431760
Unavailable
12
BUSHING-MOUNT,LOWER RADIATOR
5410584
$5.59
13
VALVE,DRAIN COCK
7052181
Unavailable
14
SHROUD, FAN,(ATV) Substituted by 5432593
5432356
Unavailable
15
NUT
7542154
Unavailable
16
Spacer, Mount
5020572
$8.79
17
Mount, Rubber
3110032
$7.99
18
WASHER(10)
7558301
$1.49
18
WASHER(10)
7558301
$1.49
19
NUT-LOCK(10)
7542122
$1.49
20
NUT(10)
7541915
Unavailable
21
WASHER, FLAT(10)
7558201
$5.79
22
MOTOR,FAN,LIQ.COOLED (Domestic) (Incl. 15, 27)
4170009
Unavailable
23
Nut
7547004
$4.79
24
BRKT.COOL.FAN,BLK
5241355-067
Unavailable
25
BOLT(10)
7512232
$1.49
26
SCREW(10)
7511875
$4.79
27
SPACER
5333457
Unavailable
28
BLADE, FAN
5240822
$57.59
29
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
30
GASKET-OVERFLOW CAP
5810279
$2.41
31
PLUG,CAP Substituted by 5433774
5431895
Unavailable
32
Tank, Surge
5431673
Unavailable
33
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
34
FITTING,90 DEGREE
7052065
$7.19
35
SCREW(10)
7512084
$1.49
