CONTROLS - MASTER CYLINDER/BRAKE LINE - W97CD50A (4941354135B010)

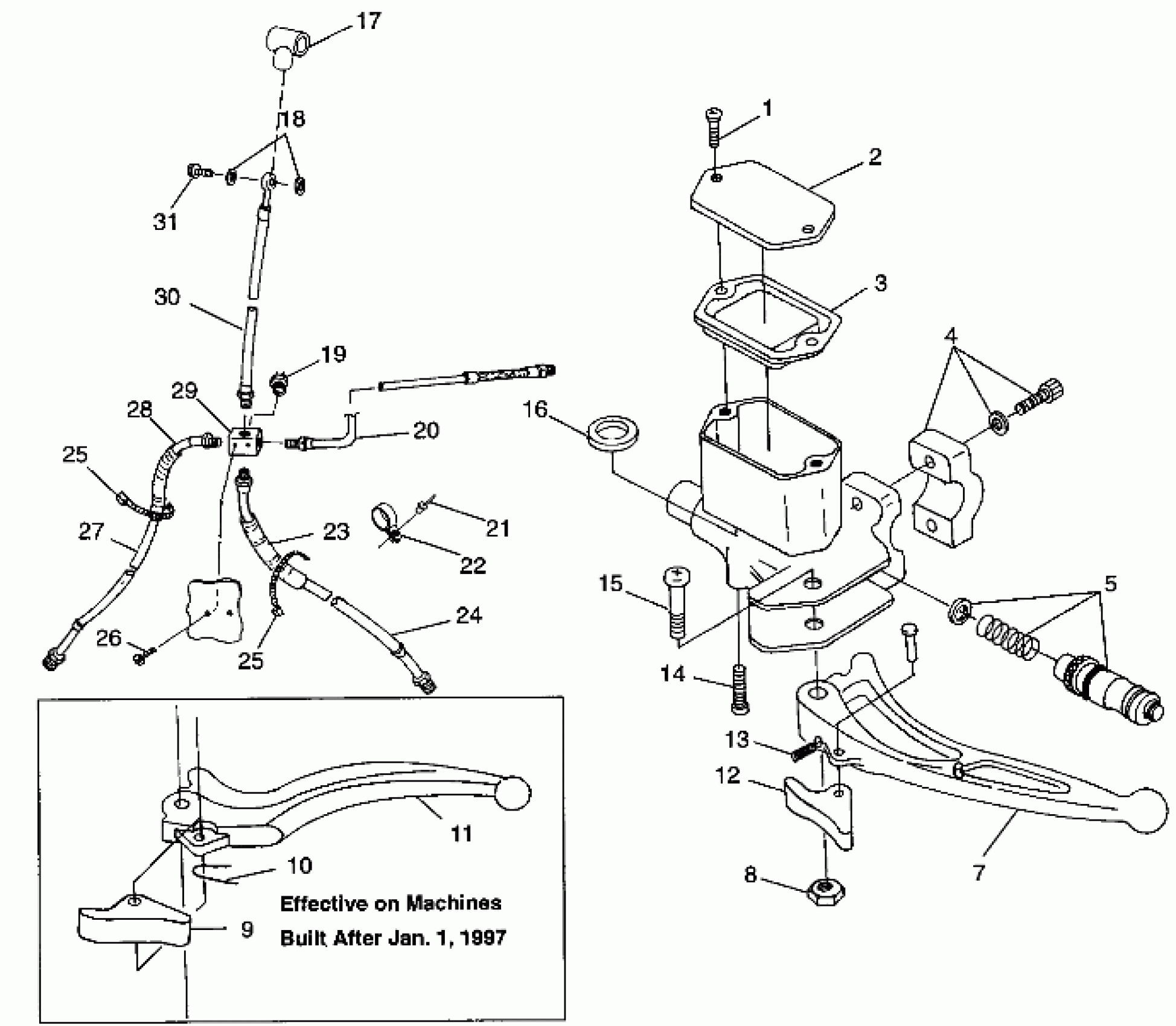

Polaris XPLORER 500 - W97CD50A CONTROLS - MASTER CYLINDER/BRAKE LINE - W97CD50A (4941354135B010) Diagram
#
Description
Price
-
MASTER CYL.ASM,3/4"BANJO (Incl. 1-16)
2050078
Unavailable
-
KIT,MASTER CYL RES. (Incl. 1-3,16)
2200809
Unavailable
1
KIT,BOLT(2),RES.CAP,MCYL
1930797
$11.19
2
CAP,M.CYL.RES.
1930796
Unavailable
3
DIAPHRAGM,M.CYL.RES.
1930795
$44.51
4
KIT,M.CYL.CLAMP
2200808
Unavailable
5
KIT,M.CYL.REBUILD Substituted by 1930799
2200810
$89.03
7
KIT,M.CYL LEVER Substituted by 2201034 (Incl. 6,8,10)
2200811
$61.77
8
NUT,M.CYL.HANDLE PIVOT
1930806
Unavailable
9
KIT,LEVER,PARKBRAKE
2201090
$40.46
10
SPRING, FLAT
-------
Unavailable
11
KIT,LEVER (Incl. 6,9,10,11)
2201034
$63.99
12
LEVER,PARKBRAKE Substituted by 2201034
1930802
$61.77
13
SPRING,PARKING BRAKE Substituted by 2201034
1930803
$61.77
14
BOLT,MCYL.RESERVOIR,KIT
1930792
$23.99
15
BOLT,M.CYL.HANDLE PIVOT
1930805
Unavailable
16
Ring, Square, Master Cylinder, Res.
-------
Unavailable
17
BOOT,BRAKELINE,RUBBER
5411297
$2.07
18
Seal
5410988
$4.84
19
SWITCH,STOPLIGHT
4110164
Unavailable
20
LINE,REAR BRAKE
1930770
Unavailable
21
RIVET(50)
7621462
$1.49
22
CLAMP,NYLON,CABLE(10)
7080539
$4.79
23
CONDUIT, 30 CM. Substituted by 8360011-34
8360031-30
Unavailable
24
LINE,BRAKE,LH,FR,W/FITTINGS
1930752
$87.99
25
STRAP, BLK
7080272
Unavailable
25
STRAP, BLK
7080272
Unavailable
26
SCREW,(10)
7512024
$4.79
27
CONDUIT, 38 CM.
8360031-38
$2.63
28
LINE,BRAKE,RH,FR.W/FITTINGS
1930753
$87.99
29
FITTING,CROSS INVERT,FLARE
7052129
Unavailable
30
LINE,HYD.BRAKE,POD Substituted by 1930817
1930760
Unavailable
31
BOLT,BANJO,BRAKE
1930674
Unavailable
