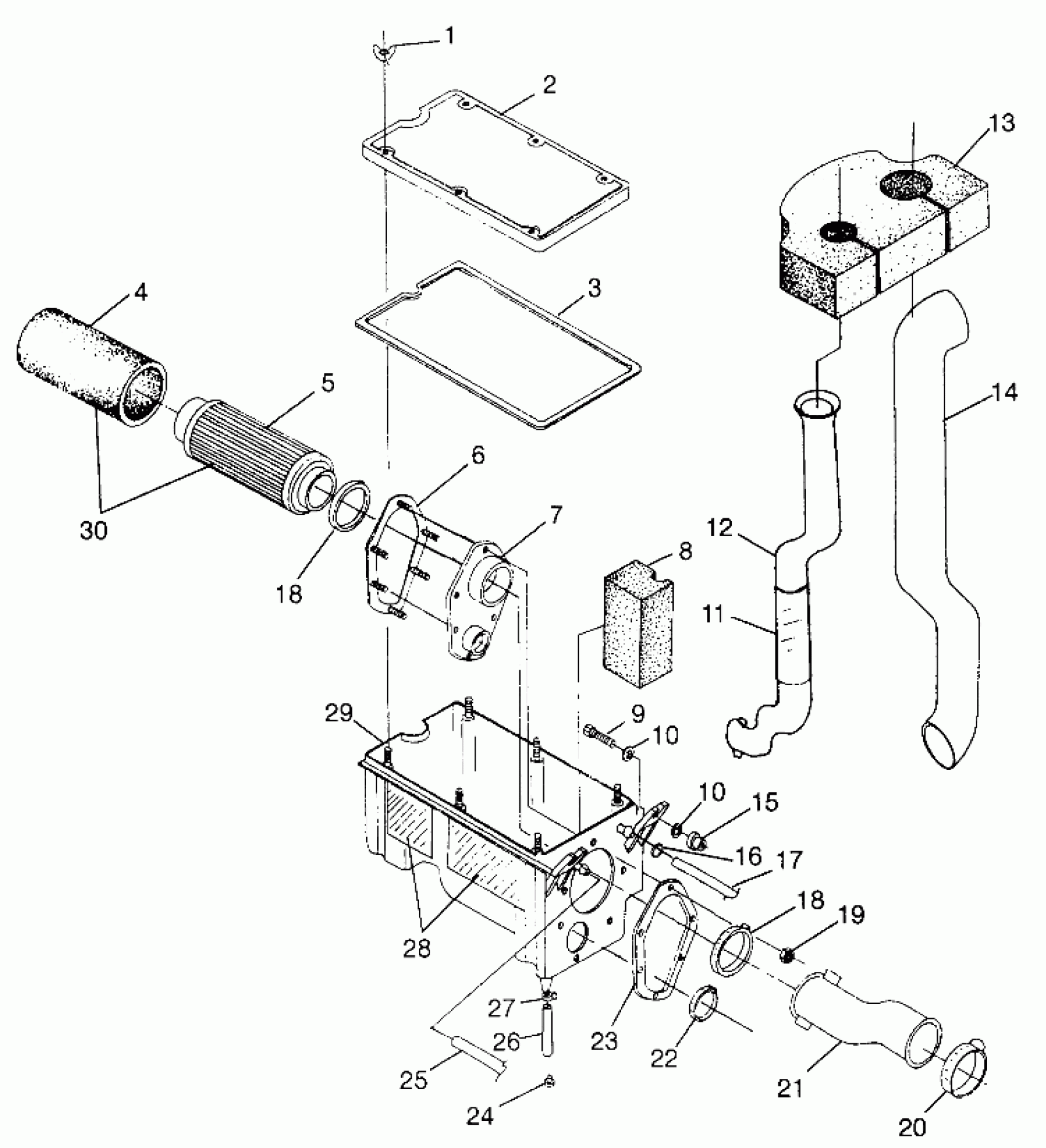

Polaris XPLORER 500 - W97CD50A AIR BOX - W97CD50A (4941354135B002) Diagram

#

Description
Price

1

NUT,WING(10)

7542127

$1.49

2

COVER, AIRBOX

5432142

Unavailable

3

SEAL,COVER,AIR INTAKE

5410996

$11.99

4

FOAM, FILTER

5811137

$11.19

5

FILTER,AIR INTAKE

7080595

Unavailable

6

PLATE,RETAINER

1040463

Unavailable

7

BOOT-SILENCER

5411014

Unavailable

8

FILTER,FOAM,EH50

5811532

Unavailable

9

SCREW(10)

7512279

$1.49

10

WASHER, FLAT(10)

7555859

$1.49

10

WASHER, FLAT(10)

7555859

$1.49

11

FOIL-TAPE,AIR BOX

5811373

$2.47

12

DUCT,INLET SILENCER

5432144

Unavailable

13

SEAL-FOAM

5811309

Unavailable

14

DUCT-AIR INLET, CLUTCH

5432086

Unavailable

15

Nut, Well (See Pg. A6, Ref. 25)

-------

Unavailable

16

CLAMP,HOSE

7080699

$1.59

17

Hose, Breather (See Pg. A12, Ref. 21)

-------

Unavailable

18

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

18

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

19

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable

20

CLAMP,BAND,NARROW

7080656

Unavailable

21

DUCT-CARB, INLET

5432143

Unavailable

22

CLAMP-HOSE, 1.750-SS

7080560

$11.19

23

PLATE,AIRBOX RETAINER,ZINC

5241339

Unavailable

24

Plug, Trap

5432377

Unavailable

25

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

26

FUEL LINE

8450059-150

Unavailable

27

CLAMP,HOSE,(10)

7080650

$3.99

28

FOIL-TAPE, AIR BOX

5811138

Unavailable

29

BOX,AIR INTAKE

5432667

$131.99

30

FILTER ASM, AIR (Incl. 4,5)

1253144

$31.99
