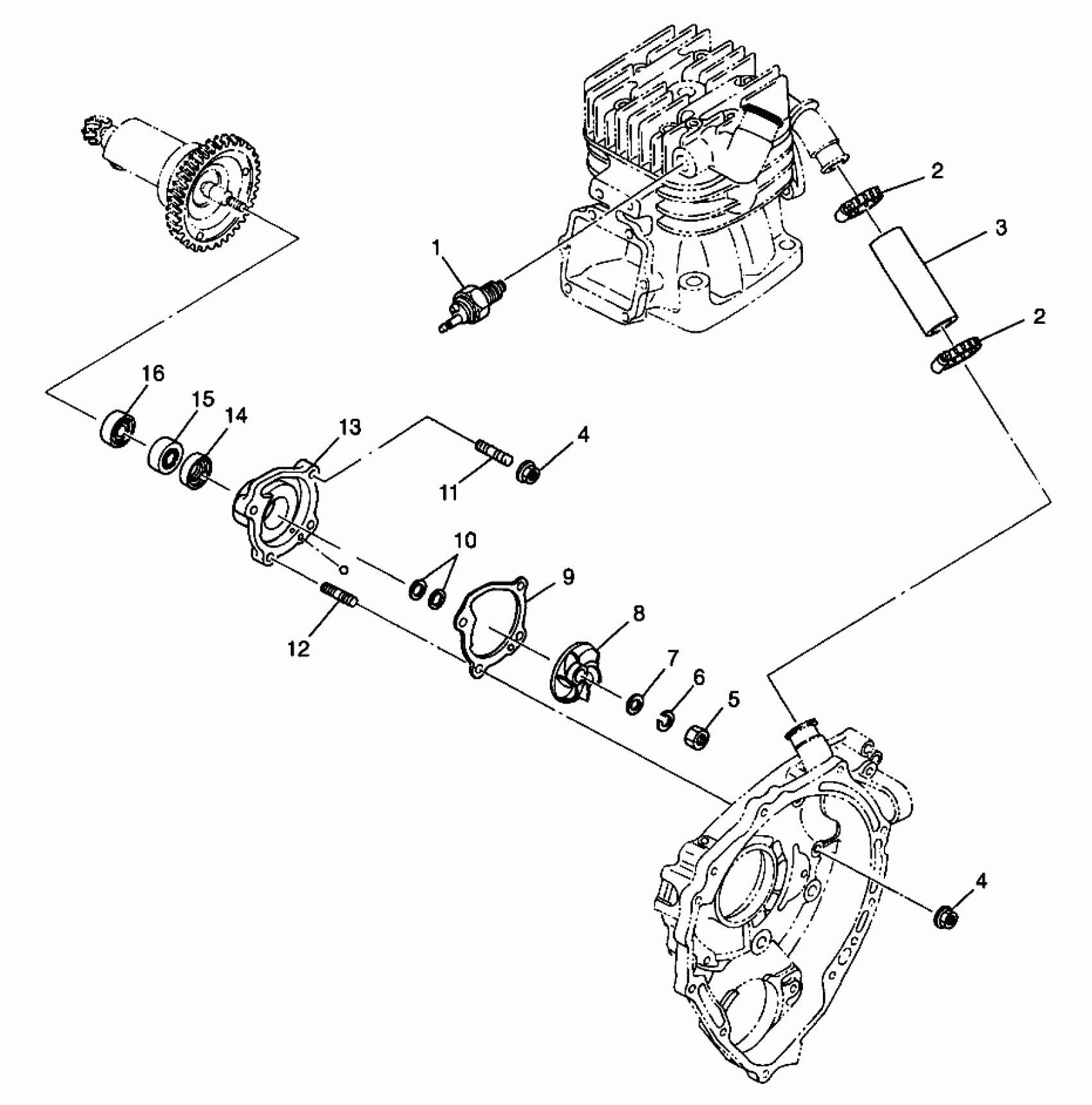

Polaris XPLORER 400L - W98CC38C WATER PUMP XPLORER 400L W98CC38C (4945414541D002) Diagram

SWITCH,THERMAL,IOS (105

3084284

Unavailable

CLAMP, HOSE Substituted by 3086774

3084191

$12.99

CLAMP, HOSE Substituted by 3086774

3084191

$12.99

HOSE, MAIN Substituted by 3086773

3084190

Unavailable

NUT, FLANGE(10)

3083856

$2.39

NUT, FLANGE(10)

3083856

$2.39

Nut

3083073

$2.39

WASHER SPRING(10)

3080077

$2.39

Washer

3082206

$1.49

Impeller

3084186

Unavailable

Gasket

3084187

$12.39

SPACER #3, (0.1) (0.1mm)

3084188

Unavailable

SPACER #4, (0.2) (0.2mm)

3084189

Unavailable

STUD Substituted by 3086775

3085086

Unavailable

STUD Substituted by 3086772

3084520

$3.81

CASE,WATER PUMP Substituted by 3086770 (Incl. 11-16)

3085084

Unavailable

CASE,WATER PUMP Substituted by 3084754 (Incl. 11, 12)

3085085

Unavailable

Seal, Oil

3084185

Unavailable

Seal, Oil

3084184

Unavailable

Bearing, Ball

3084183

Unavailable
