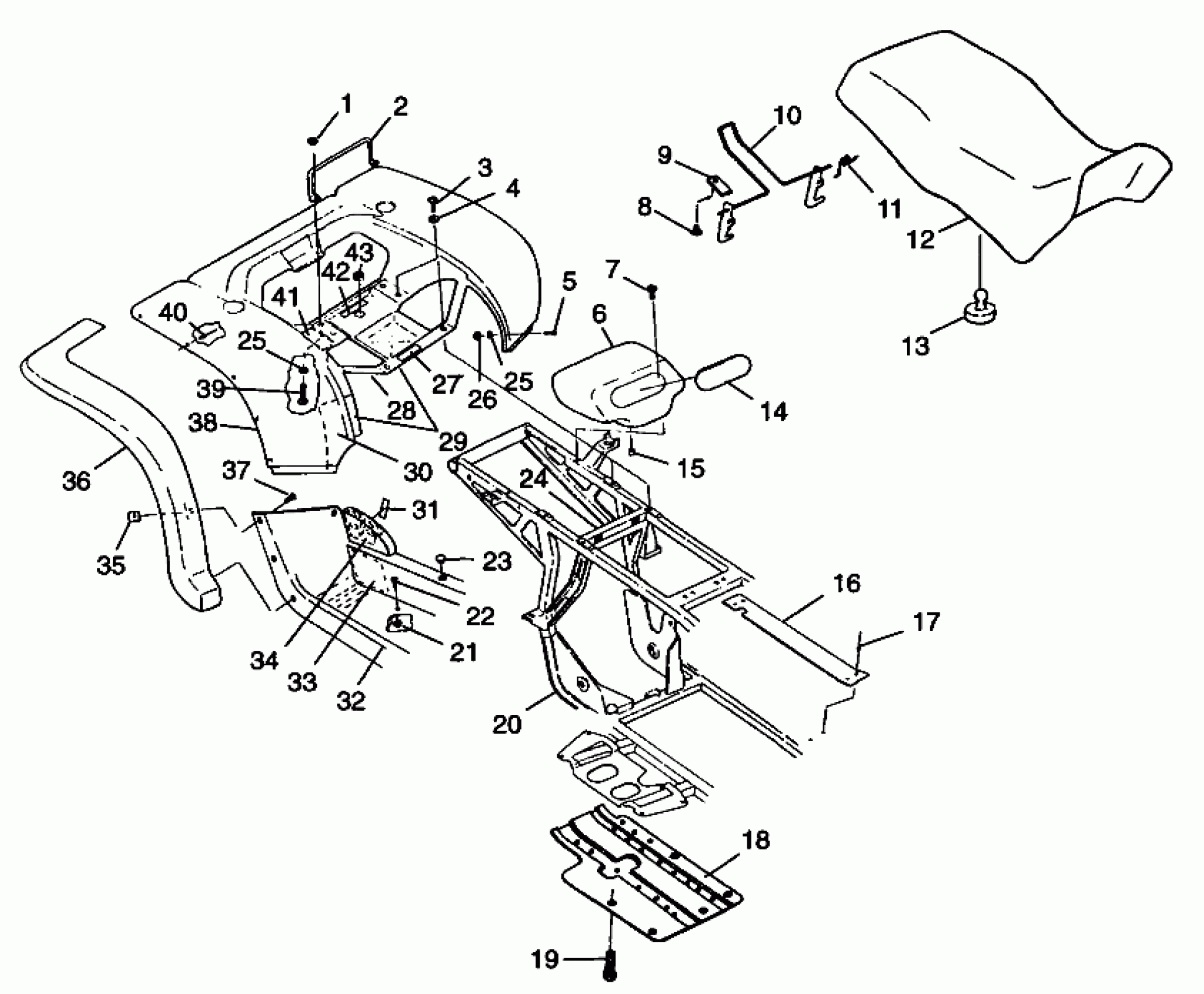

Polaris XPLORER 400L - W98CC38C REAR CAB and SEAT XPLORER 400L W98CC38C (4945414541A006) Diagram

#

Description
Price

1

NUT(10)

7541925

$0.79

2

RETAINER,SEAT LATCH

5224592

Unavailable

3

SCREW(10)

7512242

$2.38

4

WASHER, FLAT(10)

7555859

$1.19

5

SCREW(10) Substituted by 7511989

7512085

Unavailable

6

TOOLBOX

5431786

$53.17

7

SCREW Substituted by 7555748

7517375

$1.19

8

BLIND RIVET(50)

7621403

$1.19

9

BRACKET,LEVER RETAINER

5211033

$34.99

10

LATCH,SEAT

1040387

$48.56

11

SPRING, LATCH

7041370

$9.52

12

FOIL,SEATBASE,LG.

5811104

Unavailable

12

FOIL,SEATBASE,SM.

5811105

$9.84

12

COVER,SEAT,BURN.BRN.

2681747-218

$149.75

12

SEAT ASM,BURN.BROWN Substituted by 2682441-218 (Incl. 8-13)

2682360-218

$445.22

13

Bumper, Rubber

5410414

$3.17

14

COVER, TOOLBOX

5431787

Unavailable

15

CAP,DRAIN

5410896

$5.65

16

GUARD-CLUTCH, BLK

5241403-067

$5.71

17

RIVET,INTERLOCK,B(50)

7661638

$1.19

18

GUARD,ROCK,BLK

5242016-067

Unavailable

19

SCREW(10)

7512252

Unavailable

20

FRAME,MAIN,XPLR.400,BLK

1040540-067

Unavailable

21

NUT-LOCK(10)

7542122

$1.19

22

SCREW Substituted by 7512279

7517376

$0.79

23

PLUG, HOLE

5411009

Unavailable

24

TAB-AIRBOX MOUNT

5222646

Unavailable

25

WASHER(10)

7555792

$4.76

25

WASHER(10)

7555792

$4.76

26

NUT, LOCK(10) Substituted by 7541925

7541929

$0.79

27

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

28

FOIL-FOAM,(6X1)

5811087

Unavailable

29

FOIL,FR,REAR CAB

5811106

Unavailable

30

FOIL FOAM

5811111

Unavailable

31

FOIL,FOOTWELL,RIB [No Longer Available]

5811401

Unavailable

32

FOOTWELL,LH Substituted by 5432056-070

5431771-070

$230.70

32

FOOTWELL,RH Substituted by 5432057-070

5431772-070

Unavailable

33

FOIL,FOOTWELL [No Longer Available]

5811402

Unavailable

34

FOIL,FOOTWELL,SLOTTED [No Longer Available]

5811399

Unavailable

35

NUT, SPEED(10)

7670057

$1.19

36

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

36

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable

37

BOLT(10)

7512232

$1.19

38

CAB,REAR,GEN IV,EB.GRN.

5432663-195

Unavailable

39

SCREW(10)

7511930

$2.38

40

RIVET(50)

7661645

Unavailable

41

FOIL,REAR CAB,REAR

5811107

Unavailable

42

DECAL,CARB.INFO.

7073761

Unavailable

43

Grommet

5411042

$6.35
