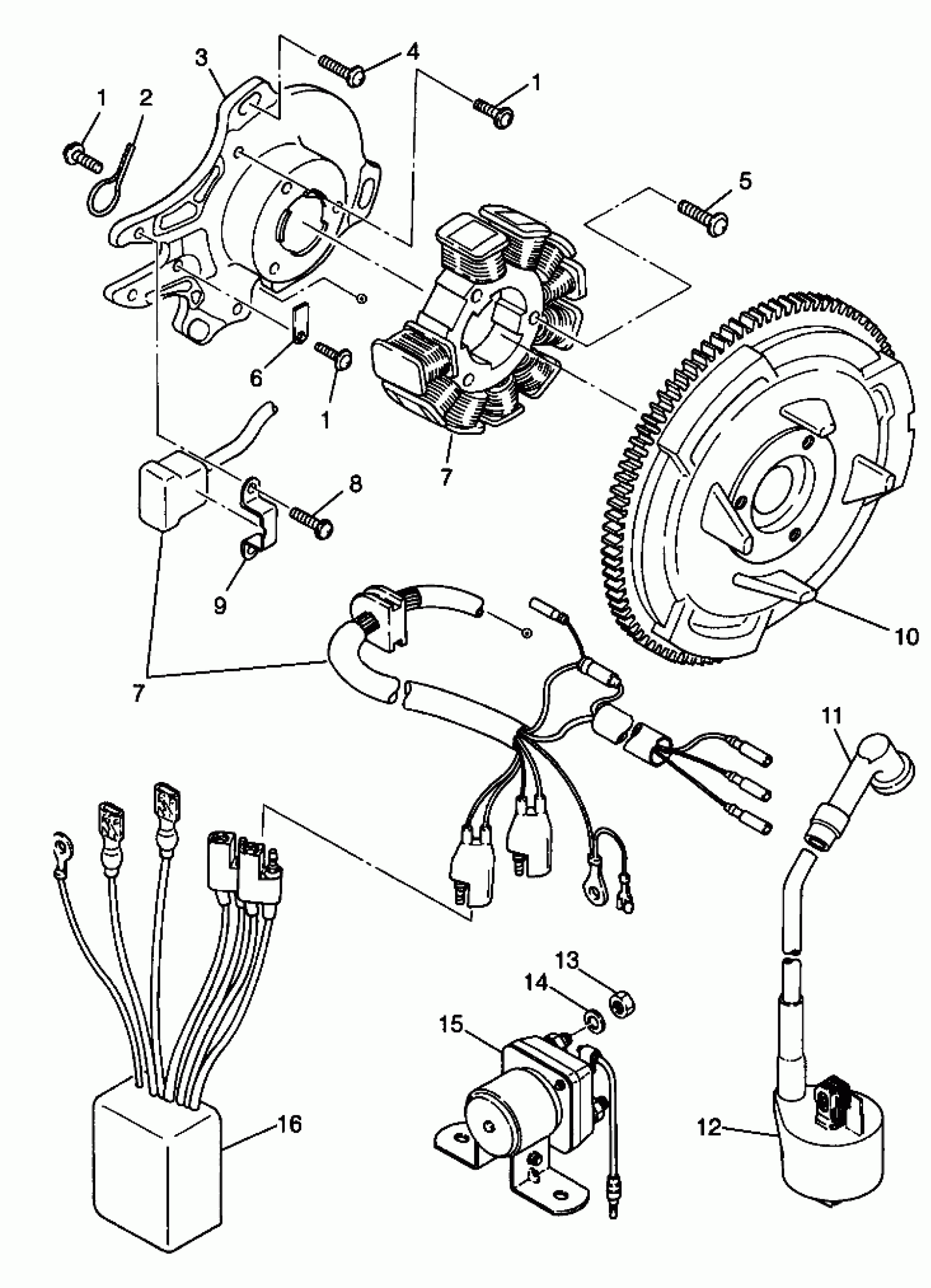

Polaris XPLORER 400L - W98CC38C MAGNETO XPLORER 400L W98CC38C (4945414541D005) Diagram

#

Description
Price

1

SCREW&WASHER,(10)

3081260

$3.19

1

SCREW&WASHER,(10)

3081260

$3.19

1

SCREW&WASHER,(10)

3081260

$3.19

2

Clamp

3081146

$1.49

3

PLATE ASM. (Incl. 1-3, 5-9)

3084761

$609.99

3

Plate, Coil

3084762

Unavailable

4

Screw, Flange

3084766

Unavailable

5

SCREW&WASHER ASM(10)

3081342

$1.49

6

Clamp

3084765

$1.99

7

Stator

3084763

Unavailable

7

Stator

3084763

Unavailable

8

SCREW&WASHER ASM.

3084764

Unavailable

9

Band

3084099

Unavailable

10

FLYWHEEL,W/RING GEAR

3084760

Unavailable

11

CAP SPARK PLUG,(10)

4020129

$9.70

12

COIL, IGNITION *

3083923

Unavailable

13

Nut

3083073

$2.39

14

WASHER SPRING(10)

3080077

$2.39

15

SWITCH,MAGNETIC *

3085521

$60.70

16

CDI,COMPLETE *

3085623

Unavailable
