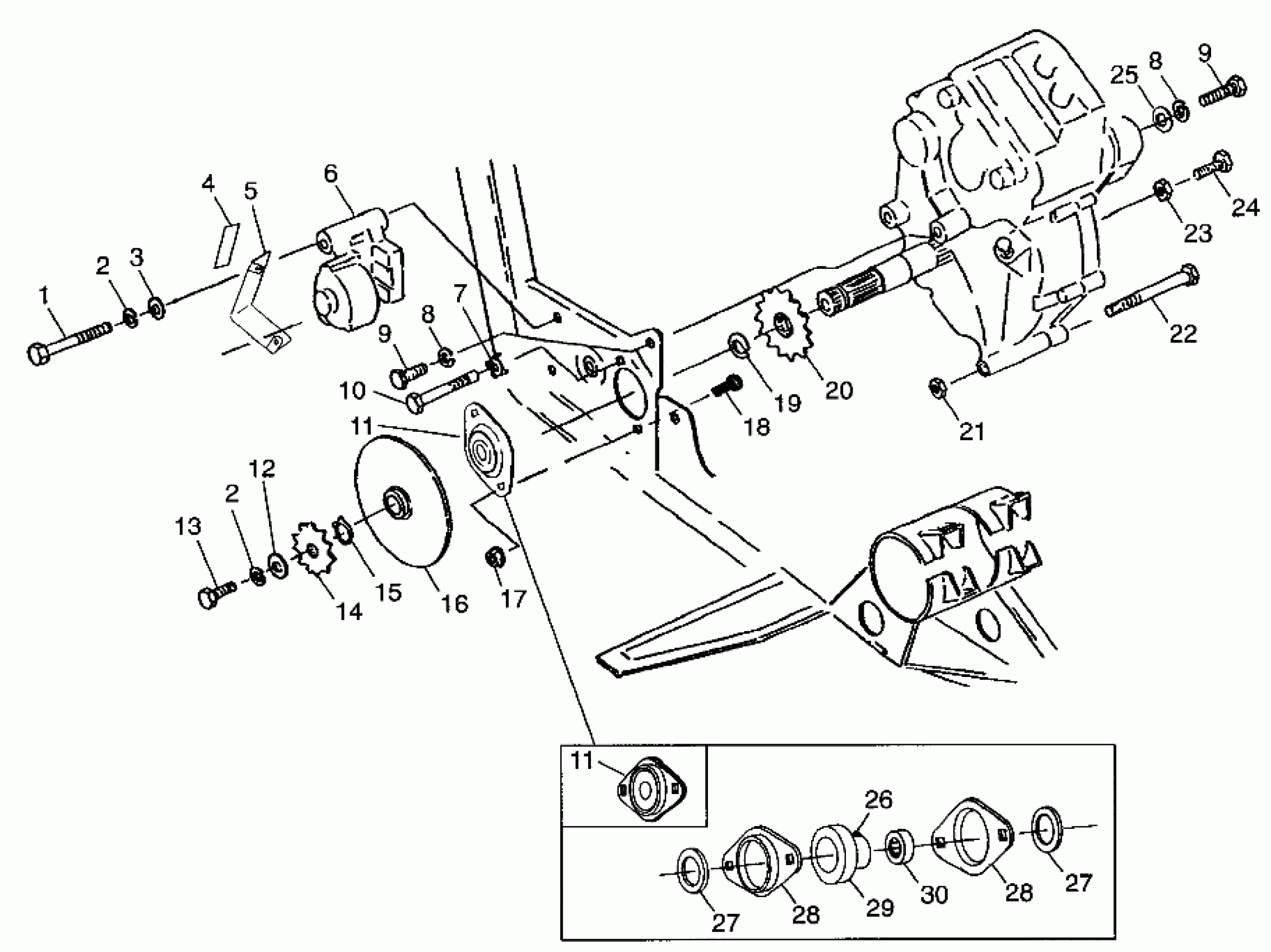

Polaris XPLORER 400L - W98CC38C GEARCASE/BRAKE and CHAIN COVER MOUNTING XPLORER 400L W98CC38C (4945414541C005) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

DECAL,BRAKE SHIELD

7075339

Unavailable

5

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

6

Asm., Brake Caliper, Rear (See Pg. A35, Ref. 3)

----

Unavailable

7

Plate, Bolt Lock (See Pg. A30, Ref. 2)

----

Unavailable

8

WASHER(10)

7552603

$0.79

8

WASHER(10)

7552603

$0.79

9

BOLT(10)

7515522

$3.97

9

BOLT(10)

7515522

$3.97

10

Bolt, Shoulder (See Pg. A30, Ref. 14)

----

Unavailable

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (Incl. 26-32)

1590265

Unavailable

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (Incl. 26-32)

1590265

Unavailable

12

WASHER FLAT(10)

7555701

$3.97

13

BOLT(10)

7515321

Unavailable

14

SPKT, 11T

3221058

$74.99

15

RING,RETAINING(10)

7710433

$4.76

16

DISC ASM,BRAKE

1910177

Unavailable

17

NUT,FLANGE LOCK(10)

7542449

$3.97

18

BOLT,CARRIAGE(10)

7515484

Unavailable

19

RING,SNAP(10)

7710434

$3.97

20

SPKT,13T,SPLINED

3221041

Unavailable

21

NUT LOCK(10)

7542403

Unavailable

22

BOLT(10)

7515472

$2.38

23

NUT(10)

7542404

$1.59

24

BOLT(10)

7515485

$3.02

25

WASHER Substituted by 7555720

7555784

$0.79

26

ZERK,FITTING,THREADED(10)

7080433

$1.19

27

SEAL,BRAKE

3610062

Unavailable

27

SEAL,BRAKE

3610062

Unavailable

28

FLANGETTE,O/P SHAFT BRNG.

5242072

Unavailable

28

FLANGETTE,O/P SHAFT BRNG.

5242072

Unavailable

29

HSG,BRNG,O/P SHAFT

5131643

Unavailable

30

BEARING,NEEDLE

3554202

Unavailable
