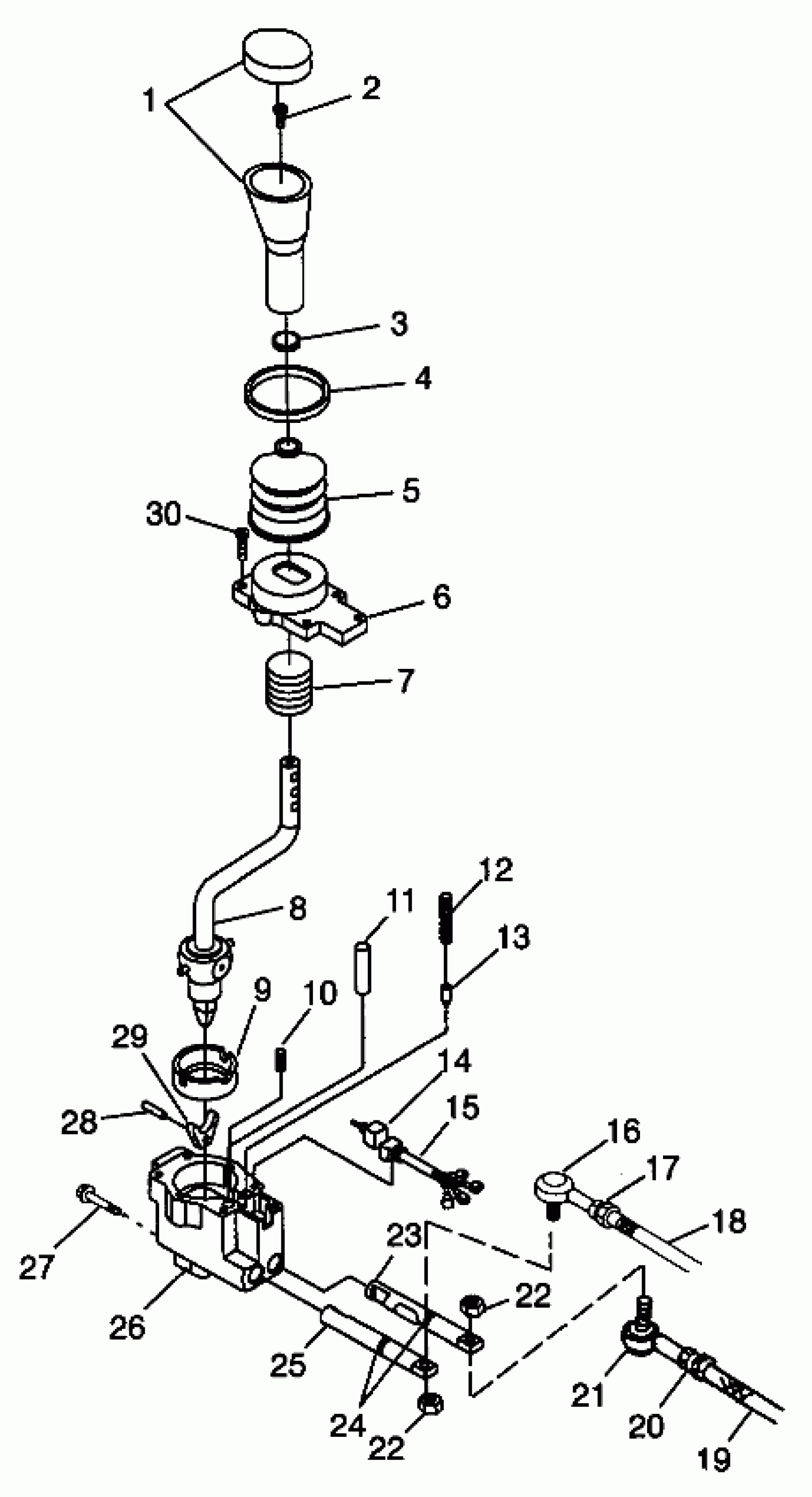

Polaris XPLORER 400L - W98CC38C GEAR SELECTOR XPLORER 400L W98CC38C (4945414541C011) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR (Incl. 1-15, 23-26, 28-30)

1341218

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

2

SCREW,(10)

7512024

$4.79

2

SCREW,(10)

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR

3233368

$74.79

6

COVER,GEAR SELECTOR

3233213

Unavailable

7

SPRING,HOLDING

3233158

Unavailable

8

HANDLE,SUBASM,GS GEN IV

3233456

Unavailable

9

CUP,BEARING

3233063

$15.99

10

SPRING,CENTERING

3233083

Unavailable

11

PIN, STOP

3233062

Unavailable

12

SPRING,DETENT

3233069

Unavailable

13

BULLET,DETENT

3233060

$64.99

14

SWITCH,GEAR SELECTOR

3233215

Unavailable

15

STRAP, WIRE

3233090

$2.86

16

ROD END,LH,6MM.

7061013

$65.99

17

NUT(10)

7546702

$1.49

18

ROD,SHIFTLINK,LOW

5020936

Unavailable

19

ROD,SHIFTLINK,HI RANGE Substituted by 5020729

5020690

Unavailable

20

NUT(10)

7546701

$3.99

21

ROD END,RH,6MM.

7061014

$65.99

23

SLIDE,HIGH/REV

3233499

Unavailable

24

O-RING

3233076

$6.39

25

SLIDE,LOW

3233089

Unavailable

26

BODY,GEARSELECT

3233457

Unavailable

27

SCREW(10)

7515181

$2.39

28

PIN,INTERLOCK

3233070

Unavailable

29

INTERLOCK,BUTTERFLY

3233084

Unavailable

30

SCREW,MAGNIGARD COATED

3233498

Unavailable
