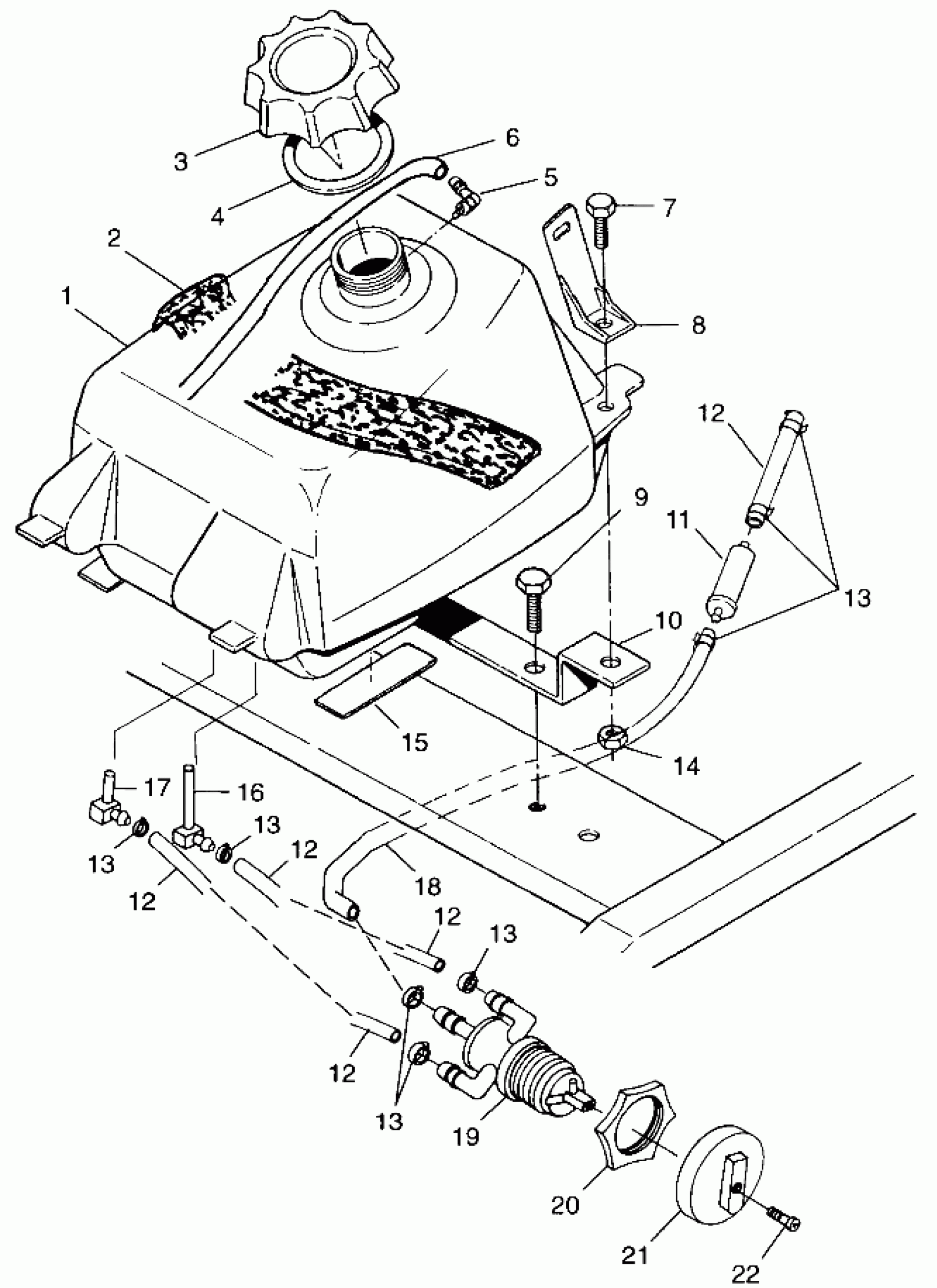

Polaris XPLORER 400L - W98CC38C FUEL TANK XPLORER 400L W98CC38C (4945414541A013) Diagram

#

Description
Price

1

FUELTANK ASM,(300) Substituted by 1240048 (Incl. 5, 16, 17)

2511272

Unavailable

2

Foam, Seal

5811052

Unavailable

3

CAP, GAS, (BLACK)

5430725

$24.27

4

GASKET-GAS CAP

5810144

$5.59

5

Vent, Tank

5431053

$19.99

6

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

7

SCREW(10)

7512310

$2.39

8

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

8

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

9

BOLT(10)

7512232

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

12

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

13

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

13

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

13

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

13

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

13

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

PAD,BULK FUEL

8360026

Unavailable

16

ELBOW, MAIN

7052147

Unavailable

17

FITTING,FUEL OUT,90DEG,RES,Z

7052148

Unavailable

18

HOSE,FUEL,1/4 IN.

5411272

Unavailable

19

VALVE,3-WAY,HORIZ PORTS

7052154

$39.99

20

NUT,FUELVALVE,ATV

5432733

Unavailable

21

KNOB,FUEL VALVE

5432559

$10.39

22

SCREW, S.S.(10)

7516302

$3.99
