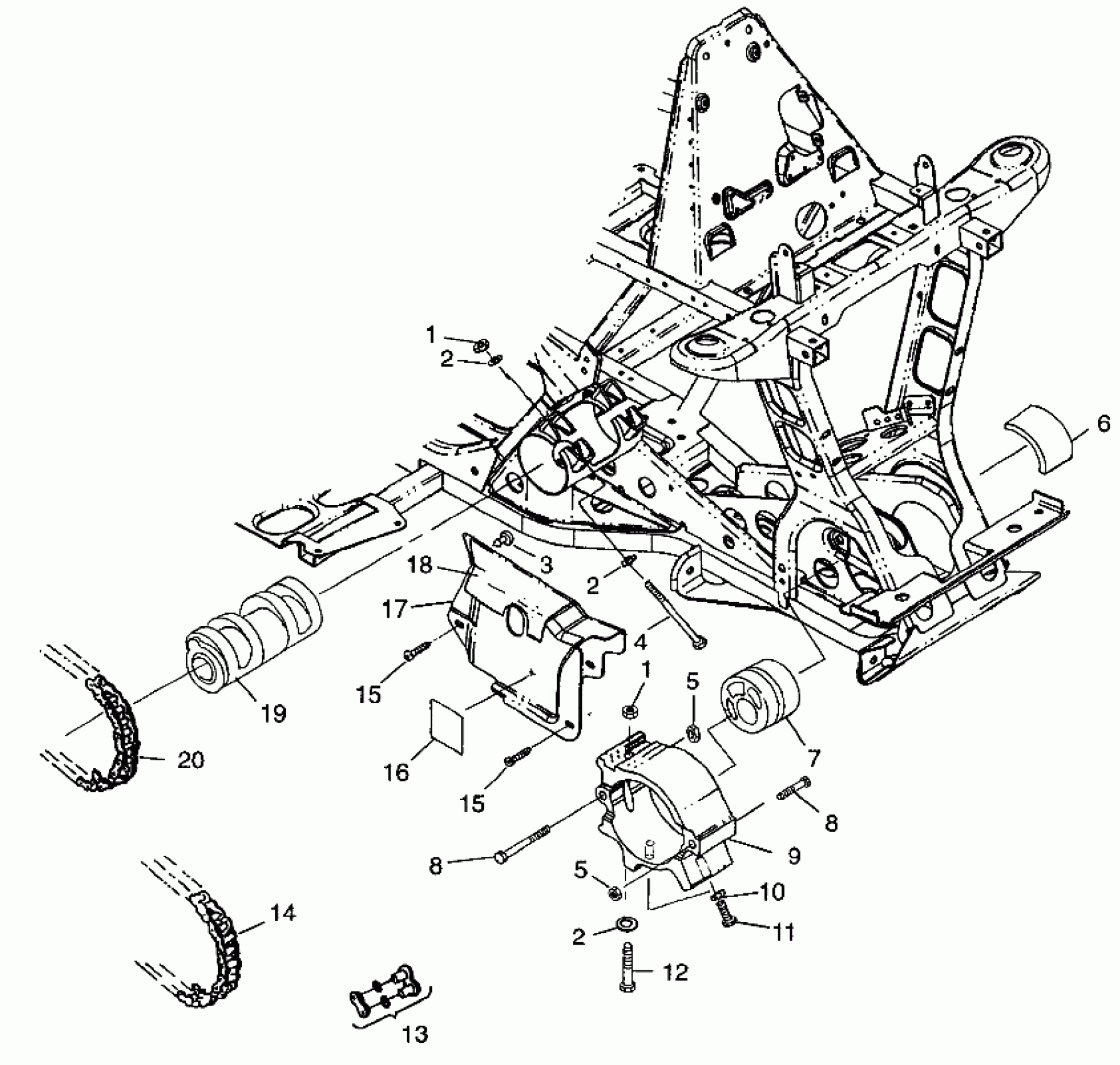

Polaris XPLORER 400L - W98CC38C FRONT DRIVE XPLORER 400L W98CC38C (4945414541B002) Diagram

#

Description
Price

1

NUT, LOCK,(10)

7542503

$10.32

1

NUT, LOCK,(10)

7542503

$10.32

2

WASHER(10)

7555883

$3.97

2

WASHER(10)

7555883

$3.97

2

WASHER(10)

7555883

$3.97

3

CLIP,X-MAS TREE

7670101

$2.38

4

BOLT(10)

7512583

Unavailable

5

NUT,FLANGE LOCK(10)

7542449

$3.97

5

NUT,FLANGE LOCK(10)

7542449

$3.97

6

SPACER,F.ECCENTRIC

5811519

Unavailable

7

Asm., Front Tightener (See Pg. NO TAG For Details)

----

Unavailable

8

SCREW

7517303

Unavailable

8

SCREW

7517303

Unavailable

9

CLAMP,FR.ECCENTRIC

5131379

Unavailable

10

WASHER(10)

7552603

$0.79

11

BOLT(10)

7515522

$3.97

12

SCREW

7517304

Unavailable

13

CONNECTOR LINK

3225024

$24.27

14

CHAIN, DRIVE Substituted by 3224056-064 (Incl. 13)

3224041

$105.22

15

SCREW(10)

7512252

Unavailable

15

SCREW(10)

7512252

Unavailable

16

DECAL,FR.CHAIN TENSION

7074956

Unavailable

17

GUARD,FR.CHAIN

5432572

Unavailable

18

FOIL,CHAINGUARD

5811502

Unavailable

19

Asm., Center Tightener (See Pg. NO TAG For Details)

----

Unavailable

20

CHAIN, DRIVE Substituted by 3224056-070 (Incl. 13)

3224044

$113.32
