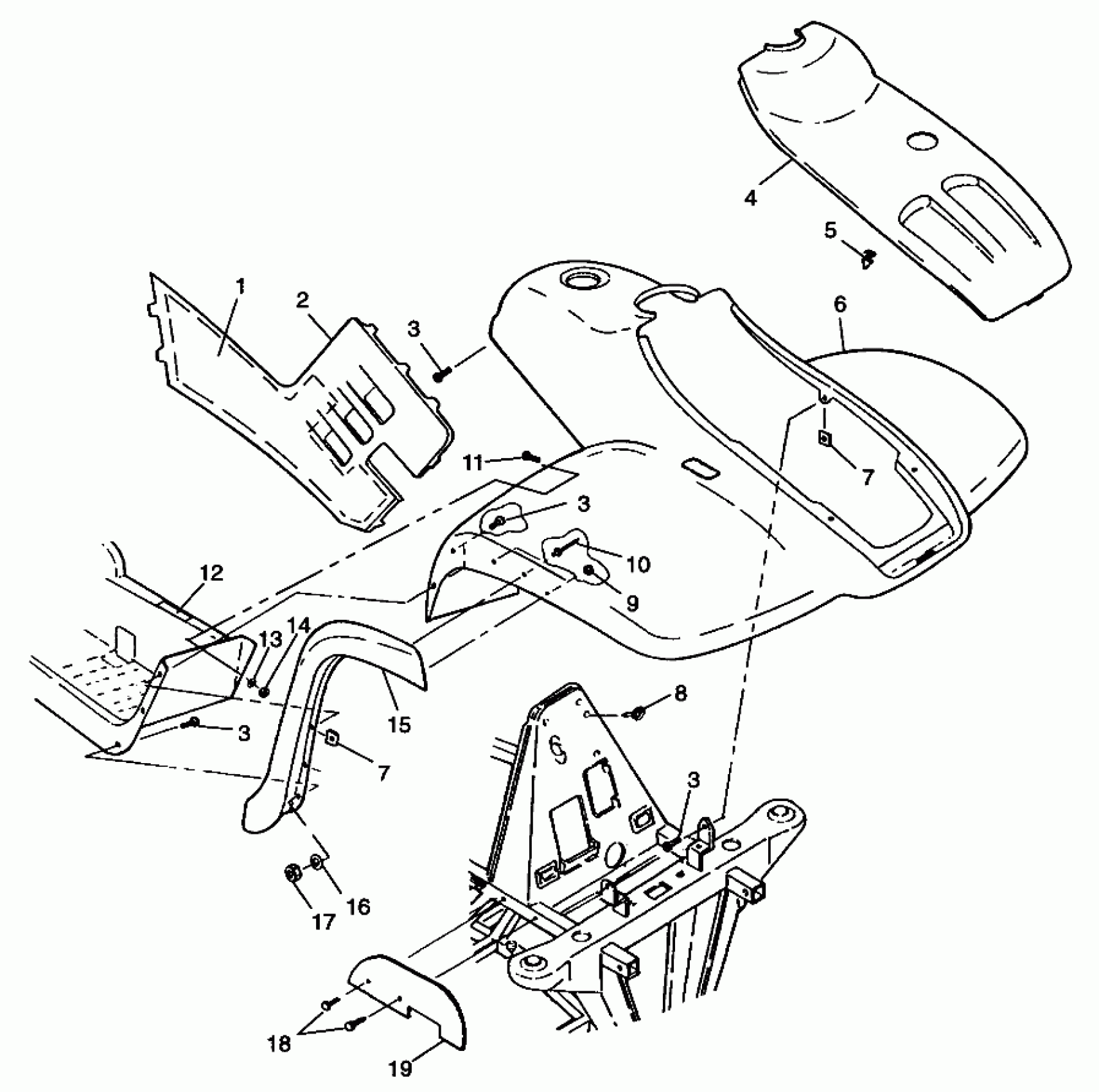

Polaris XPLORER 400L - W98CC38C FRONT CAB XPLORER 400L W98CC38C (4945414541A005) Diagram

#

Description
Price

1

FOIL,RH,SIDEPANEL,GEN IV

5811491

Unavailable

1

FOIL,FOAM,SIDEPANEL(300)

5811210

$34.92

2

PANEL ASM,RH,EB GREEN (Incl. Foil & Foam)

2620096-195

Unavailable

2

PANEL,LH,SIDE,E.B.GRN.

5431809-195

Unavailable

3

BOLT(10)

7512232

$1.49

3

BOLT(10)

7512232

$1.49

3

BOLT(10)

7512232

$1.49

3

BOLT(10)

7512232

$1.49

4

COVER,FR,E.B.GRN.

5431806-195

$115.99

5

CLIP,SPRING(10)

7670085

$3.51

6

CAB ASM,FR,EB.GRN. Substituted by 2631990-195 (Incl. Warning Decals)

2631928-195

$281.75

7

NUT, SPEED(10)

7670057

$1.49

7

NUT, SPEED(10)

7670057

$1.49

8

CLAMP,WIRE ROUTING(10)

7080409

$2.39

9

PALNUT(10)

7670009

$2.39

10

RIVET(50)

7661645

$3.99

11

SCREW(10) Substituted by 7511989

7512085

Unavailable

12

DECAL,DRAIN RECOIL Substituted by 7078577

7075741

Unavailable

13

WASHER(10)

7555792

$4.79

14

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable

15

MUDGUARD,LH,FRT.BLK. Substituted by 5431798-070

5431798

Unavailable

15

MUDGUARD,RH,FRT.BLK. Substituted by 5431799-070

5431799

$84.99

16

WASHER(10) Substituted by 7558221

7555931

Unavailable

17

NUT-LOCK(10)

7542122

$1.49

18

CLIP-PLASTIC DART, NYLON

7670088

$1.59

19

SHIELD,DEFLECTOR Substituted by 5811917

5811489

$7.38

19

SHIELD,LH,DEFLECTOR

5811512

$9.11
