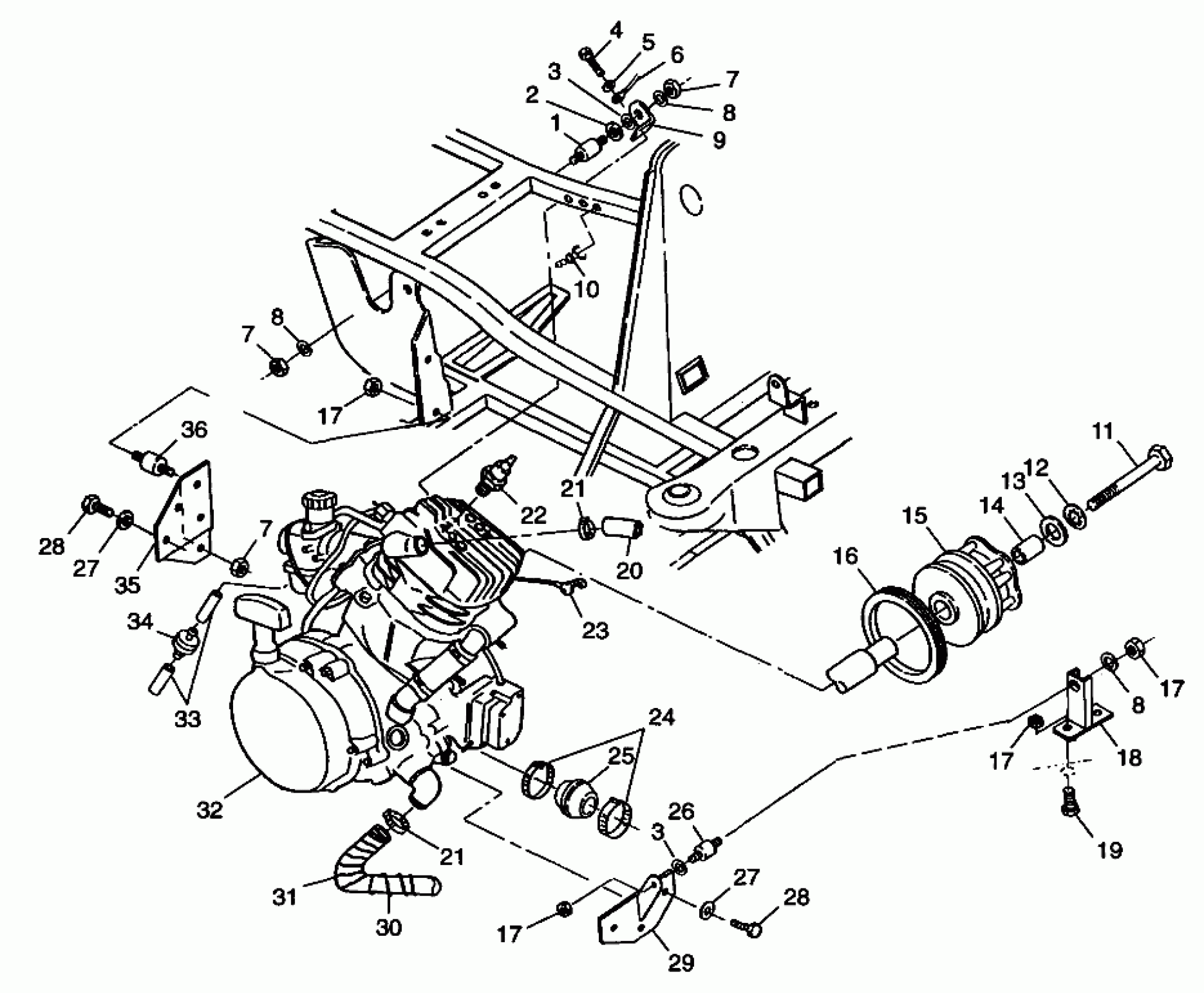

Polaris XPLORER 400L - W98CC38C ENGINE MOUNTING XPLORER 400L W98CC38C (4945414541A010) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

WASHER(10)

7555823

Unavailable

3

WASHER(10)

7555823

Unavailable

4

BOLT(10)

7515321

$1.49

5

LOCK WASHER(10)

7552901

$1.49

6

CABLE,GND-ENGINE

4010132

Unavailable

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

8

WASHER(10)

7555806

$1.49

8

WASHER(10)

7555806

$1.49

8

WASHER(10)

7555806

$1.49

9

MOUNT,ENG,TOP

5241801-067

Unavailable

10

FITTING,VENT,1/8"

7052192

Unavailable

11

BOLT(10)

7512566

$30.79

12

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

13

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

14

BUSHING-.437 X.770 X.50

5430261

$7.19

15

Asm., Drive Clutch (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

16

Seal, Cover Case (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

17

NUT LOCK(10)

7542403

$3.99

17

NUT LOCK(10)

7542403

$3.99

17

NUT LOCK(10)

7542403

$3.99

17

NUT LOCK(10)

7542403

$3.99

18

MOUNT,ENG,LOW,BLK

1040532-067

Unavailable

19

BOLT(10)

7512457

$3.99

20

HOSE,ENG,UPPER

5410570

$44.51

21

CLAMP,HOSE,(10)

7080614

$7.19

21

CLAMP,HOSE,(10)

7080614

$7.19

22

SPARKPLUG (10)

3070156

$3.99

23

CABLE,SOL/START,DBLBOOT

4010129

Unavailable

24

CLAMP, NARROW BAND(10)

7080511

$4.79

25

BOOT,CLUTCH INTAKE(400)

5410883

$7.99

26

MOUNT,MOTOR

3110026

Unavailable

27

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

27

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

28

SCREW(10)

7512490

$3.99

28

SCREW(10)

7512490

$3.99

29

MOUNT,ENGINE

1040231-067

Unavailable

30

SPRING,HOSE RETAINER

7041079

$4.95

31

HOSE,LOWER ENGINE

5411173

$91.99

32

ENG.(S.B.)EC38PLE-O7 Substituted by 1211625 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization r

3085547

Unavailable

33

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

34

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

35

MOUNT, REAR MOTOR, BLK.

5240542-067

Unavailable

36

MOUNT,RUBBER,ENG.

3110042

Unavailable
