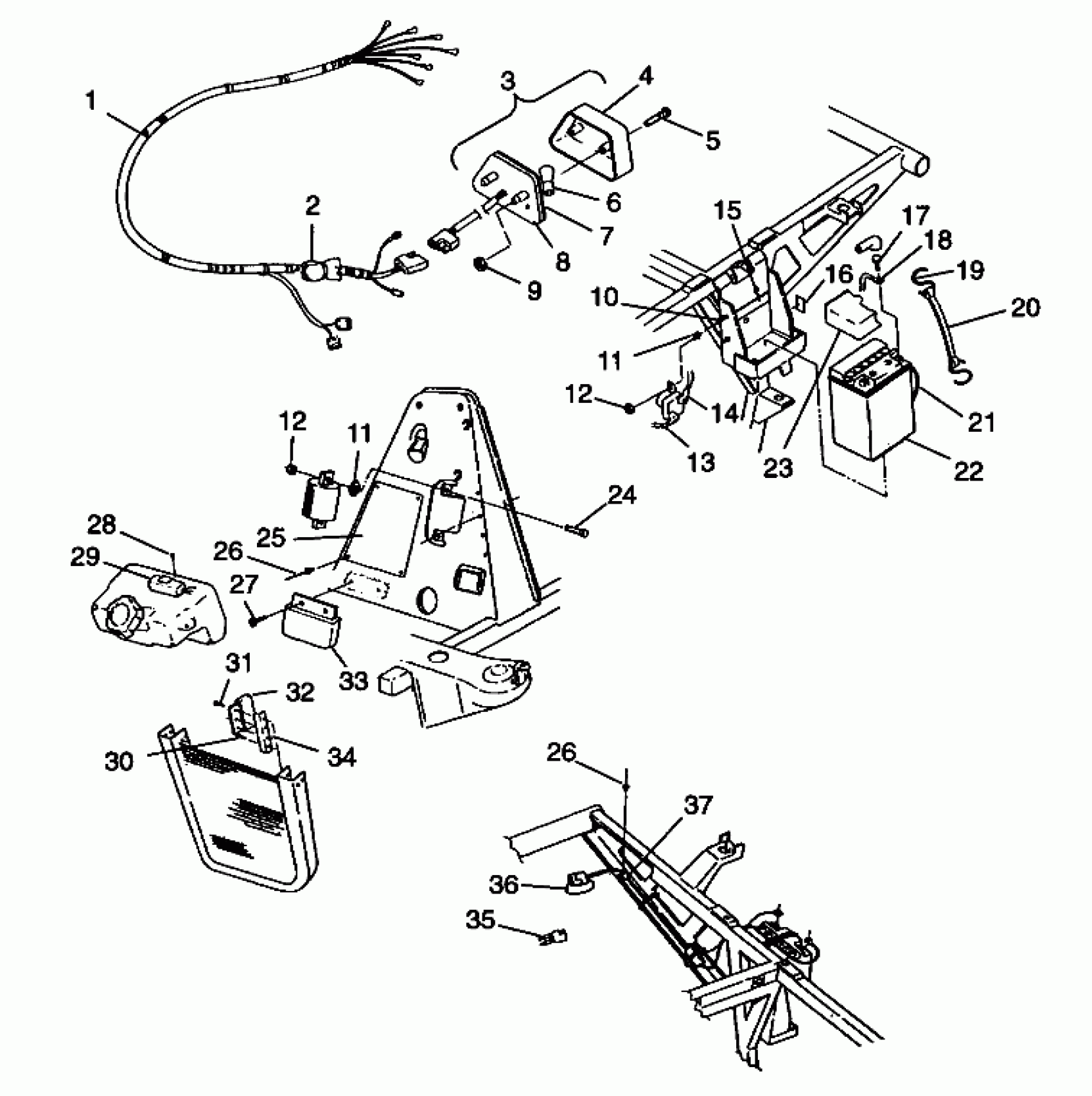

Polaris XPLORER 400L - W98CC38C ELECTRICAL/TAILLIGHT XPLORER 400L W98CC38C (4945414541C008) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE

2460564

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

TAIL LIGHT ASM. (Incl. 4-9)

2432034

$55.99

4

LENS,TAILLIGHT

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

BULB,TAILLIGHT

4030043

$6.46

7

GASKET,TAILLIGHT

4032045

$4.03

8

BACKING,TAILLIGHT

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

SCREW(10)

7512027

$1.49

11

WASHER(10)

7571602

$4.79

11

WASHER(10)

7571602

$4.79

12

NUT(10)

7541925

$1.49

12

NUT(10)

7541925

$1.49

13

Cable, Solenoid/Starter (See Pg. A12, Ref. 23)

-------

Unavailable

14

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

15

PAD-BATTERY

5810290

$7.27

16

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

17

BOLT,BATT,KIT(SHORT)

2200361

$3.99

18

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

19

HOOK-BATT.H/D(10)

7010032

$1.59

20

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

21

TUBE,BATTERY VENT

5432077

Unavailable

22

Battery

4140006

$99.99

23

COVER,BATTERY

5431769

$14.39

24

SCREW(10)

7512007

$3.99

25

BOARD,TERMINAL,150 ALT,ATV

4040063

Unavailable

26

RIVET,(50)

7621336

$1.59

26

RIVET,(50)

7621336

$1.59

27

SCREW,(10)

7512024

$4.79

28

BOLT(10)

7511864

$4.79

29

BRACKET-CDI

5241416

$5.75

30

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

31

SCREW(10)

7512017

$4.79

32

RECTIFIER/REGULATOR,LR-35

4060191

Unavailable

33

LIMITER,RPM,350HZ,LR-44-2

4060203

Unavailable

34

HEATSINK,RECT.

5131818

Unavailable

35

PIGTAIL, POWER

2460442

$12.39

36

POWER ASM,12V

2410022

Unavailable

37

CLAMP,BLK,5/16 PLASTIC(10)

7080524

Unavailable
