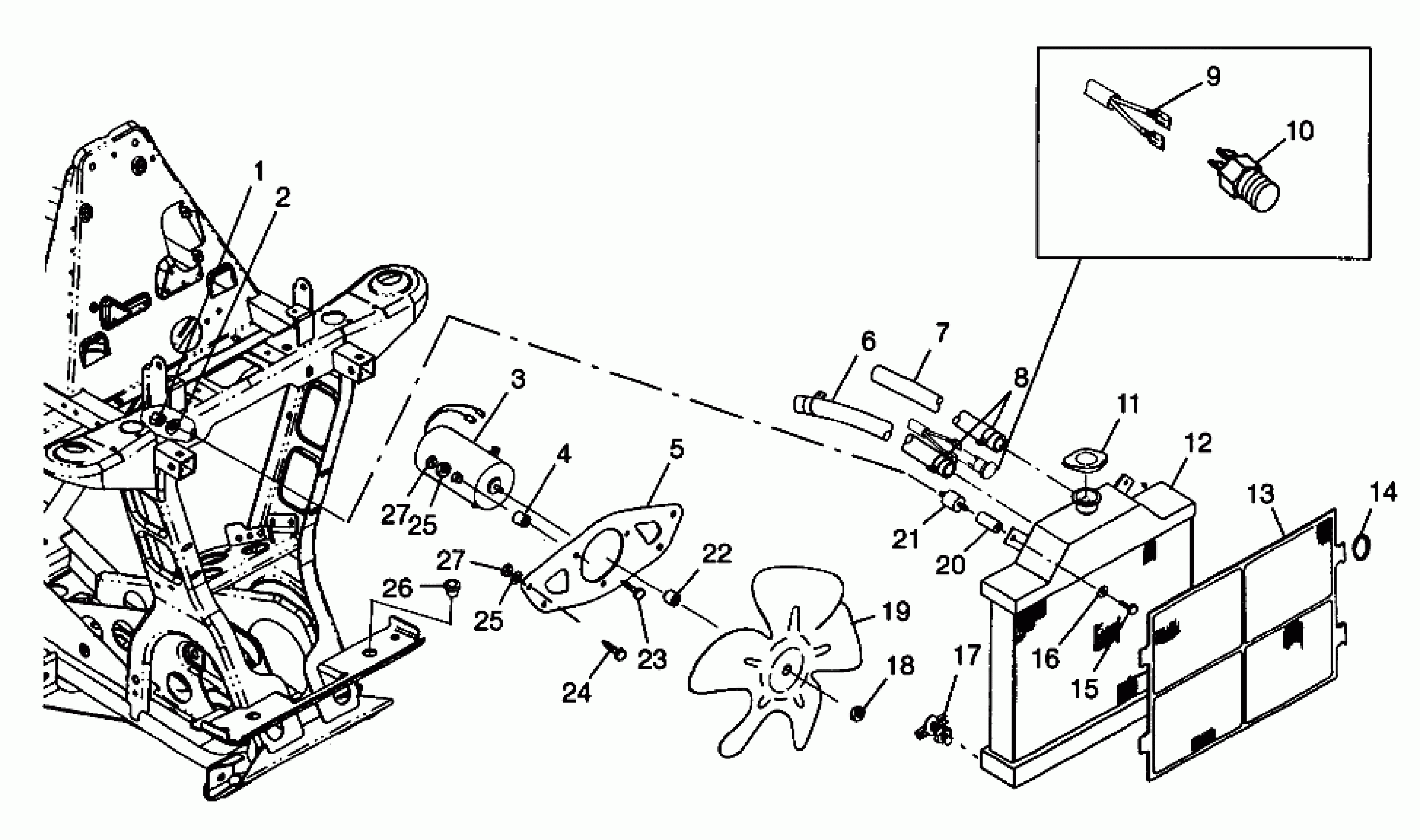

Polaris XPLORER 400L - W98CC38C COOLING SYSTEM XPLORER 400L W98CC38C (4945414541A011) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER(10)

7558301

$1.49

3

MOTOR,FAN,LIQ.COOLED (Incl. Hardware)

4170009

Unavailable

4

SPACER,FAN BRKT.

5432294

$3.99

5

BRKT,FAN MOUNT,BLK

5241788-067

$7.43

6

Hose, Engine, Lower (See Pg. A12, Ref. 31)

-------

Unavailable

7

Hose, Engine, Upper (See Pg. A12, Ref. 20)

-------

Unavailable

8

CLAMP,HOSE,(10)

7080614

$7.19

9

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

10

SWITCH,THERMAL,FAN,L/C

4110225

Unavailable

11

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

12

RADIATOR,"U"FLOW

1240015

Unavailable

13

COVER,RADIATOR,W/MESH

5431760

Unavailable

14

O RING

5410607

$5.99

15

SCREW(10)

7512113

$3.99

16

WASHER(10)

7552605

$5.27

17

VALVE,DRAIN COCK

7052181

Unavailable

18

NUT

7542154

Unavailable

19

BLADE, FAN

5240822

$57.59

20

Spacer, Mount

5020572

$8.79

21

Mount, Rubber

3110032

$7.99

22

SPACER

5333457

Unavailable

23

SCREW

7517221

$1.83

24

BOLT(10)

7512232

$1.49

25

WASHER, FLAT(10)

7558201

$5.79

25

WASHER, FLAT(10)

7558201

$5.79

26

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

27

Nut

7547004

$4.79

27

Nut

7547004

$4.79
