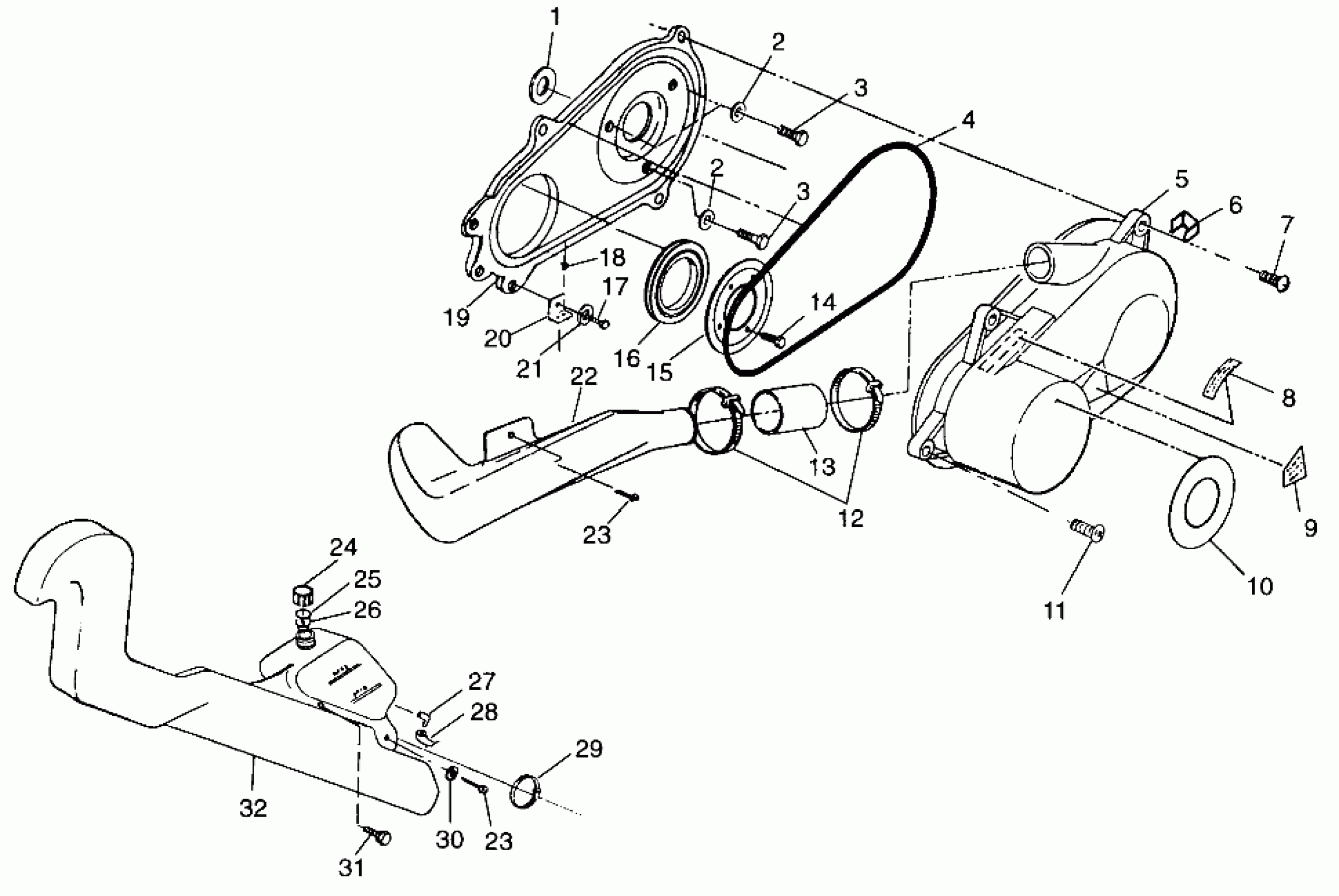

Polaris XPLORER 400L - W98CC38C CLUTCH COVER XPLORER 400L W98CC38C (4945414541C004) Diagram

#

Description
Price

1

SEAL,CVR,CASE 1/2

5411180

$24.27

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

3

SCREW

7517219

$4.79

3

SCREW

7517219

$4.79

4

SEAL,CLUTCHCOVER

5521301

$30.88

5

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$173.74

6

CLIP,CLUTCH COVER(10)

7670051

$2.99

7

SCREW(10)

7512093

$1.49

8

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

9

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

10

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

11

SCREW(10)

7512094

$1.59

12

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

13

BOOT,CLUTCH INTAKE

5410421

$11.19

14

Screw and Washer (See Pg. A42, Ref. 58)

-------

Unavailable

15

BRKT,RETAINER,SEAL

5222446-067

Unavailable

16

Seal, Cover Case

5410575

Unavailable

17

SCREW(10)

7512095

$4.79

18

RIVET,INTERLOCK,B(50)

7661638

$1.49

19

KIT,CVR,IN.CLUTCH,(400) Substituted by 2201159

2200790

Unavailable

20

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

21

WASHER(10)

7555935

$2.39

22

DUCT,AIR OUT,CLUTCH

5432615

Unavailable

23

BOLT(10)

7512232

$1.49

23

BOLT(10)

7512232

$1.49

24

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

25

GASKET-OVERFLOW CAP

5810279

$2.41

26

PLUG,CAP Substituted by 5433774

5431895

Unavailable

27

FITTING,90 DEGREE

7052065

$7.19

28

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

29

CLAMP, NARROW BAND(10)

7080511

$4.79

30

WASHER(10)

7555783

$3.99

31

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

32

DUCT,INLET DOWNTUBE,GEN III

5432440

Unavailable
