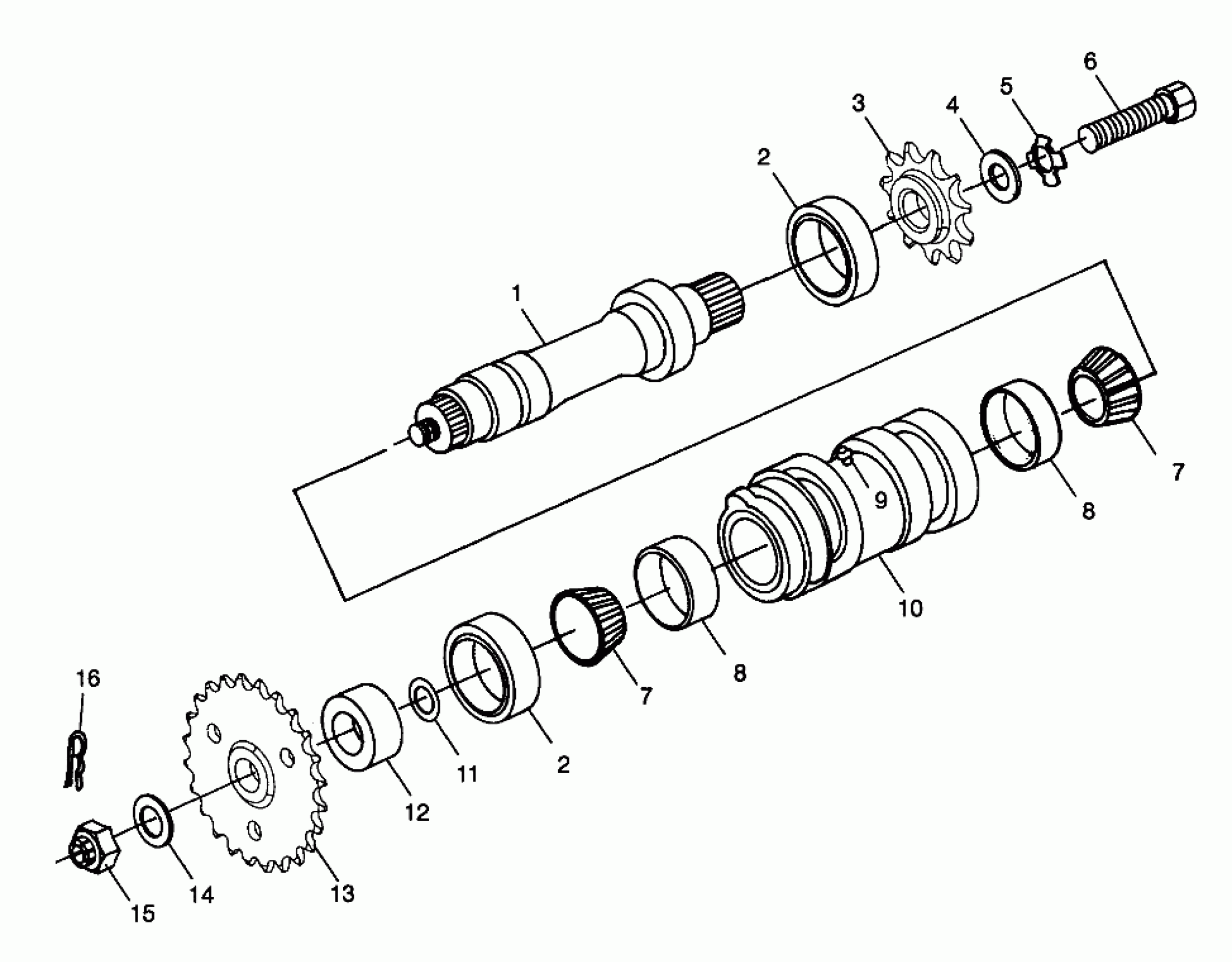

Polaris XPLORER 400L - W98CC38C CENTER TIGHTENER XPLORER 400L W98CC38C (4945414541B014) Diagram

#

Description
Price

-

TIGHT.ASM,CTR,TPR.BRGS. Substituted by 1380129 (Incl. 9-16)

1380123

Unavailable

1

SHAFT,CTR.TIGHT,SHORT

5020935

$95.24

2

SEAL, TIGHTENER

3610017

$31.99

2

SEAL, TIGHTENER

3610017

$31.99

3

SPKT,13T,SPLINED

3221041

$43.99

4

WASHER, FLAT(10)

7555815

$3.99

5

WASHER-LOCK(10)

7571611

$3.19

6

SCREW(10)

7512492

$1.49

7

BRG,TAPER.ROLL.CONE

3554506

$31.99

7

BRG,TAPER.ROLL.CONE

3554506

$31.99

8

BRG,TAPER,ROLL CUP

3554507

$31.99

8

BRG,TAPER,ROLL CUP

3554507

$31.99

9

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

10

ECC.ASM,CTR,W/BRNG CUP

1380136

Unavailable

11

O RING

5410463

$6.99

12

SPACER.CTR.TIGHTENER,TPR

5010444

Unavailable

13

SPROCKET, 22T Substituted by 3222042

3222044

Unavailable

14

WASHER, THRUST(10)

7555788

$4.99

15

NUT, SLOTTED(10)

7542810

$3.19

16

COTTER PIN(10)

7661401

$1.49
