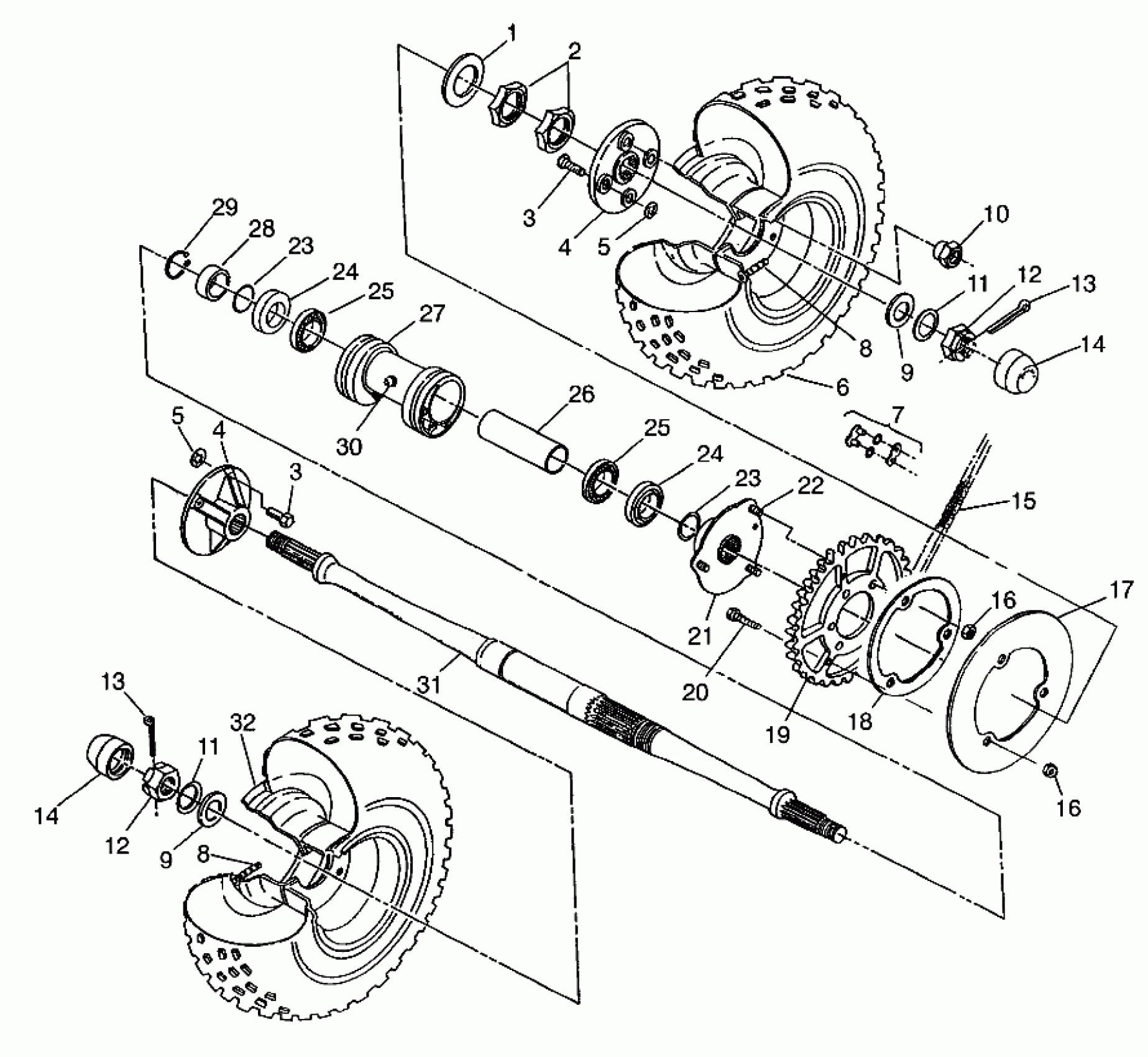

Polaris XPLORER 400L - W97CC38C REAR WHEEL DRIVE XPLORER 400L W97CC38C (4939753975C007) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

$39.59

3

BOLT, WHEEL(10)

7512673

$3.19

3

BOLT, WHEEL(10)

7512673

$3.19

4

KIT, MACH.HUB (Incl. 11)

2200341

$93.08

4

KIT, MACH.HUB (Incl. 11)

2200341

$93.08

5

PUSHNUT, BOLT(10)

7670081

$3.99

5

PUSHNUT, BOLT(10)

7670081

$3.99

6

TIRE,R(25X12-10) Substituted by 5411408 (25x12x10)

5410566

Unavailable

7

CONNECTOR LINK

3225024

$19.99

8

VALVE-RIM

1525017

$5.59

8

VALVE-RIM

1525017

$5.59

9

WASHER(10)

7555745

$7.19

9

WASHER(10)

7555745

$7.19

10

NUT, WHEEL(10)

7542714

$1.59

11

WASHER, CONE(10)

7555796

$7.99

11

WASHER, CONE(10)

7555796

$7.99

12

NUT, CASTLE(10)

7543005

Unavailable

12

NUT, CASTLE(10)

7543005

Unavailable

13

PIN, COTTER(10)

7661404

$4.79

13

PIN, COTTER(10)

7661404

$4.79

14

DUSTCOVER, HUB

5411164

$24.27

14

DUSTCOVER, HUB

5411164

$24.27

15

CHAIN, DRIVE, 84P Substituted by 3224056-084

3224047

Unavailable

16

NUT-LOCK(10)

7542439

$1.49

16

NUT-LOCK(10)

7542439

$1.49

17

GUARD,SPKT,34T

5211617-067

$41.59

18

SPACER-SPROCKET GUARD

5630586

Unavailable

19

SPROCKET,34T,(ATV)

3222068

$109.99

20

BOLT(10)

7515540

$4.79

21

SPROCKET HUB ASM. (Incl. 22)

1520170

Unavailable

22

STUD(10)

7515513

$1.49

23

O RING, 1 5/16(10)

5410415

Unavailable

23

O RING, 1 5/16(10)

5410415

Unavailable

24

SEAL, REAR AXLE

3610013

$19.99

24

SEAL, REAR AXLE

3610013

$19.99

25

Bearing, Ball

3515501

$27.99

25

Bearing, Ball

3515501

$27.99

26

TUBE,BEARING SPACER

5010204

Unavailable

27

HOUSING, AXLE

5130663

Unavailable

28

SPACER,BEARING

5010206

$35.99

29

RING, SNAP(10)

7710405

$4.79

30

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

31

AXLE, REAR

5020789

Unavailable

32

RIM-REAR, 8.5/10,SILVER

1520183-117

Unavailable
