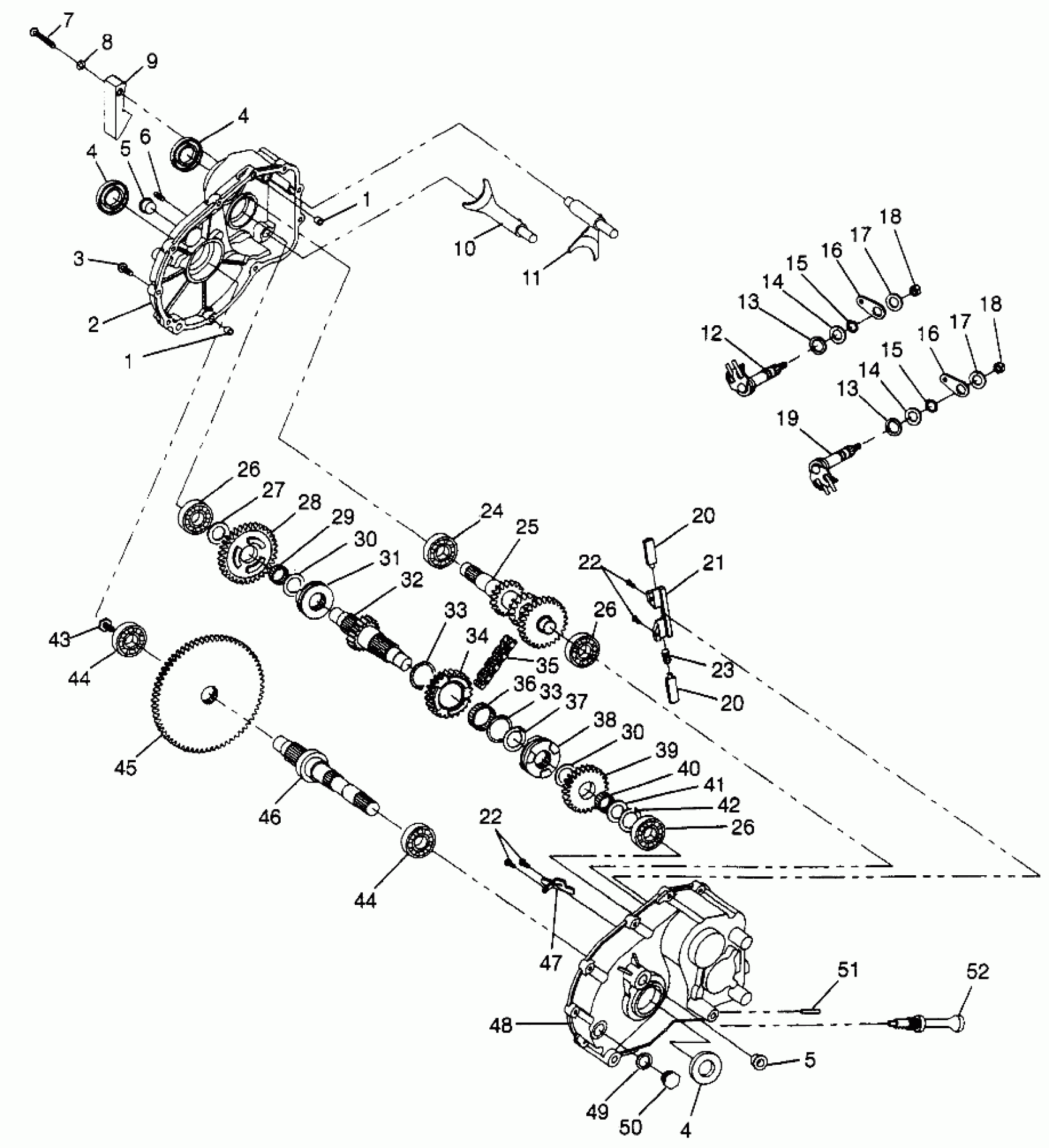

Polaris XPLORER 400L - W97CC38C GEARCASE XPLORER 400L W97CC38C (4939753975C009) Diagram

#

Description
Price

-

GEARCASE ASM,(400) (Incl. 1-52)

1341157

Unavailable

1

PIPE, KNOCK

3233021

Unavailable

1

PIPE, KNOCK

3233021

Unavailable

2

CASE, LH

3233002

Unavailable

3

Screw

3233026

$6.46

4

Seal

3233248

$30.88

4

Seal

3233248

$30.88

4

Seal

3233248

$30.88

5

BUSHING,PIVOT

3233024

Unavailable

5

BUSHING,PIVOT

3233024

Unavailable

6

STUD

3233025

Unavailable

7

BOLT,(10)

7512265

$3.99

8

WASHER(10)

7555827

$3.99

9

DAMPENER,CARBURETOR

5432082

Unavailable

10

SHIFTRAIL,LOW

3233022

Unavailable

11

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

12

SHAFT,LOW SHIFT

3233038

Unavailable

13

O-RING Substituted by 3233548

3233044

Unavailable

13

O-RING Substituted by 3233548

3233044

Unavailable

14

Washer

3233040

$9.59

14

Washer

3233040

$9.59

15

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

15

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

16

Bellcrank

3233153

$27.99

16

Bellcrank

3233153

$27.99

17

Washer

3233054

$6.46

17

Washer

3233054

$6.46

18

Nut

3233055

Unavailable

18

Nut

3233055

Unavailable

19

SHAFT,HI/REV,SHIFT

3233039

Unavailable

20

PIN

3233031

$32.11

20

PIN

3233031

$32.11

21

BRACKET

3233030

$21.43

22

SCREW Substituted by 3233747

3233033

Unavailable

22

SCREW Substituted by 3233747

3233033

Unavailable

23

Spring

3233032

$12.94

24

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

25

SHAFT, INPUT

3233122

Unavailable

26

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

26

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

26

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

27

WASHER

3233007

Unavailable

28

GEAR, 33T

3233125

Unavailable

29

BEARING,NEEDLE

3233009

$39.99

30

Washer

3233010

Unavailable

30

Washer

3233010

Unavailable

31

DOG,ENGAGEMENT,LOW

3233126

Unavailable

32

SHAFT,REVERSE

3233175

$369.99

33

WASHER

3233012

Unavailable

33

WASHER

3233012

Unavailable

34

SPROCKET, 24T

3233127

Unavailable

35

CHAIN,SILENT,34P

3233036

Unavailable

36

BEARING, NEEDLE

3233014

$43.99

37

RING,RETAINING

3233029

$5.59

38

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

39

GEAR, 25T

3233129

Unavailable

40

BEARING,NEEDLE

3233017

$35.99

41

Washer

3233176

$9.59

42

RING,RETAINING

3233177

$6.39

43

BUSHING,SPEEDO.DRIVE

5020741

$9.03

44

BEARING

3233020

$47.99

44

BEARING

3233020

$47.99

45

GEAR, 65T

3233130

$214.75

46

SHAFT,OUTPUT

3233123

Unavailable

47

DEFLECTOR,OIL

3233043

$13.19

48

CASE, RH

3233003

Unavailable

49

Washer

3233035

Unavailable

50

Plug

3233448

$23.99

51

Vent

3233037

Unavailable

52

DIPSTICK Substituted by 3233478

3233115

$24.27
