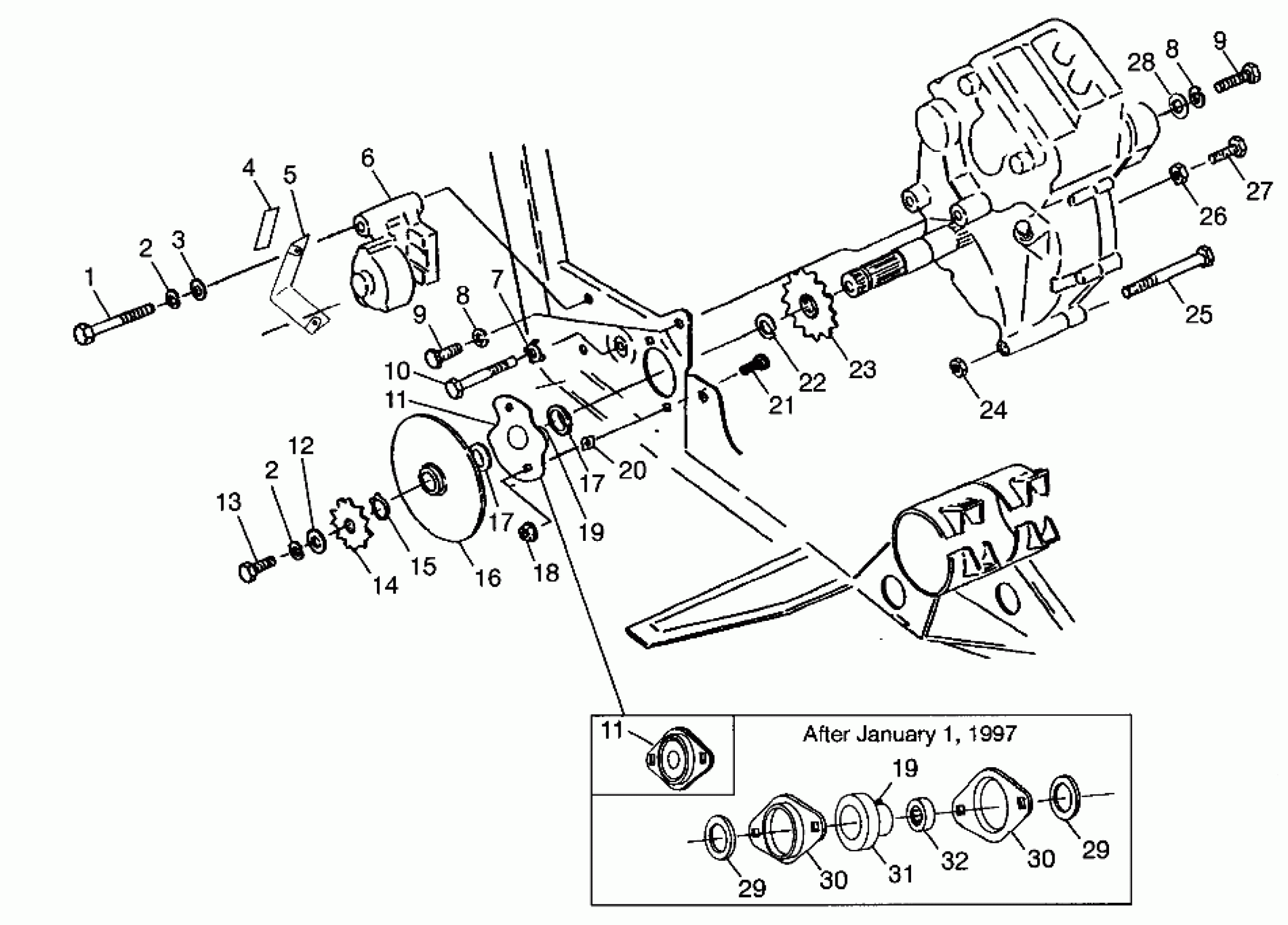

Polaris XPLORER 400L - W97CC38C GEARCASE/BRAKE and CHAIN COVER MOUNTING XPLORER 400L W97CC38C (4939753975C005) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

DECAL,BRAKE SHIELD

7075339

Unavailable

5

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

6

Asm., Brake Caliper, Rear (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

7

Plate, Bolt Lock (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

8

WASHER(10)

7552603

$0.79

8

WASHER(10)

7552603

$0.79

9

BOLT(10)

7515522

$3.97

9

BOLT(10)

7515522

$3.97

10

Bolt, Shoulder (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

11

BRG.ASM,O/P SHAFT (Incl. 20) (Before Jan. 1, 1997)

1590237

$84.99

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (After Jan. 1, 1997)

1590265

Unavailable

11

BRG.ASM,O/P SHAFT (Incl. 20) (Before Jan. 1, 1997)

1590237

$84.99

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (After Jan. 1, 1997)

1590265

Unavailable

12

WASHER FLAT(10)

7555701

$3.97

13

BOLT(10)

7515321

Unavailable

14

SPKT, 11T

3221058

$74.99

15

RING,RETAINING(10)

7710433

$4.76

16

DISC ASM,BRAKE

1910177

Unavailable

17

SEAL, BRAKE (Only w/PN 1590237)

3610026

Unavailable

17

SEAL, BRAKE (Only w/PN 1590237)

3610026

Unavailable

18

NUT,FLANGE LOCK(10)

7542449

$3.97

19

FITTING,LUBE.W/BALL CK.(10) (Only w/PN 1590237)

7080306

$3.17

19

ZERK,FITTING,THREADED(10) (Only w/PN 1590265)

7080433

$1.19

19

FITTING,LUBE.W/BALL CK.(10) (Only w/PN 1590237)

7080306

$3.17

19

ZERK,FITTING,THREADED(10) (Only w/PN 1590265)

7080433

$1.19

20

SPACER,(10)

5210764

Unavailable

20

SHIM,.010,GEARCASE

5211065

Unavailable

20

SHIM,(.030) Note: Use shims only with Output Shaft Bearing PN 1590237

5211517

Unavailable

21

BOLT,CARRIAGE(10)

7515484

Unavailable

22

RING,SNAP(10)

7710434

$3.97

23

SPKT,13T,SPLINED

3221041

Unavailable

24

NUT LOCK(10)

7542403

Unavailable

25

BOLT(10)

7515472

$2.38

26

NUT(10)

7542404

$1.59

27

BOLT(10)

7515485

$3.02

28

WASHER Substituted by 7555720

7555784

$0.79

29

SEAL,BRAKE

3610062

Unavailable

29

SEAL,BRAKE

3610062

Unavailable

30

FLANGETTE,O/P SHAFT BRNG.

5242072

Unavailable

30

FLANGETTE,O/P SHAFT BRNG.

5242072

Unavailable

31

HSG,BRNG,O/P SHAFT

5131643

Unavailable

32

BEARING,NEEDLE

3554202

Unavailable
