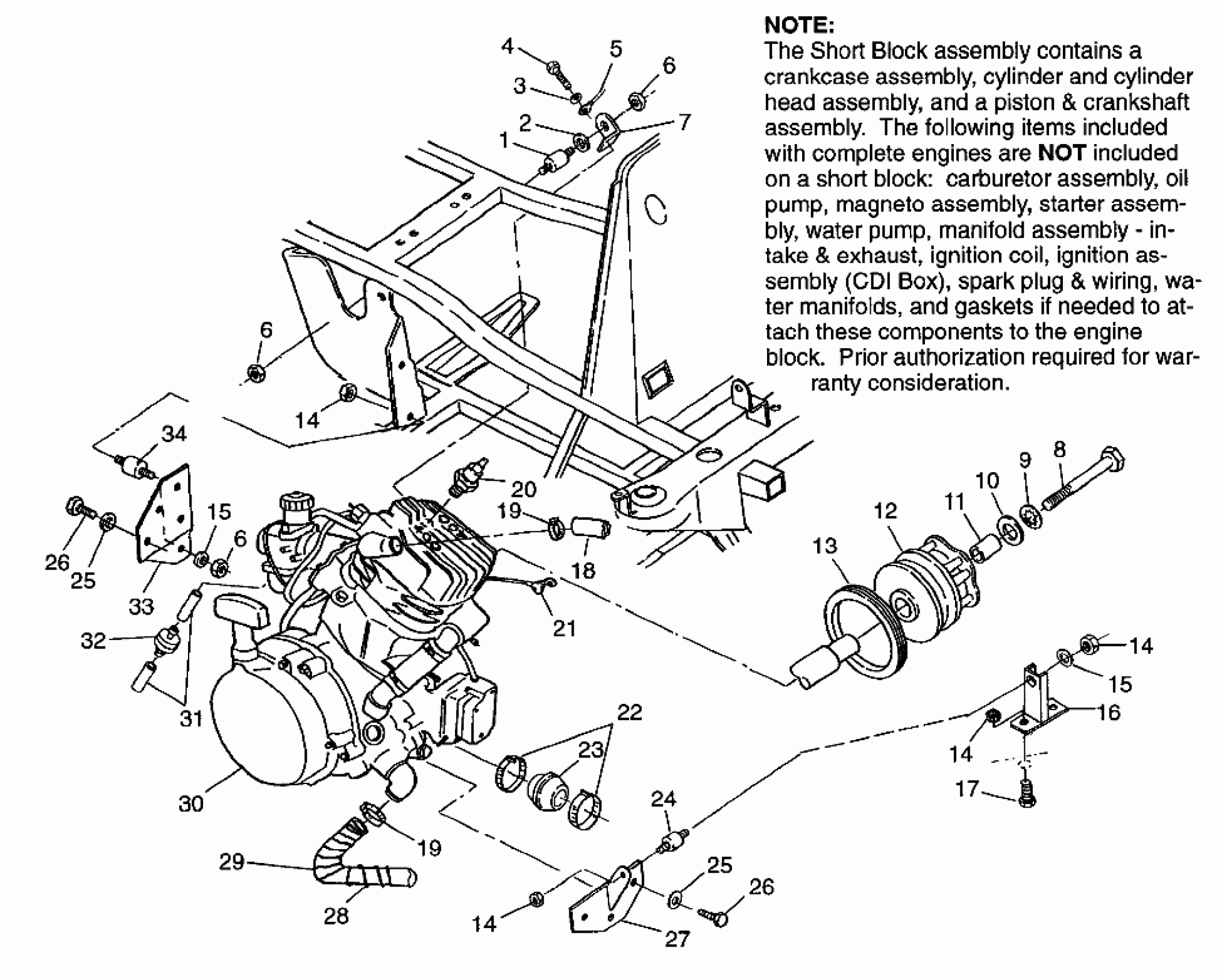

Polaris XPLORER 400L - W97CC38C ENGINE MOUNTING XPLORER 400L W97CC38C (4939753975A010) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

LOCK WASHER(10)

7552901

$1.49

4

BOLT(10)

7515321

$1.49

5

CABLE,GND-ENGINE

4010132

Unavailable

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

MOUNT,ENG,TOP

5241801-067

Unavailable

8

BOLT(10)

7512566

$30.79

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

11

BUSHING-.437 X.770 X.50

5430261

$7.19

12

Asm., Drive Clutch (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

13

Seal, Cover Case (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

15

WASHER(10)

7555806

$1.49

15

WASHER(10)

7555806

$1.49

16

MOUNT,ENG,LOW,BLK

1040532-067

Unavailable

17

BOLT(10)

7512457

$3.99

18

HOSE,ENG,UPPER

5410570

$44.51

19

CLAMP,HOSE,(10)

7080614

$7.19

19

CLAMP,HOSE,(10)

7080614

$7.19

20

SPARKPLUG (10)

3070156

$3.99

21

CABLE,SOL/START,DBLBOOT

4010129

Unavailable

22

CLAMP, NARROW BAND(10)

7080511

$4.79

23

BOOT,CLUTCH INTAKE(400)

5410883

$7.99

24

MOUNT,MOTOR

3110026

Unavailable

25

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

25

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

26

SCREW(10)

7512490

$3.99

26

SCREW(10)

7512490

$3.99

27

MOUNT,ENGINE

1040231-067

Unavailable

28

SPRING,HOSE RETAINER

7041079

$4.95

29

HOSE,LOWER ENGINE

5411173

$91.99

30

ENG.(S.B.)EC38PLE-05 [No Longer Available]

3085234

Unavailable

31

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

32

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

33

MOUNT, REAR MOTOR, BLK.

5240542-067

Unavailable

34

MOUNT,RUBBER,ENG.

3110042

Unavailable
