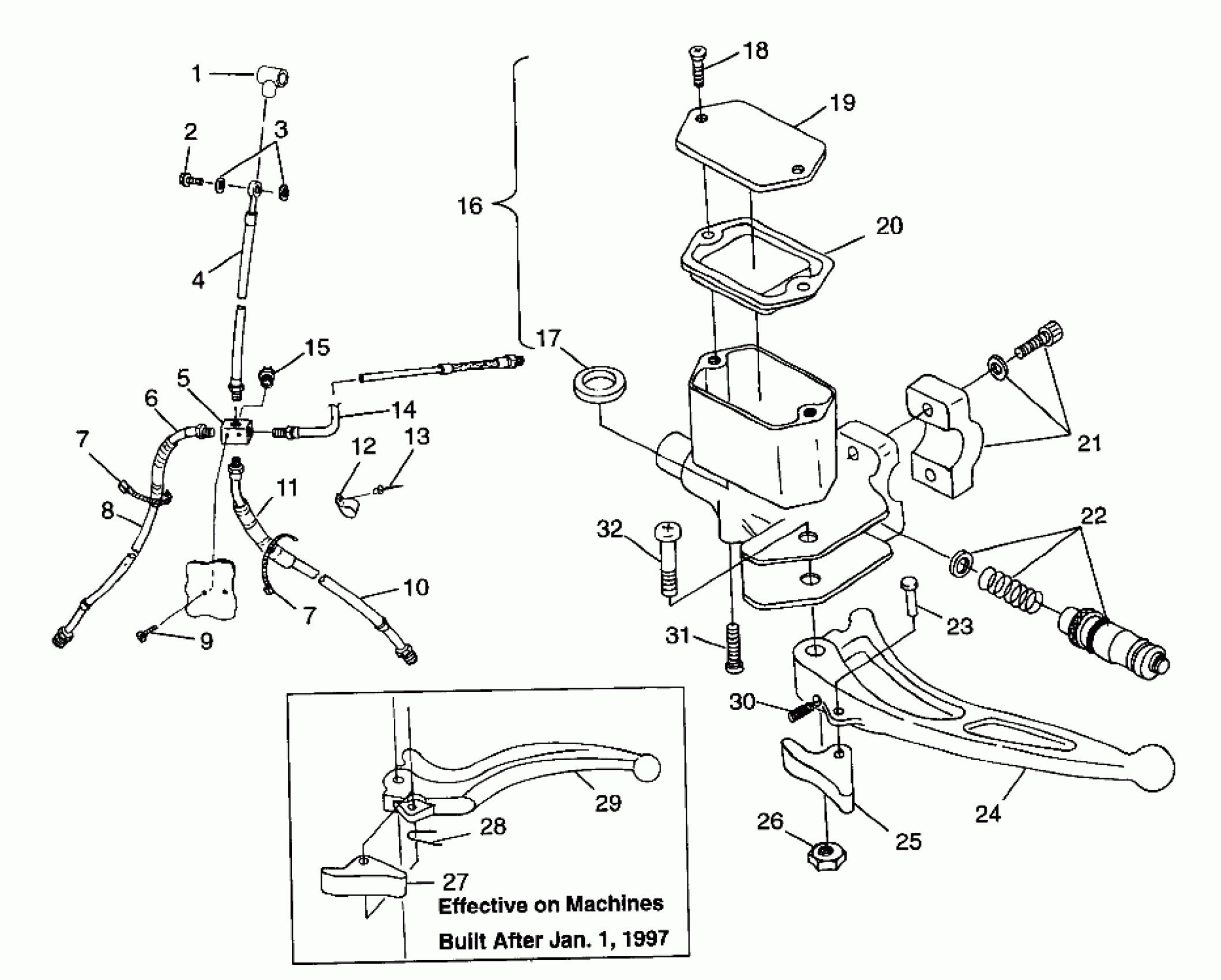

Polaris XPLORER 400L - W97CC38C CONTROLS - MASTER CYLINDER/BRAKE LINE XPLORER 400L W97CC38C (4939753975B009) Diagram

#

Description
Price

-

MASTER CYL.ASM,3/4"BANJO (Incl. 17-32)

2050078

$243.99

1

BOOT,BRAKELINE,RUBBER

5411297

$2.07

2

BOLT,BANJO,BRAKE

1930674

Unavailable

3

Seal

5410988

$4.84

4

LINE,HYD.BRAKE,POD Substituted by 1930817

1930760

Unavailable

5

FITTING,CROSS INVERT.FLARE

7052103

Unavailable

6

LINE,BRAKE,RH,FR.W/FITTINGS

1930753

$87.99

7

STRAP, BLK

7080272

Unavailable

7

STRAP, BLK

7080272

Unavailable

8

CONDUIT, 38 CM.

8360031-38

$2.63

9

SCREW(10)

7512027

$1.49

10

LINE,BRAKE,LH,FR,W/FITTINGS

1930752

$87.99

11

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

12

CLAMP,NYLON,CABLE(10)

7080539

$4.79

13

RIVET(50)

7621462

$1.49

14

LINE,BRAKE,REAR

1930751

Unavailable

15

SWITCH,STOPLIGHT

4110164

Unavailable

16

KIT,MASTER CYL RES. (Incl. 17-20)

2200809

$68.79

17

Ring, Square, Master Cylinder

-------

Unavailable

18

KIT,BOLT(2),RES.CAP,MCYL

1930797

$11.19

19

CAP,M.CYL.RES.

1930796

Unavailable

20

DIAPHRAGM,M.CYL.RES.

1930795

$44.51

21

KIT,M.CYL.CLAMP

2200808

Unavailable

22

KIT,M.CYL.REBUILD Substituted by 1930799

2200810

$89.03

23

Rivet

1930804

Unavailable

24

KIT,M.CYL LEVER Substituted by 2201034 (Incl. 23, 25, 30)

2200811

$61.77

25

LEVER,PARKBRAKE Substituted by 2201034

1930802

$61.77

26

NUT,M.CYL.HANDLE PIVOT

1930806

Unavailable

27

KIT,LEVER,PARKBRAKE

2201090

$40.46

28

Spring

-------

Unavailable

29

KIT,LEVER (Incl. 23, 27-29)

2201034

$63.99

30

SPRING,PARKING BRAKE Substituted by 2201034

1930803

$61.77

31

BOLT,MCYL.RESERVOIR,KIT

1930792

$23.99

32

BOLT,M.CYL.HANDLE PIVOT

1930805

Unavailable
