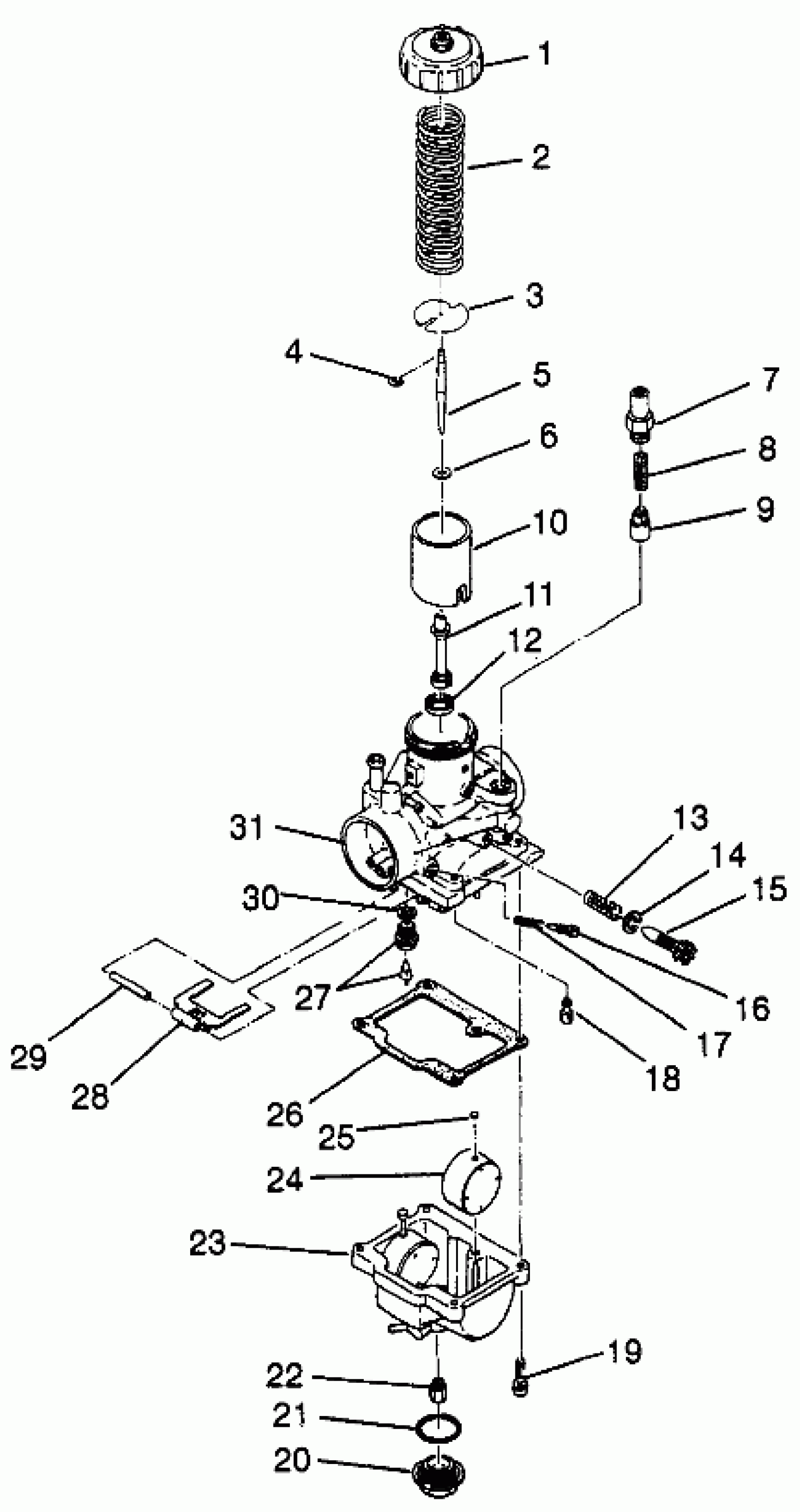

Polaris XPLORER 400L - W97CC38C CARBURETOR XPLORER 400L W97CC38C (4939753975D003) Diagram

#

Description
Price

1

TOP ASM

3130184

$32.37

2

Spring, Throttle

3130496

$28.32

3

PLATE (Throttle)

3130027

$9.70

4

E RING(10) Substituted by 3130508

3130003

Unavailable

5

JET NEEDLE (6CEY6-3)

3130476

$24.27

6

Washer

3130355

$7.19

7

HOLDER,GUIDE

3130199

$28.32

8

SPRING,PLUNGER

3130006

$8.89

9

PLUNGER ASM, STARTER

3130328

$32.37

10

VALVE,THROTTLE,(1.5) (1.5)

3130494

Unavailable

11

NEEDLE JET ASM. (480)

3130429

Unavailable

12

RING,MAIN JET

3130596

Unavailable

13

SPRING,THROT.ADJ.

3130436

Unavailable

14

Washer

3130447

Unavailable

15

SCREW,THROTTLE STOP

3130009

$19.99

16

SCREW,AIR

3130011

$19.99

17

SPRING,AIR ADJUST

3130012

$8.89

18

JET,PILOT,#30(10) (#30)

3130065

$8.89

19

SCREW & WASHER(10)

3130025

$3.19

20

Screw, Guide

3130432

$27.99

21

O RING

3130239

Unavailable

22

JET,MAIN,HX.HD#200(10) (#200)

3130123

$7.27

23

BOWL, FLOAT (350)

3130443

Unavailable

24

FLOAT ASM.

3130430

$43.56

25

CAP,(10)

3130237

$4.03

26

PACKING,FLOAT CHAMBER

3130020

$16.17

27

NEEDLE VALVE ASM.(2.5) (2.5)

3130495

$65.63

28

ARM,FLOAT

3130018

$24.27

29

PIN, FLOAT

3130361

$8.89

30

WASHER(10)

3130047

$4.84

31

CARBURETOR (Incl. 1-31)

3130710

Unavailable
