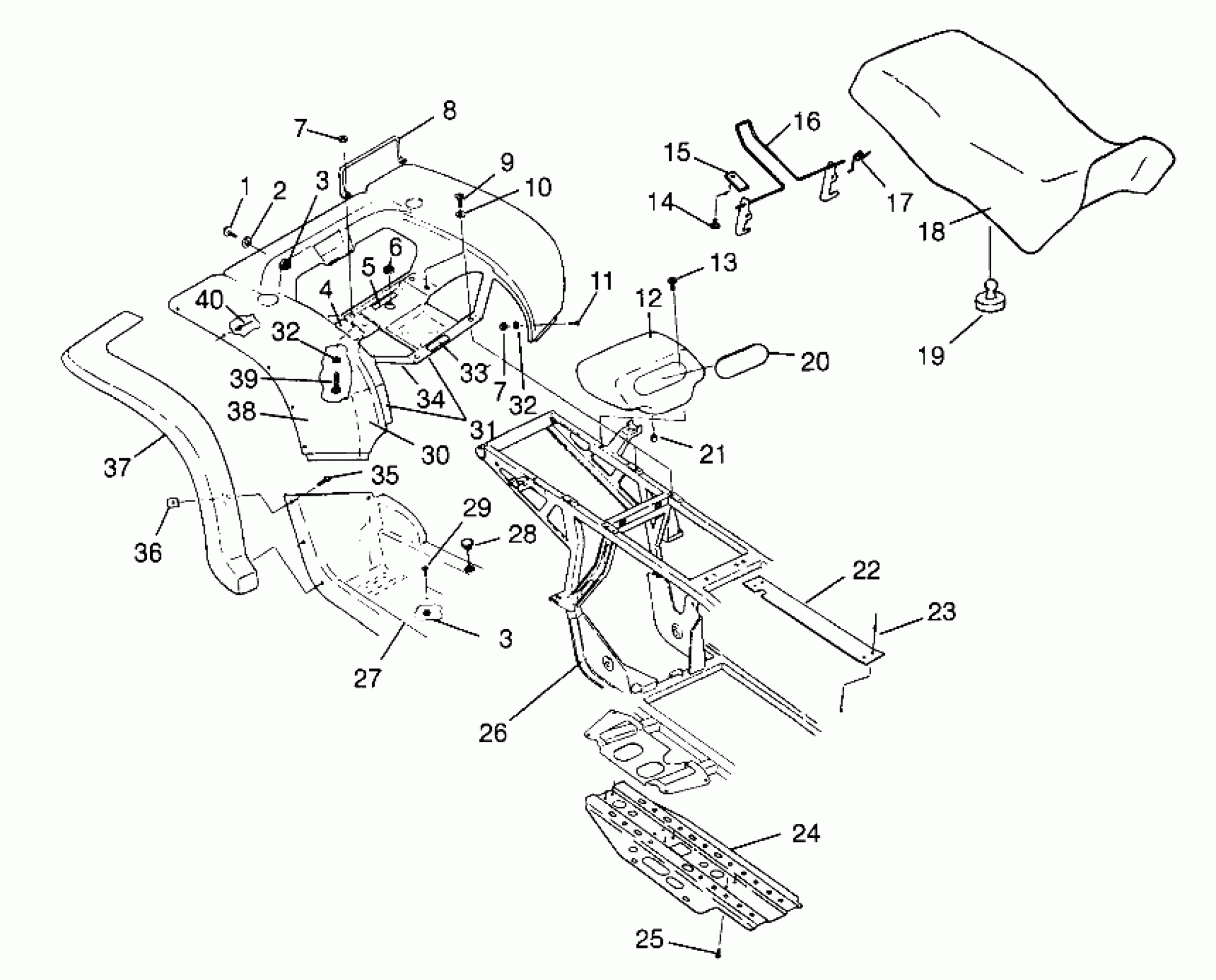

Polaris XPLORER 400L - W969140 REAR CAB and SEAT XPLORER 400L W969140 (4935983598A006) Diagram

#

Description
Price

1

BOLT(10)

7512261

Unavailable

2

WASHER(10) Substituted by 7558301

7555776

$1.19

3

NUT-LOCK(10)

7542122

$1.19

3

NUT-LOCK(10)

7542122

$1.19

4

FOIL,REAR CAB,REAR

5811107

Unavailable

5

DECAL,CARB.INFO.

7073761

Unavailable

6

Grommet

5411042

$6.35

7

NUT(10)

7541925

$0.79

7

NUT(10)

7541925

$0.79

8

RETAINER,SEAT LATCH

5224592

Unavailable

9

SCREW(10)

7515180

Unavailable

10

WASHER, FLAT(10)

7555859

$1.19

11

SCREW(10) Substituted by 7511989

7512085

Unavailable

12

TOOLBOX

5431786

$53.17

13

BOLT(10)

7512246

Unavailable

14

BLIND RIVET(50)

7621403

$1.19

15

BRACKET,LEVER RETAINER

5211033

$34.99

16

LATCH,SEAT

1040387

$48.56

17

SPRING, LATCH

7041370

$9.52

18

COVER,SEAT,BLK. (w/Label)

2681747-070

$149.75

18

FOIL,SEATBASE,LG.

5811104

Unavailable

18

FOIL,SEATBASE,SM.

5811105

$9.84

18

SEAT ASM,BLK. Substituted by 2682201-070 (Incl. 14-19)

2681746-070

$445.22

19

Bumper, Rubber

5410414

$3.17

20

COVER, TOOLBOX

5431787

Unavailable

21

CAP,DRAIN

5410896

$5.65

22

GUARD-CLUTCH, BLK

5241403-067

$5.71

23

RIVET,INTERLOCK,B(50)

7661638

$1.19

24

GUARD,ROCK,BLK.

5240560-067

$87.99

25

BOLT(10)

7512232

$1.19

26

FRAME,MAIN,(400 4X4),BLK

1040505-067

Unavailable

27

FOOTWELL,LH,NY,BLK.

5432056-070

$230.70

27

FOOTWELL,RH,BLK.NYLON

5432374-070

Unavailable

28

PLUG, HOLE

5411009

Unavailable

29

SCREW(10)

7512279

$0.79

30

FOIL FOAM

5811111

Unavailable

31

FOIL,FR,REAR CAB

5811106

Unavailable

32

WASHER(10)

7555792

$4.76

32

WASHER(10)

7555792

$4.76

33

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

34

FOIL-FOAM,(6X1)

5811087

Unavailable

35

SCREW(10)

7522026

$4.76

36

NUT, SPEED(10)

7670057

$1.19

37

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

37

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable

38

CAB,REAR,GEN IV,P.RED

5432663-136

Unavailable

39

SCREW(10)

7511930

$2.38

40

RIVET(50)

7661645

Unavailable
