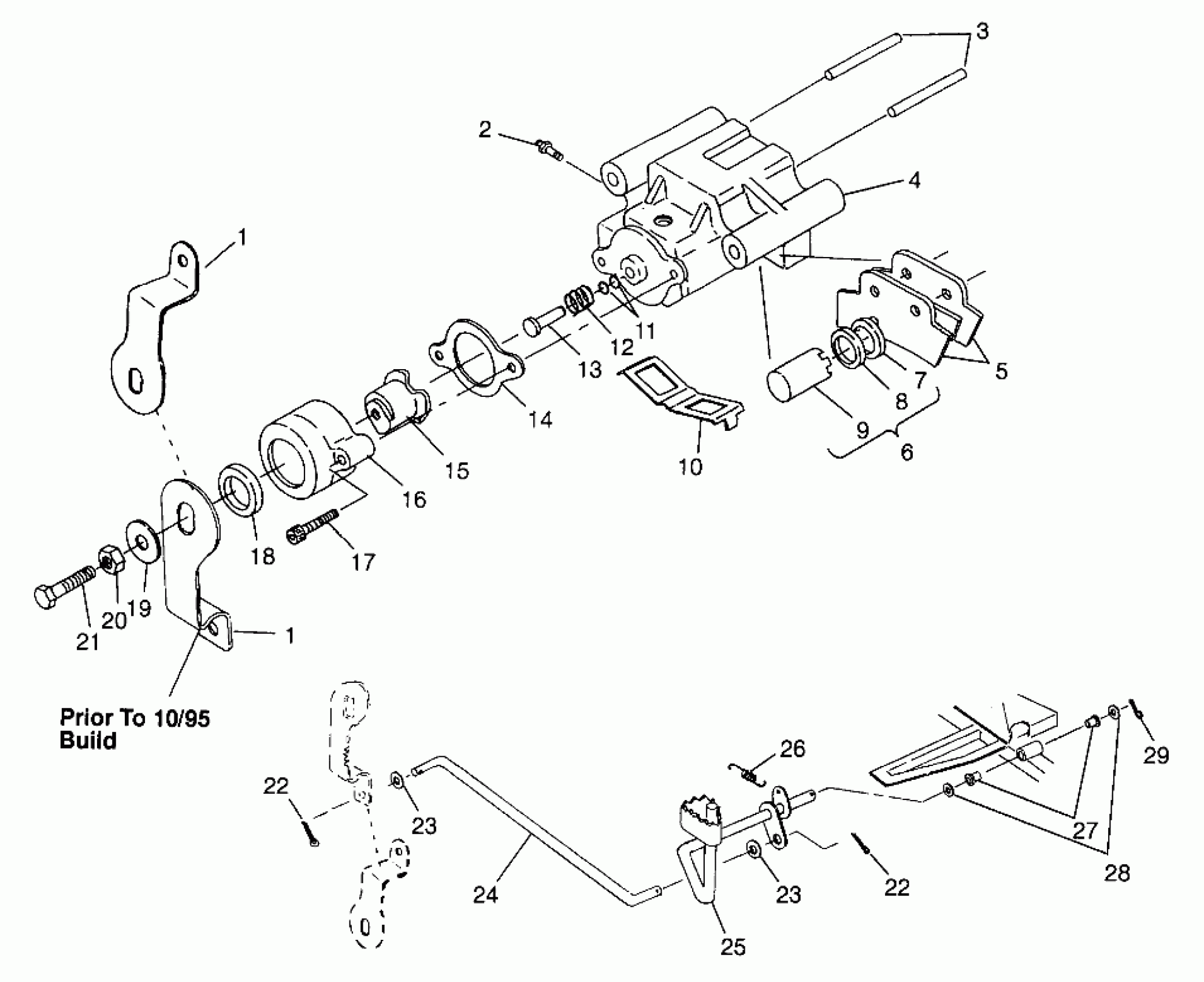

Polaris XPLORER 400L - W969140 REAR BRAKE XPLORER 400L W969140 (4935983598C006) Diagram

#

Description
Price

1

ARM, BRAKE CALIPER (After 10/95 Build)

5211692

Unavailable

1

ARM,BRAKE CALIPER (Prior To 10/95 Build)

5240624

Unavailable

1

ARM, BRAKE CALIPER (After 10/95 Build)

5211692

Unavailable

1

ARM,BRAKE CALIPER (Prior To 10/95 Build)

5240624

Unavailable

2

SCREW,BLEEDER

7080352

$3.17

3

PIN, DOWEL(10)

7661820

$13.99

4

CALIPER,R.BRAKE,MACH

5131272

Unavailable

4

CALIPER ASM,R.BRAKE Substituted by 1910226

1910209

Unavailable

5

KIT,R.BRAKEPAD,HVY.DUTY

2200899

Unavailable

6

KIT-PISTON & SEAL (Incl. 7-9)

2200463

$97.76

7

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$12.13

8

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

$97.76

9

PISTON,BRAKE Substituted by 2200463

5020667

$97.76

10

SPRING,ANTI-RATTLE

5240993

Unavailable

11

O RING-.364X.504X.07

5410542

$4.84

12

SPRING,BRAKE,COMP.

7041219

Unavailable

13

PIN,BRAKE CALIPER

5020666

Unavailable

14

GASKET, BRAKE

5830009

Unavailable

15

RAMP,MOVEABLE BRAKE Substituted by 2200905

5630458

Unavailable

16

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

17

SCREW(10)

7512173

Unavailable

18

SEAL, BRAKE

3610026

Unavailable

19

WASHER, SPRING(10)

7555828

Unavailable

20

NUT(10)

7542129

$4.76

21

BOLT

7515145

Unavailable

22

PIN-COTTER(10)

7661205

$0.79

22

PIN-COTTER(10)

7661205

$0.79

23

WASHER(10)

7555827

$3.97

23

WASHER(10)

7555827

$3.97

24

ROD, BRAKE (After 10/95 Build)

5241621

$51.59

24

ROD,BRAKE (Prior To 10/95 Build)

5224638

Unavailable

25

BRAKE,FOOT,BLK (After 10/95 Build)

1040514-067

$159.99

25

FOOTBRAKE,BLK. (Prior To 10/95 Build)

1910144-067

Unavailable

26

SPRING-EXHAUST(10)

7042029

$5.65

27

BUSHING-PEDAL PIVOT

5431107

$8.73

28

WASHER(10)

7555919

$4.99

29

COTTER PIN(10)

7661401

$0.79
