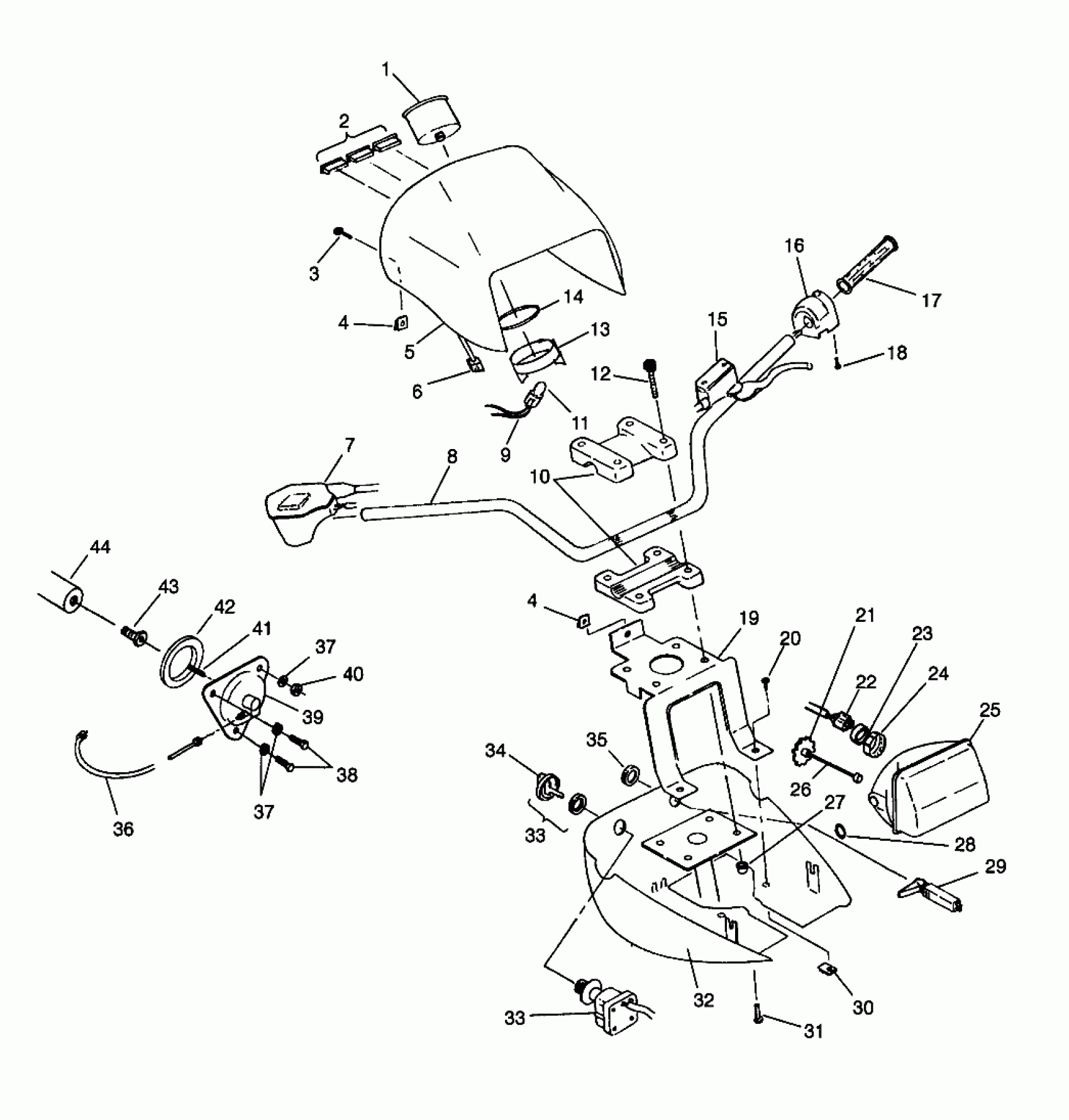

Polaris XPLORER 400L - W969140 HANDLEBAR and HEADLIGHT POD XPLORER 400L W969140 (4935983598B010) Diagram

#

Description
Price

1

SPEEDO.ASM, 3" Substituted by 3280326 (Incl. 13, 14)

3280172

$237.30

2

INDIC"HOT TEMPERATURE"

4040053

$32.37

2

INDIC"NEUT./REV."

4040054

$32.37

2

INDIC"LOW OIL&HI-BEAM."

4040052

$32.37

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.19

4

NUT

7670086

$3.97

4

NUT

7670086

$3.97

5

POD,H/L,UP.,RED

5431812-136

Unavailable

6

HARNESS,WIRE,UPP.INDIC.

2460540

Unavailable

7

Asm. Throttle Control (See Pg., Ref.)

----

Unavailable

8

TUBE,H'BAR,BLK. Substituted by 5242987-067

5224607-067

$119.99

9

HARNESS, SPEEDO

2460387

Unavailable

10

KIT,H'BAR BLOCK (Incl. Blocks, 12, 27)

2200774

Unavailable

10

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

11

BULB TAILLIGHT(10)

4030015

$4.03

12

SCREW(10)

7515188

$2.38

13

CLAMP,BACK,SPEEDO.

3280175

Unavailable

14

GASKET,SHOCK MT.

3280174

$6.26

15

Asm., Master Cylinder (See Pg. for Details)

----

Unavailable

16

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

17

GRIP, HANDLEBAR

5431030

$28.32

18

SCREW

2010055

Unavailable

19

BRKT,POD MTG,BLK.

5240586-067

$44.99

20

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

21

KNOB,ADJUSTING

4032079

$28.32

22

HARNESS,WIRE,LOW.INDIC.

2460539

Unavailable

23

BOOT, HEADLIGHT

5411120

$28.32

24

COLLAR,LOCK

4032077

$27.78

25

BULB,QUARTZ.H/L,INDY

2870448

$24.99

25

LENS&REFLECTOR ASM.

4032075

Unavailable

26

ROD,ADJUSTING

4032078

Unavailable

27

NUT(10)

7542124

$1.19

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$28.32

29

CABLE,CHOKE CONTROL

7080579

$97.13

30

NUT,U-TYPE(10)

7670089

$5.56

31

SCREW(10)

7522021

Unavailable

32

POD,H/L,LOW,BLK.

5431811-070

Unavailable

33

SWITCH, IGNITION (Incl. Key) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110194

Unavailable

33

SWITCH, IGNITION (Incl. Key) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110194

Unavailable

34

COVER, KEY Substituted by 5433534

5431964

$13.75

35

Nut

7080229

$19.84

36

CABLE,SPEEDO.

3280216

Unavailable

37

WASHER(10)

7555725

Unavailable

37

WASHER(10)

7555725

Unavailable

38

BOLT(10)

7515378

$1.37

39

ADAPTER,DRIVE(1:1.0)

3280218

Unavailable

40

NUT-5/16-18 NYLOK-Y

7542324

$0.79

41

KEY,SPEEDO.DRIVE

3280217

Unavailable

42

SEAL,ANGLE DRIVE

3280164

Unavailable

43

BUSHING,SPEEDO.DRIVE

5020741

$8.97

44

Shaft, Output, Transmission (See Pg., Ref.)

----

Unavailable
