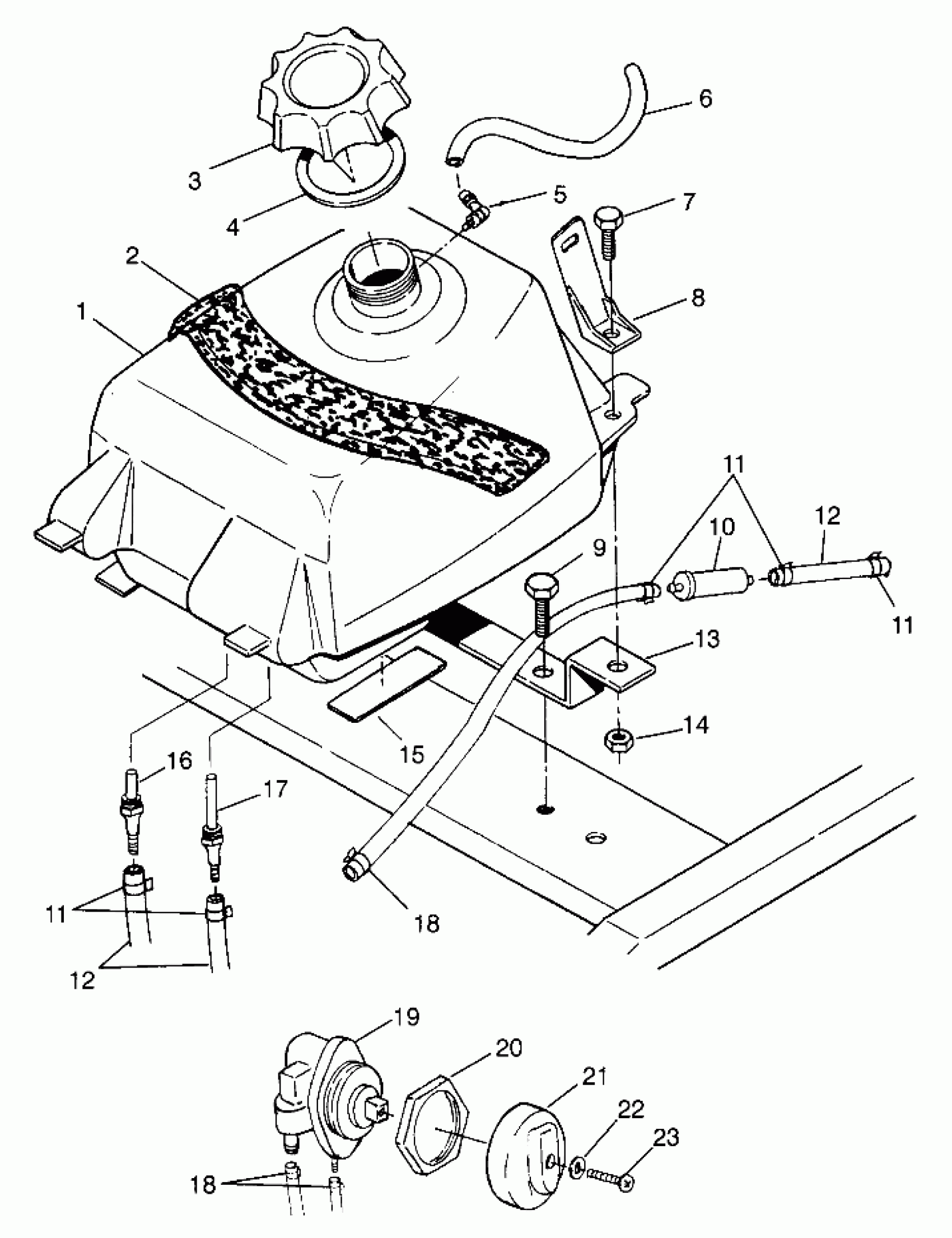

Polaris XPLORER 400L - W969140 FUEL TANK XPLORER 400L W969140 (4935983598A013) Diagram

#

Description
Price

1

TANK, FUEL (Incl. 5, 17, 16)

2511244

Unavailable

2

Foam, Seal

5811052

Unavailable

3

CAP, GAS, (BLACK)

5430725

$24.27

4

GASKET-GAS CAP

5810144

$5.59

5

Vent, Tank

5431053

$19.99

6

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

7

SCREW(10)

7512310

$2.39

8

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

8

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

9

BOLT(10)

7512232

$1.49

10

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

12

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

12

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

13

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

PAD,BULK FUEL

8360026

Unavailable

16

FITTING,FUEL OUT,RES.,Z (White)

7052149

$23.99

17

FITTING,FUEL OUT,MAIN,Y (Black)

7052146

$27.99

18

CLAMP, HOSE, S.S.(10)

7080476

$6.39

18

CLAMP, HOSE, S.S.(10)

7080476

$6.39

19

VALVE, CHECK

7052063

Unavailable

20

NUT, FUEL VALVE

5431451

Unavailable

21

KNOB,FUEL VALVE Substituted by 5432559

5431807

Unavailable

22

WASHER, FLAT, S.S.(10)

7555840

$3.35

23

SCREW, S.S.(10)

7516302

$3.99
