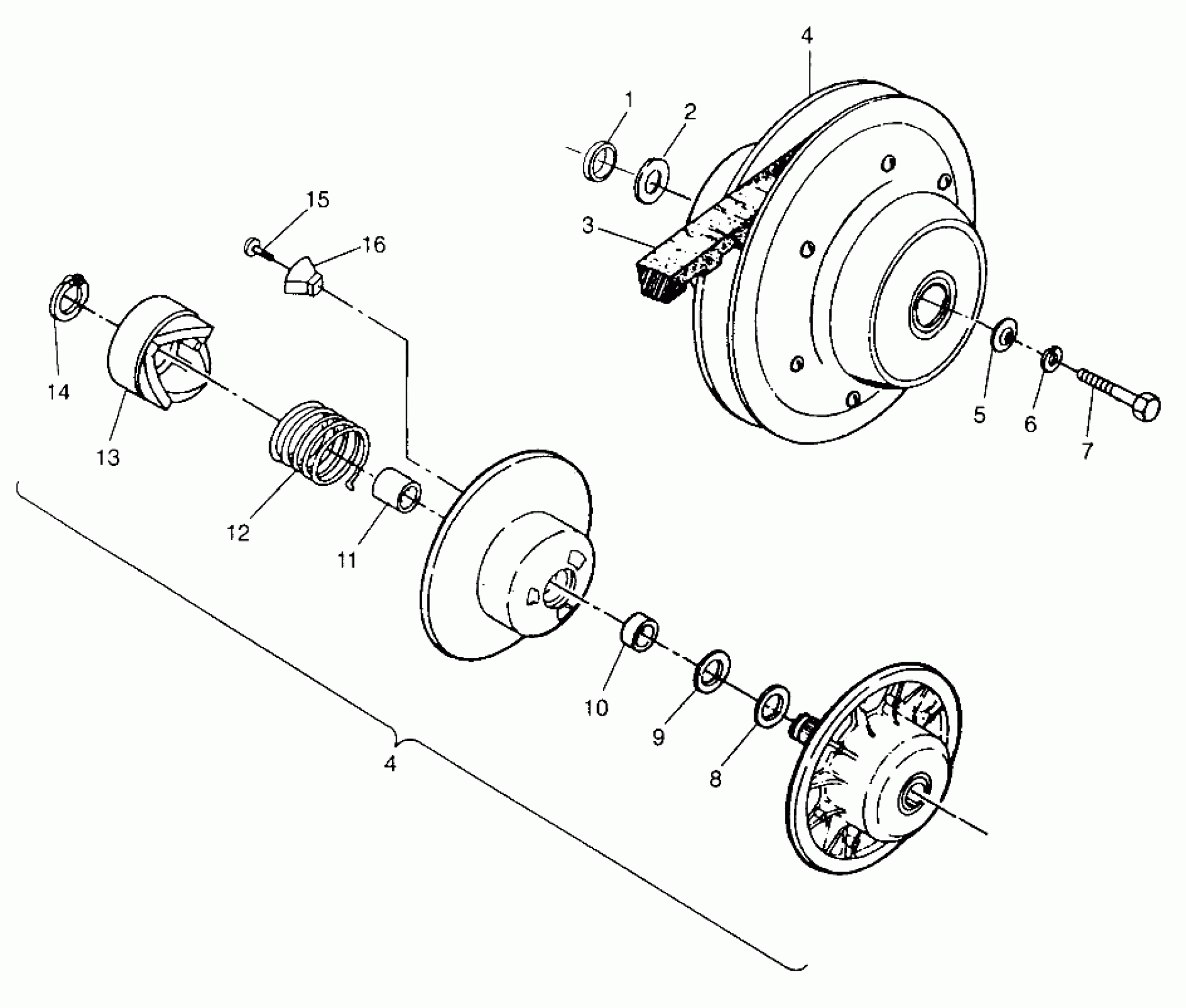

Polaris XPLORER 400L - W969140 DRIVEN CLUTCH XPLORER 400L W969140 (4935983598C003) Diagram

SPACER,DRIVEN CLUTCH

5010379

Unavailable

BUSHING(10)

7556401

Unavailable

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

CLUTCH,DRIVEN,3 ANGLE Substituted by 1322182 (Incl. 8-16)

1322163

$614.99

CLUTCH,DRIVEN,3 ANGLE Substituted by 1322182 (Incl. 8-16)

1322163

$614.99

WASHER, DOMED(10)

5220646

$2.39

LOCK WASHER(10)

7552901

$1.49

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

WASHER(10)

7555898

Unavailable

WASHER(10)

7556804

Unavailable

BUSHING, DRIVEN

3576504

$23.99

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

SPRING,CLUTCH,(RED)

7041198

$52.60

RAMP,STATIONARY Substituted by 5131447

5630321

$77.21

RETAINING RING(10)

7714401

$2.63

BOLT(10)

7511854

$1.49

BUTTON,RAMP

5430766

Unavailable
