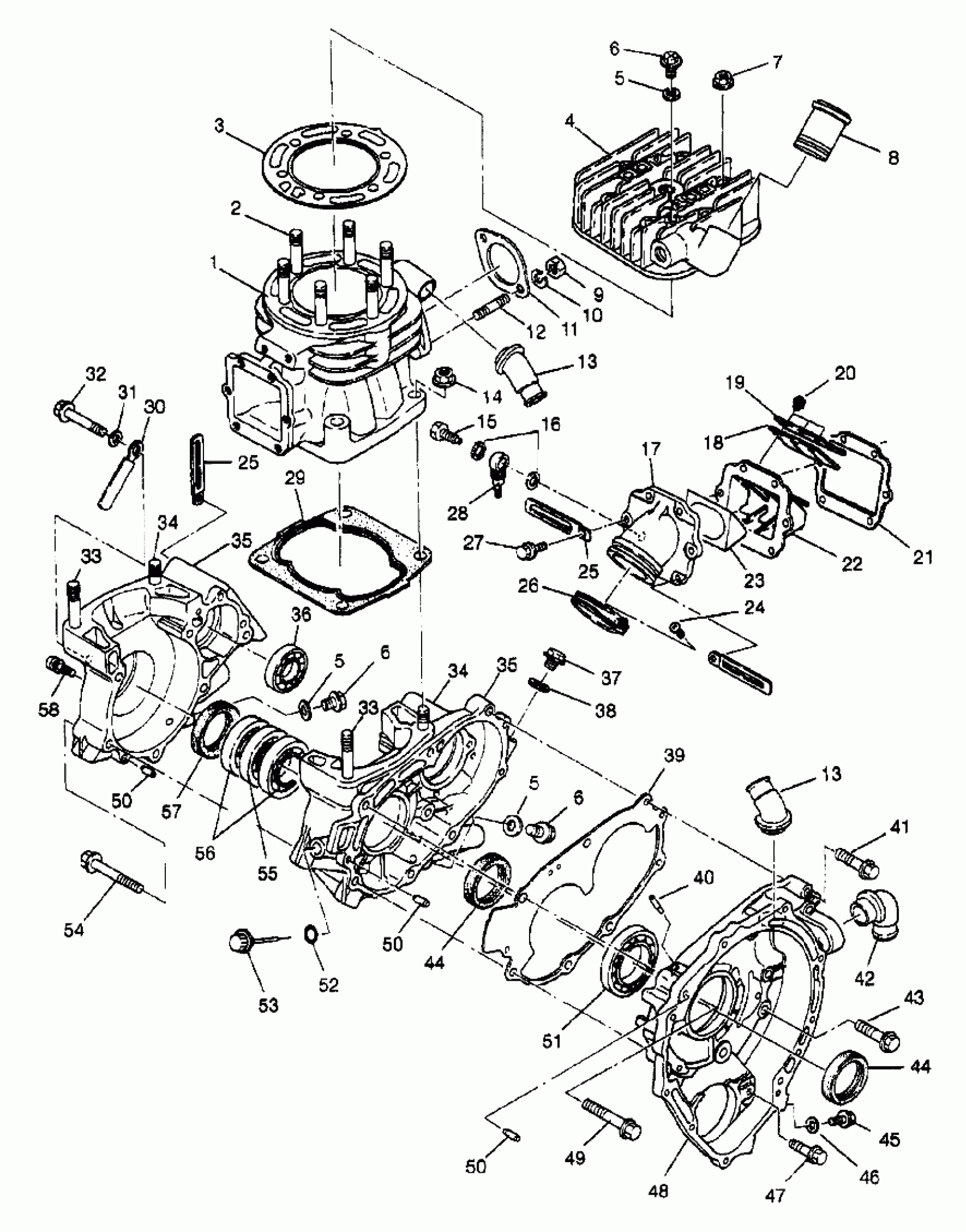

Polaris XPLORER 400L - W969140 CRANKCASE and CYLINDER XPLORER 400L W969140 (4935983598C013) Diagram

#

Description
Price

1

CYLINDER Substituted by 3086753 (Incl. 2, 12, 13)

3085276

Unavailable

2

Stud

3084138

Unavailable

3

GASKET,HEAD (Head)

3084731

Unavailable

4

HEAD, CYLINDER Substituted by 3086755 (Incl. 8)

3084730

Unavailable

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

6

PLUG, DRAIN

3083767

Unavailable

6

PLUG, DRAIN

3083767

Unavailable

6

PLUG, DRAIN

3083767

Unavailable

7

NUT-FLANGE(10)

3082910

Unavailable

8

Pipe, Water

3083452

Unavailable

9

NUT(10)

3080285

Unavailable

10

WASHER LOCK ,(10)

3080530

$3.17

11

GASKET,EXHAUST Substituted by 3084439

3084017

Unavailable

12

STUD (10)

3080016

$5.71

13

PIPE, 1 ELBOW Substituted by 3086746

3084129

$45.24

13

PIPE, 1 ELBOW Substituted by 3086746

3084129

$45.24

14

NUT-FLANGE(10)

3082911

$1.99

15

BOLT-BANJO

3083137

Unavailable

16

WASHER(10) Substituted by 7555998

3083138

$1.19

17

ADAPTER, CARB.

3085277

Unavailable

18

VALVE, REED(10)

3240064

Unavailable

19

Stopper

3240065

Unavailable

20

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

21

GASKET, REED VALVE,(10)

3084148

Unavailable

22

VALVE ASM., REED (Incl. 18-20)

3084147

Unavailable

23

STUFFER,(REED VALVE ASM.)

3240164

$12.39

24

SCREW,(10)

3081497

$2.38

25

Clamp

3083590

$3.97

25

Clamp

3083590

$3.97

26

BAND ASM. (Incl. 24)

3084144

Unavailable

27

BOLT, FLANGE Substituted by 3086759

3084145

Unavailable

28

VALVE, CHECK

3083894

Unavailable

29

GASKET,CYLINDER

3084729

$48.56

30

Clamp

3083384

Unavailable

31

WASHER(10)

3080142

Unavailable

32

Bolt, Flange

3084124

Unavailable

33

Stud

3084118

Unavailable

33

Stud

3084118

Unavailable

34

Stud

3084119

$9.52

34

Stud

3084119

$9.52

35

CRANKCASE ASM. Substituted by 3086740 (Incl. 5, 6, 32-36, 44, 47, 54-57)

3084774

Unavailable

35

CRANKCASE ASM. Substituted by 3086740 (Incl. 5, 6, 32-36, 44, 47, 54-57)

3084774

Unavailable

36

Bearing, Ball

3084123

Unavailable

37

PLUG Substituted by 3086749

3083453

Unavailable

38

GASKET

3082956

$4.84

39

GASKET,(CASE 3) Substituted by 3086748

3084727

Unavailable

40

Pipe, Breather

3084128

Unavailable

41

BOLT, FLANGE Substituted by 3086751

3084177

Unavailable

42

PIPE, 2 ELBOW Substituted by 3086747

3084130

Unavailable

43

BOLT, FLANGE ,(10)

3084435

Unavailable

44

Seal, Oil

3084120

Unavailable

44

Seal, Oil

3084120

Unavailable

45

PLUG

3085152

Unavailable

46

GASKET,ALUMINUM(10)

3083482

Unavailable

47

Bolt, Flange

3084126

$1.98

48

CRANKCASE 3 Substituted by 3087149 (Incl. 13, 40, 42, 44, 45, 46, 50, 51)

3085278

Unavailable

49

Bolt, Flange

3084134

Unavailable

50

PIN, DOWEL Substituted by 3086838

3080103

$7.14

50

PIN, DOWEL Substituted by 3086838

3080103

$7.14

50

PIN, DOWEL Substituted by 3086838

3080103

$7.14

51

Bearing, Ball

3084131

Unavailable

52

O-Ring

3084733

Unavailable

53

GAUGE, OIL Substituted by 3085517 (Incl. 52)

3084732

Unavailable

54

BOLT, FLANGE Substituted by 3086742

3084125

Unavailable

55

Bearing, Ball

3084775

$43.65

56

Bearing, Ball

3084121

$39.68

57

Seal, Oil

3084725

Unavailable

58

SCREW & WASHER(10)

3084205

$3.97
