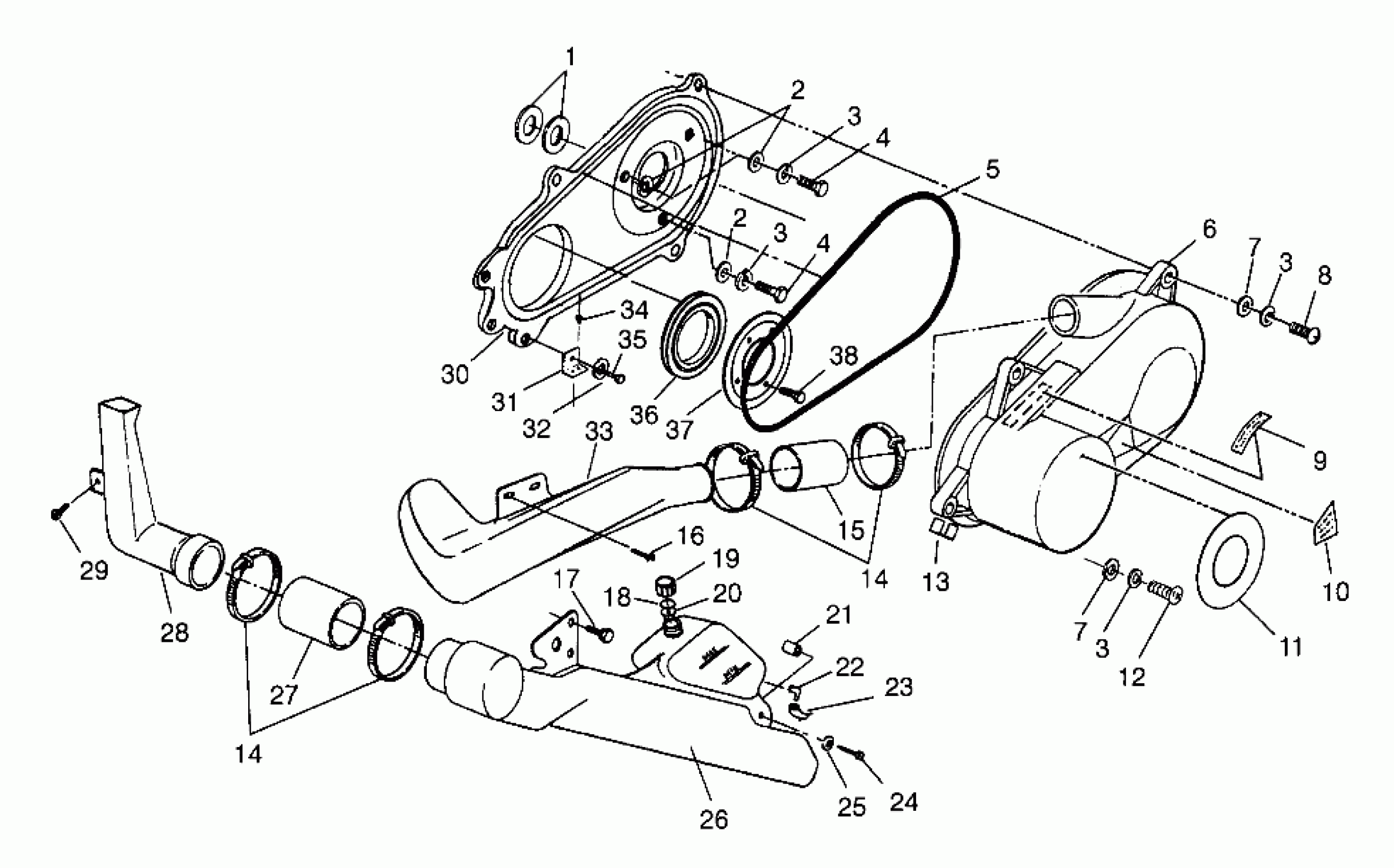

Polaris XPLORER 400L - W969140 CLUTCH COVER XPLORER 400L W969140 (4935983598C004) Diagram

#

Description
Price

1

SEAL,COVER CASE

5410489

$13.75

1

SEAL,CVR,CASE 1/2

5411180

$24.27

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

3

WASHER(10)

7552605

$5.69

3

WASHER(10)

7552605

$5.69

3

WASHER(10)

7552605

$5.69

3

WASHER(10)

7552605

$5.69

4

SCREW(10)

7515180

Unavailable

4

SCREW(10)

7515180

Unavailable

5

SEAL,CLUTCHCOVER

5521301

$32.37

6

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$190.22

7

WASHER(10) Substituted by 7558301

7555776

$1.19

7

WASHER(10) Substituted by 7558301

7555776

$1.19

8

SCREW(10) (Cover, Clutch Inner, w/o Insert)

7512093

$1.19

8

SCREW (10) Substituted by 7512281 (Cover, Clutch Inner, w/Insert)

7515176

$3.97

9

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

10

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

11

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

12

SCREW(10) (Cover, Clutch Inner, w/o Insert)

7512094

$1.59

12

SCREW(10) (Cover Clutch Inner, w/Insert)

7515186

Unavailable

13

CLIP,CLUTCH COVER(10)

7670051

Unavailable

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

BOOT,CLUTCH INTAKE

5410421

$11.32

16

SCREW(10)

7512252

Unavailable

17

SCREW,(10)

7512024

$4.76

18

GASKET-OVERFLOW CAP

5810279

$2.41

19

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

20

PLUG,CAP Substituted by 5433774

5431895

$5.65

21

SPACER, NYLON(10) [No Longer Available]

5432375

Unavailable

22

FITTING,90 DEGREE

7052065

$7.14

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$89.99

24

SCREW(10)

7512025

$4.76

25

WASHER(10)

7555783

$3.97

26

DUCT,INLET,DOWNTUBE

5432336

$133.56

27

BOOT, INTAKE

5410509

Unavailable

28

DUCT,INLET,TOP

5431794

Unavailable

29

SCREW(10)

7512017

$4.76

30

COVER,INNER CLUTCH Substituted by 2200790

5432276

$149.75

30

DESC NOT_AVAILABLE

5432389

$149.75

31

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

32

WASHER(10)

7555935

$2.38

33

DUCT, AIR OUTLET, CLUTCH Substituted by 5432615

5431671

Unavailable

34

RIVET,INTERLOCK,B(50)

7661638

$1.19

35

SCREW(10) (Cover, Clutch Inner, w/o Insert)

7512095

$4.76

35

SCREW(10) (Cover, Clutch Inner, w/Insert)

7515187

$3.02

36

Seal, Cover Case

5410575

$44.51

37

BRKT,RETAINER,SEAL

5222446-067

Unavailable

38

Asm., Screw and Washer (See pg., Ref.)

----

Unavailable
