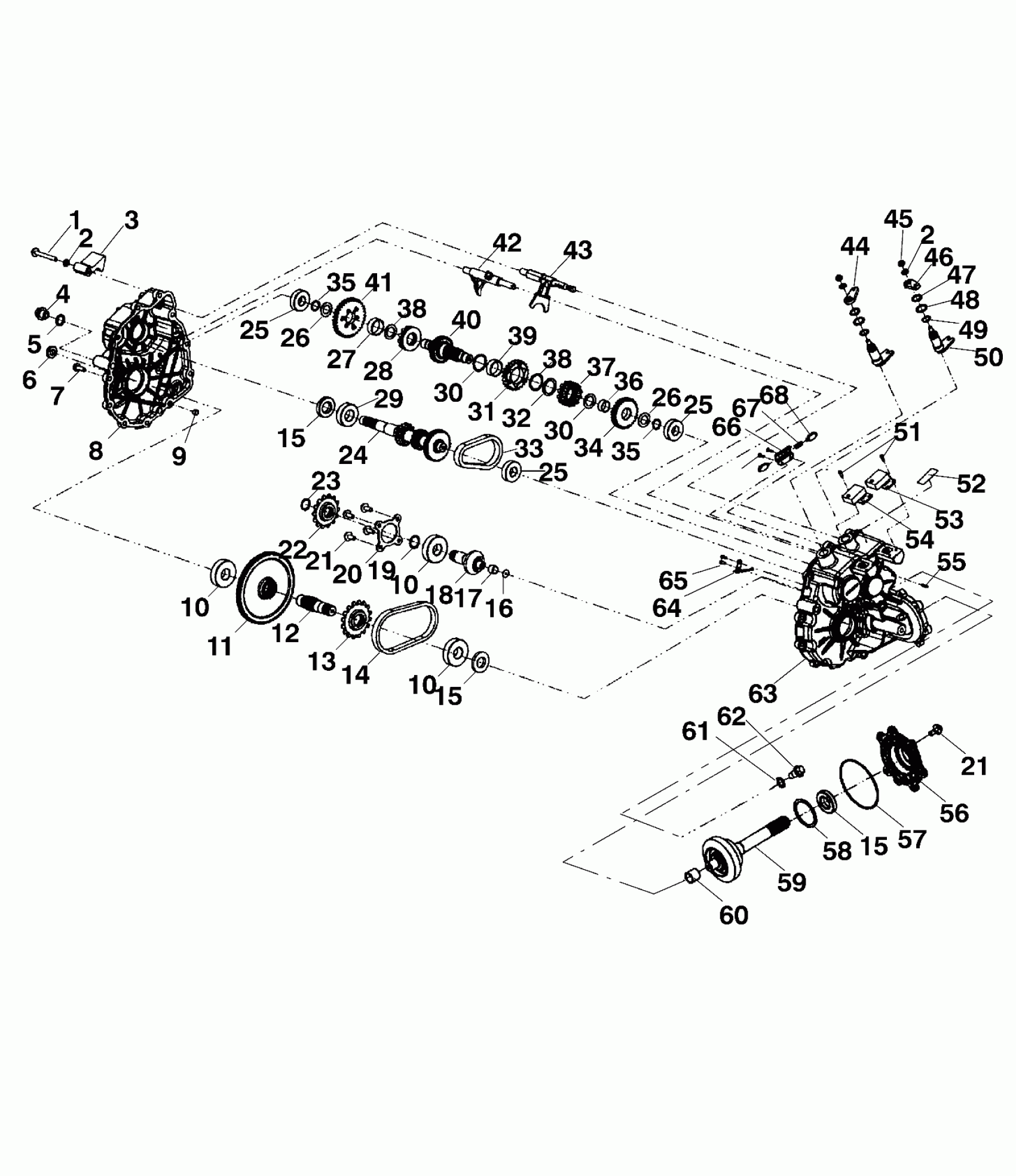

Polaris XPLORER 400 - A99CG38CA GEARCASE - A99CG38CA (4949634963C011) Diagram

#

Description
Price

-

GEARCASE,HLR,HYBRID 4X4 Substituted by 1341326 (Incl. 1-68)

1341273

Unavailable

1

Screw

3233525

$1.59

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

3

DAMPENER,CARB.VIBRATION

3233526

Unavailable

4

Plug

3233448

$23.99

5

Washer

3233035

Unavailable

6

BUSHING,PIVOT

3233527

$35.19

7

Screw

3233252

$5.27

8

GEARCASE-LH

3233632

$354.99

9

PIPE,KNOCK

3233529

$7.99

10

BEARING

3233020

$47.99

10

BEARING

3233020

$47.99

10

BEARING

3233020

$47.99

11

GEAR,98T,HCR.

3233558

$213.59

12

SHAFT,OUTPUT

3233544

$174.99

13

SPROCKET,16/26T

3233545

$55.99

14

CHAIN,ROLLER

3233546

$67.99

15

Seal

3233248

$30.88

15

Seal

3233248

$30.88

15

Seal

3233248

$30.88

16

WASHER,THRUST

3233542

$11.32

17

BUSHING,GARLOCK

3233541

$23.99

18

SHAFT,PINION,13T

3233540

$159.99

19

RING,RETAINING

3233306

$4.79

20

COVER,CTR.DRIVE BRG.

3233263

Unavailable

21

Screw

3233539

$15.49

21

Screw

3233539

$15.49

22

SPROCKET,14/22T

3233538

Unavailable

23

RING,RETAINING

3233537

$6.99

24

SHAFT-INPUT HIGH/LOW/REVERSE

3233704

Unavailable

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

26

Washer

3233176

$9.59

26

Washer

3233176

$9.59

27

BEARING,NEEDLE

3233009

$39.99

28

ENGAGEMENT-DOG,LOW

3233666

$100.24

29

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

30

Washer

3233010

Unavailable

30

Washer

3233010

Unavailable

31

SPROCKET,24T,12-POINT

3233532

Unavailable

32

RING,RETAINING

3233029

$5.59

33

CHAIN,SILENT,34P

3233036

Unavailable

34

GEAR,30T,12-POINT

3233535

Unavailable

35

RING,RETAINING

3233177

$6.39

35

RING,RETAINING

3233177

$6.39

36

BUSHING,GARLOCK

3233534

Unavailable

37

DOG,ENGAGE,12PT,HI/REV

3233533

Unavailable

38

WASHER

3233012

Unavailable

38

WASHER

3233012

Unavailable

39

BEARING, NEEDLE

3233014

$43.99

40

SHAFT-REVERSE,31T

3233703

Unavailable

41

GEAR,33T

3233665

Unavailable

42

SHIFT FORK-LOW

3233706

$119.99

43

FORK,SHIFT,HIGH/REV

3233633

$139.99

44

Bellcrank

3233547

$43.99

45

Nut

3233055

Unavailable

46

Bellcrank

3233153

$27.99

47

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

48

Washer

3233040

$9.59

49

O-Ring

3233548

$27.99

50

SHAFT,SHIFT

3233549

Unavailable

51

SCREW Substituted by 3233749

3233691

Unavailable

52

DECAL-SWITCH

3233636

Unavailable

53

SWITCH-H/R,ITW

3233635

Unavailable

54

SWITCH,ITW 2 POSITION

3233617

Unavailable

55

Vent

3233037

Unavailable

56

COVER,SNORKEL

3233556

$31.11

57

O-Ring

3233555

$6.06

58

SHIM

3233554

$30.79

59

GEAR,SNORKEL

3233553

Unavailable

60

BUSHING-GARLOCK

3233552

$23.99

61

Washer

3233324

$8.99

62

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

63

GEARCASE Substituted by 3233751

3233705

Unavailable

64

DEFLECTOR,OIL

3233043

$13.19

65

SCREW Substituted by 3233747

3233033

Unavailable

66

BRACKET,INTERLOCK

3233309

$20.63

67

Spring

3233032

$12.94

68

PIN,INTERLOCK

3233308

Unavailable
