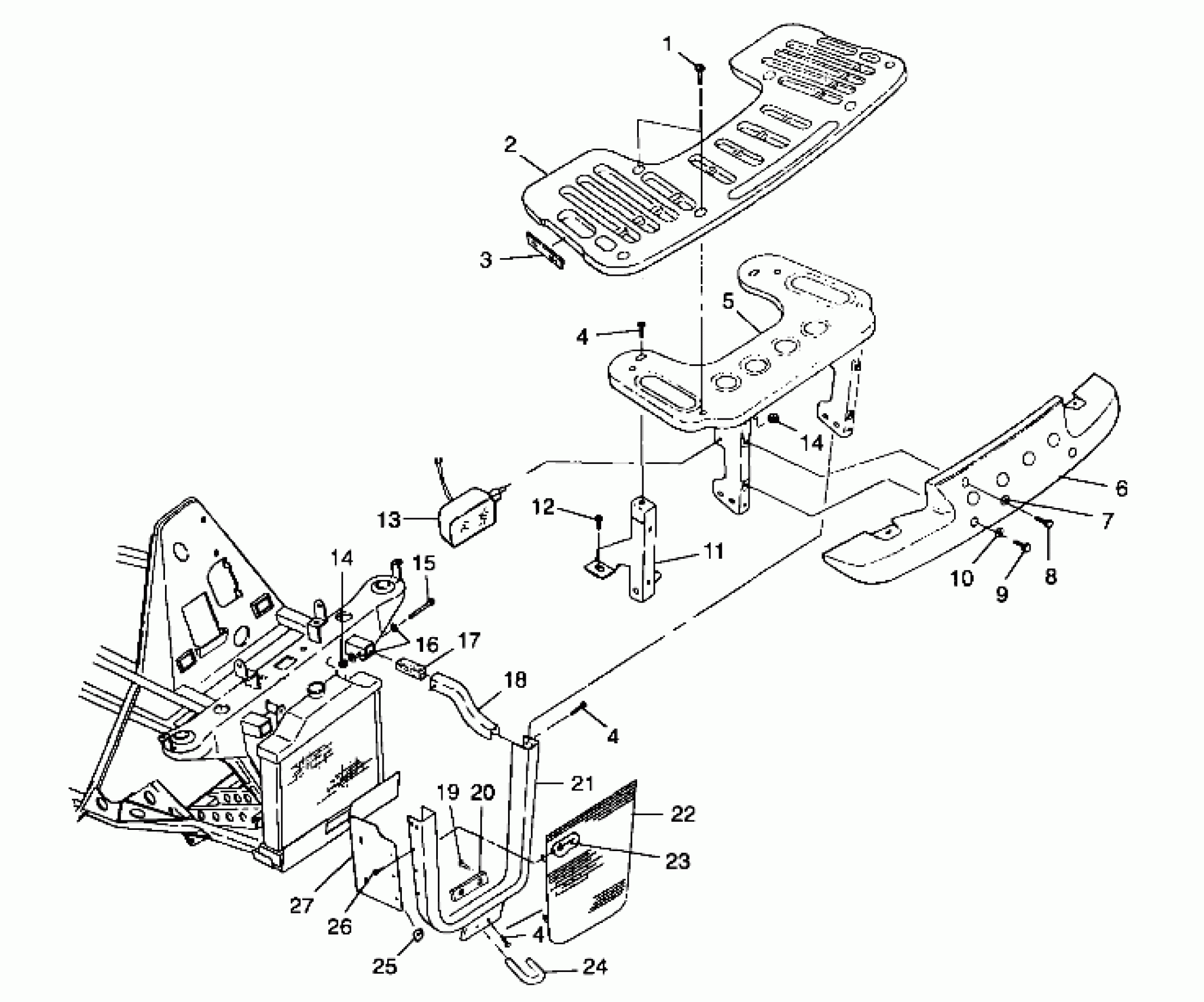

Polaris XPLORER 400 - A99CG38CA FRONT RACK and BUMPER MOUNTING - A99CG38CA (4949634963A009) Diagram

#

Description
Price

1

SCREW(10) Substituted by 7517685

7515194

Unavailable

2

RACK ASM,FRONT Substituted by 2670180-070 (Incl. Ref. 3 and Decal)

2670180

Unavailable

3

REFLECTOR AMBER

2670071

Unavailable

4

SCREW(10)

7515399

$1.49

4

SCREW(10)

7515399

$1.49

4

SCREW(10)

7515399

$1.49

5

KIT,FRT.RACK MOUNT

2200775

Unavailable

6

BUMPER,BLK.

5432155-070

$143.99

7

WASHER WROUGHT(10)

7558403

$4.79

8

BOLT(10)

7515391

$4.79

9

BOLT(10)

7515390

Unavailable

10

WASHER(10)

7555954

$4.79

11

SUPPORT,LH,F.RACK Substituted by 1013210-067

1040554-067

$69.99

11

SUPPORT,RH,F.RACK Substituted by 1013211-067

1040555-067

Unavailable

12

BOLT(10)

7512232

$1.49

13

BULB,H/L,27W.HOBBS

4030059

Unavailable

13

H/L ASM,LH,35W

2431014

Unavailable

13

H/L ASM,RH,35W

2431015

$92.99

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

BOLT(10)

7515384

Unavailable

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

PLUG, FRAME

5810467

Unavailable

18

EXTENSION,LH.FRAME,BLK.

5241398-067

$91.27

18

EXTENSION,RH.FRAME,BLK.

5241399-067

Unavailable

19

SCREW(10)

7515547

Unavailable

20

PLATE,BACK MT,BLK.

5211633-067

$14.87

21

GUARD,BRUSH,BLK

5241583-067

Unavailable

22

GRILL,BRUSHGUARD,BLK.

5240591-067

$62.99

23

RIVET, POP(50)

7621330

$1.49

24

HITCH,U-BOLT,BLK.

5241224-067

Unavailable

25

NUT(10)

7670094

$5.59

26

SCREW(10)

7512097

$3.99

27

SHIELD,LH RADIATOR

5431814

Unavailable

27

SHIELD,RH RADIATOR

5431815

Unavailable
