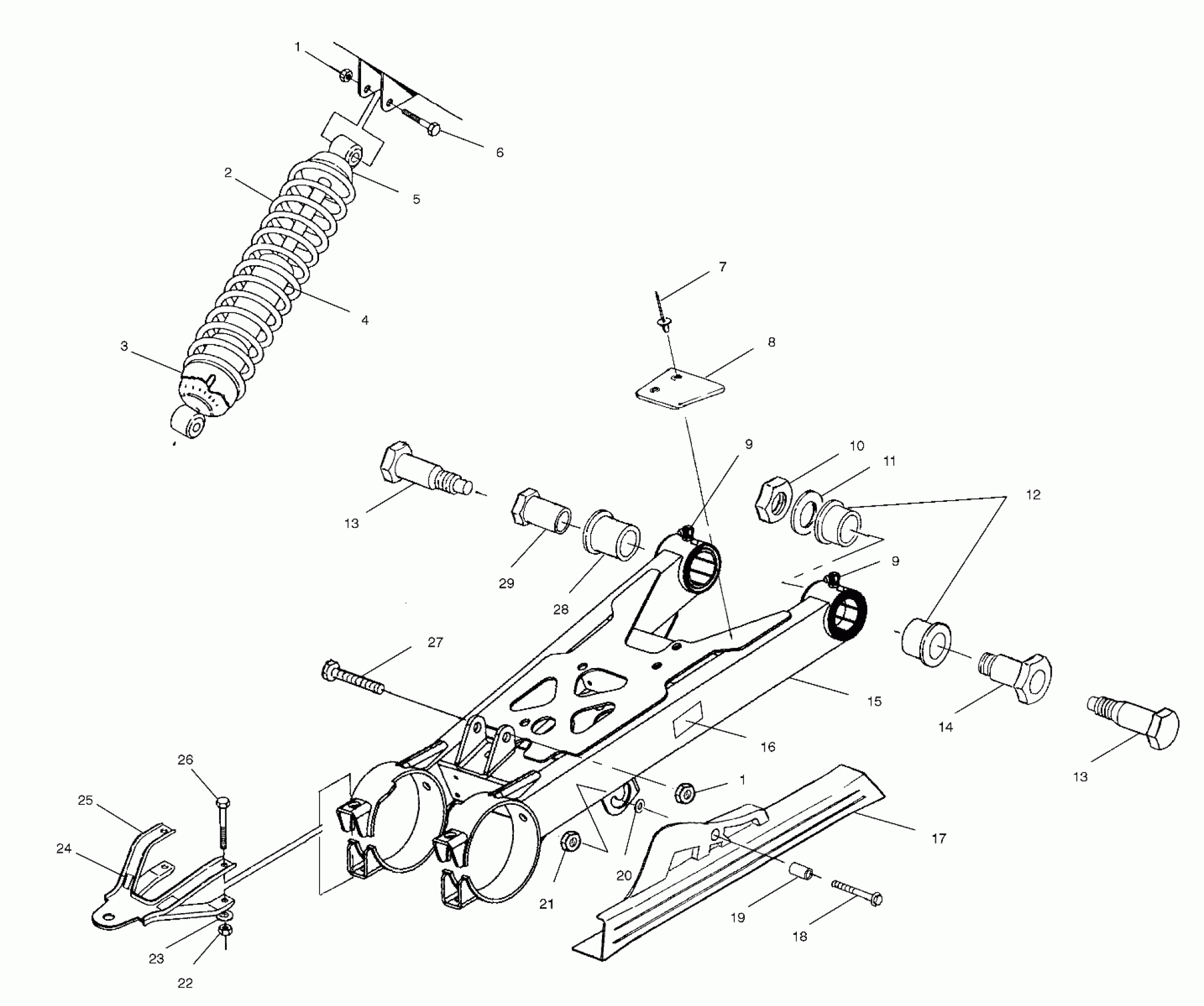

Polaris XPLORER 400 - A02CG38CA SWING ARM/SHOCK MOUNTING - A02CG38CA (4970247024B11) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.19

1

Nut, Nylok

7542439

$1.19

2

Spring, Compression

7041204-067

$64.99

3

Cam, Adjusting

5630551

$36.41

4

Shock

7041961

Unavailable

5

Retainer, Shock

5241147

$10.32

6

Screw

7515415

$1.19

7

Rivet

7661046

$3.97

8

Guide, Chain Pad

5432727

Unavailable

9

Fitting

7080510

$5.56

9

Fitting

7080510

$5.56

10

Nut

7547082

$32.37

11

Washer, Flat

7556035

Unavailable

12

Bushing, Swing Arm, RH

5434546

$8.73

13

Bolt, Swing Arm Pivot

5131697

$35.71

13

Bolt, Swing Arm Pivot

5131697

$35.71

14

Bushing, Swing Arm Pivot, RH

5133167

$35.71

15

Asm., Swing Arm [Incl. 9,12,28]

1580111

Unavailable

16

Decal, "Chain Free Play"

7078572

Unavailable

17

Guard, Chain

5432854

Unavailable

18

SCREW

7515304

$5.56

19

Bushing

5332828

$9.70

20

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

21

Nut, Flange

7542321

$1.19

22

Nut, Nylok

7547066

$1.59

23

Washer

7555883

$3.97

24

Decal, Hitch

7072533

Unavailable

25

Kit, Hitch [Incl. 22-26]

2873036

Unavailable

26

Bolt

7512576

$7.94

27

Screw

7515438

$4.76

28

Bushing, Swing Arm, LH

5434545

$8.73

29

Bushing, Swing Arm Pivot, LH

5133166

$31.75
