Description

Price

1

NUT, FLANGE

3083649

$3.99

2

Brush

3084406

Unavailable

3

Asm., Starter [Incl. 1-5,7,9,11-16]

3085393

Unavailable

3

Asm., Starting Motor [Incl. 1-5,7,9,11-17,20-24]

3087043

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

Cover, Rear

3085032

$82.39

6

Gasket, Aluminum

3082758

$1.19

7

O-RING

3084408

Unavailable

8

Bolt, Flange

3086782

Unavailable

8

Bolt, Flange

3086782

Unavailable

9

Asm., Bolt, Through

3084407

Unavailable

10

Bracket

3086780

Unavailable

11

Washer Set

3083754

$2.39

12

Asm., Armature [Incl. 13,14]

3084404

$207.99

13

O-Ring

3083934

Unavailable

14

Bearing, Ball

3083777

$31.99

15

O-Ring

3083741

$9.37

16

Cover, Front [Incl. 15]

3085305

$123.02

17

WASHER

3240134

Unavailable

18

Gasket, Starter

3085283

Unavailable

19

Bolt, Flange

3086781

$4.79

20

CLIP

3084409

$7.19

21

SPRING, RETURN

3084410

$2.47

22

Asm., Gear Shaft [Incl. 17,20-24]

3087030

Unavailable

23

SPRING, WEIGHT

3084411

$15.67

24

CLIP

3084412

$9.59

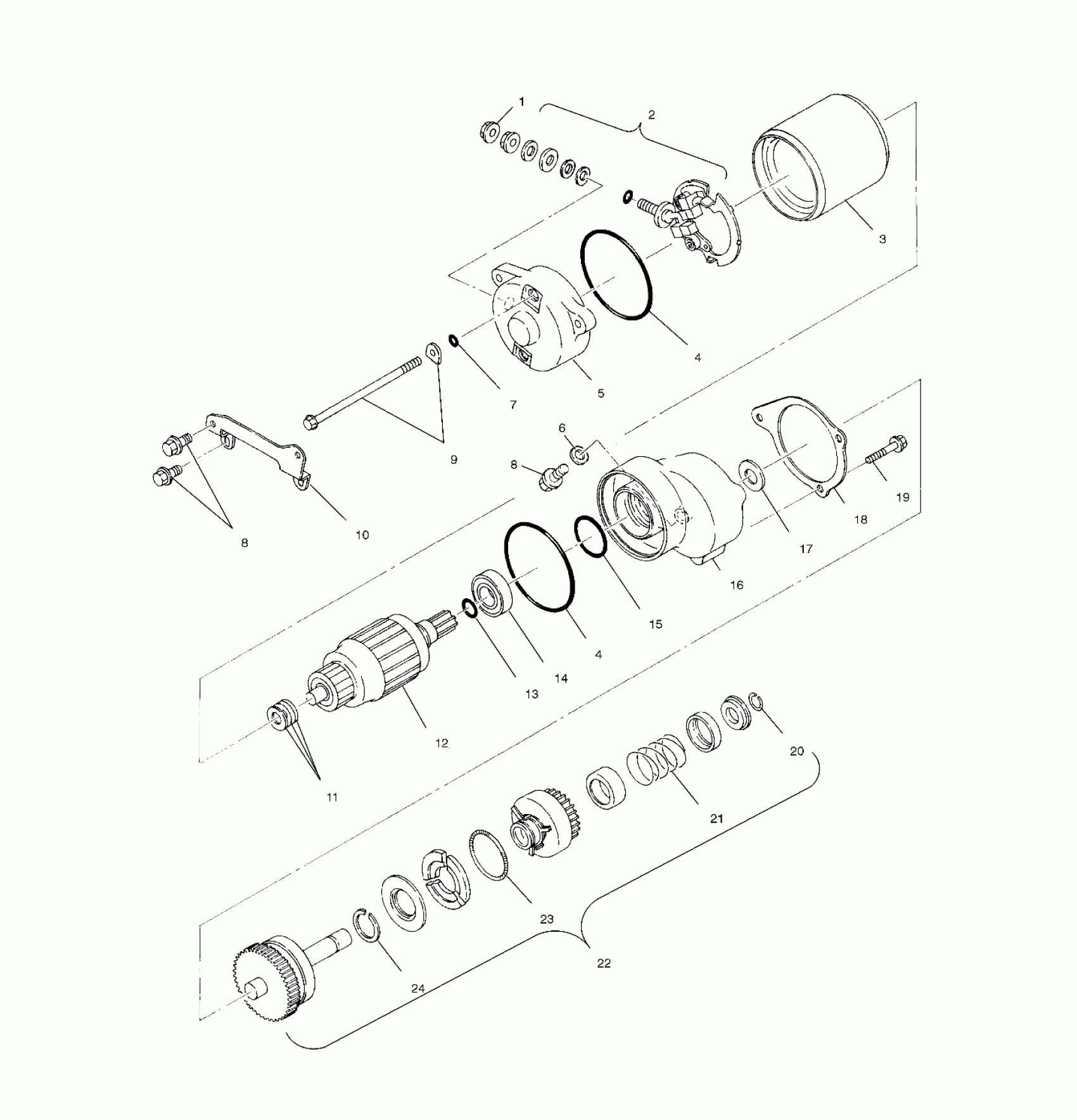

Polaris XPLORER 400 - A02CG38CA STARTING MOTOR - A02CG38CA (4970247024D05) Diagram

NUT, FLANGE

Brush

Asm., Starter [Incl. 1-5,7,9,11-16]

Asm., Starting Motor [Incl. 1-5,7,9,11-17,20-24]

RING, RUBBER

RING, RUBBER

Cover, Rear

Gasket, Aluminum

O-RING

Bolt, Flange

Bolt, Flange

Asm., Bolt, Through

Bracket

Washer Set

Asm., Armature [Incl. 13,14]

O-Ring

Bearing, Ball

O-Ring

Cover, Front [Incl. 15]

WASHER

Gasket, Starter

Bolt, Flange

CLIP

SPRING, RETURN

Asm., Gear Shaft [Incl. 17,20-24]

SPRING, WEIGHT

CLIP
