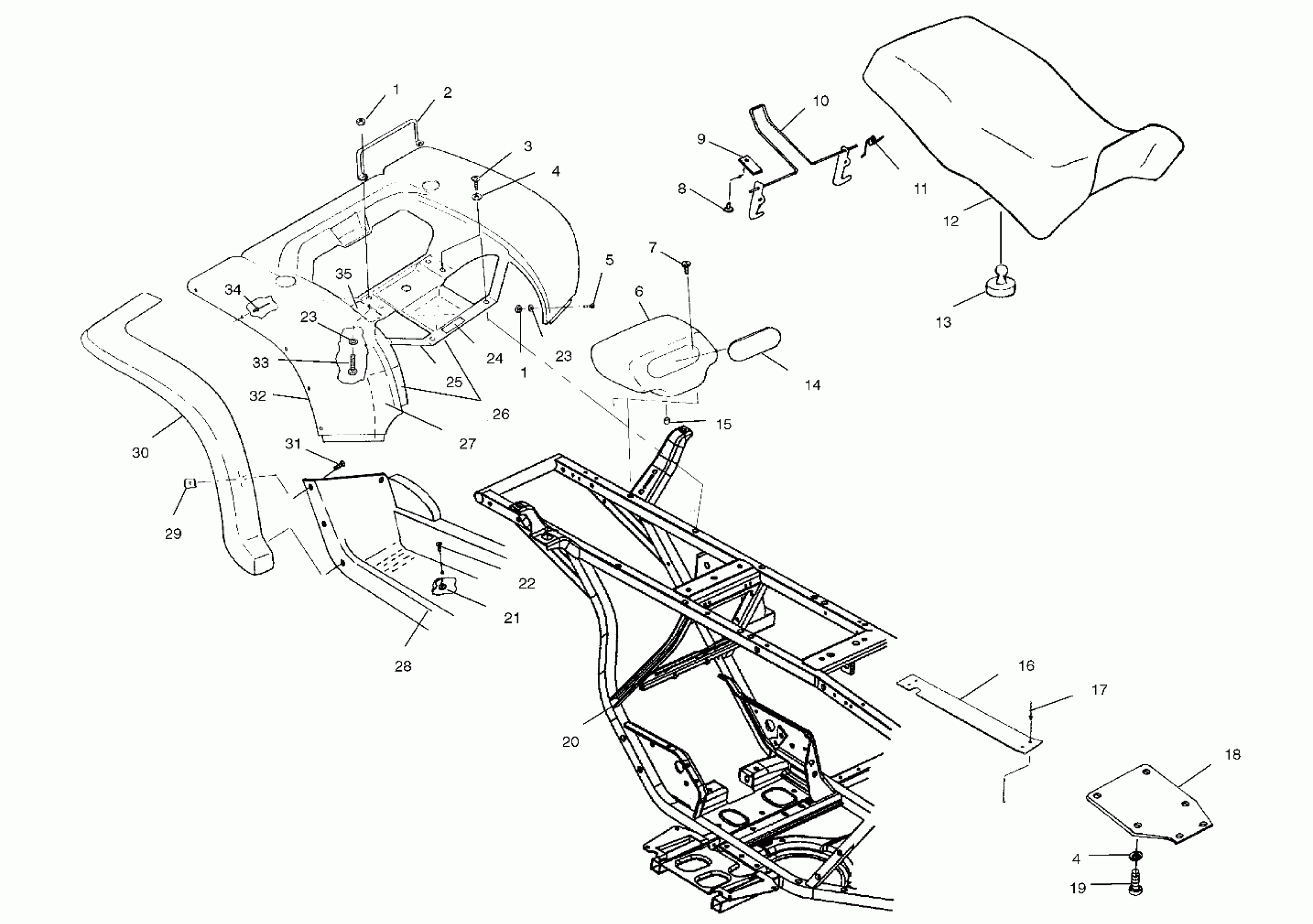

Polaris XPLORER 400 - A02CG38CA REAR CAB and SEAT - A02CG38CA (4970247024A04) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$0.79

1

Nut, Nylok

7541925

$0.79

2

Retainer, Seat Latch

5246091

$10.63

3

SCREW

7512242

$2.38

4

Washer, Flat

7555859

$1.19

4

Washer, Flat

7555859

$1.19

5

Screw

7512085

Unavailable

6

Box, Tool

5434040

$32.70

7

Screw

7517375

$1.19

8

RIVET

7621403

$1.19

9

BRACKET, LEVER RETAINER

5211033

$34.99

10

LATCH, SEAT

1040387

$48.56

11

SPRING, LATCH

7041370

$9.52

12

Foil, Seat Base, Large

5811104

Unavailable

12

Asm., Seat, Brown [Incl. 8-13]

2682957-276

$445.22

12

Covering, Seat, Brown

2682958-276

$149.75

13

BUMPER-RUBBER

5412067

$3.97

14

Cover, Tool Box

5431787

Unavailable

15

Cap, Drain

5410896

$5.65

16

Guard, Clutch

5241403-067

$5.71

17

RIVET-3/16-.090-.290

7661637

$1.19

18

Guard, Rock

5432763

$109.99

19

Screw

7515179

$2.38

20

Frame, Main

1013643-067

Unavailable

21

Nut, Nylok

7542122

$1.19

22

Screw

7517376

$0.79

23

WASHER

7555792

$4.76

23

WASHER

7555792

$4.76

24

Decal, Carb/Filter Information

7079901

Unavailable

25

Foil, Foam

5811087

Unavailable

26

Foil, Rear Cab, Front

5811106

Unavailable

27

Foil Foam, Rear Fender

5811111

Unavailable

28

Footwell, Black, RH

5434417-070

$230.70

28

Footwell, Black, LH

5432056-070

$230.70

29

NUT, U-TYPE SPEED

7670057

$1.19

30

Guard, Mud, Rear, LH

5431796-070

Unavailable

30

Guard, Mud, Rear, RH

5431797-070

Unavailable

31

SCREW

7512232

$1.19

32

Cab, Rear, E.B. Green

5432117-195

Unavailable

33

Bolt

7511930

$2.38

34

Rivet

7661645

Unavailable

35

Foil, Rear Cab, Rear

5811107

Unavailable
