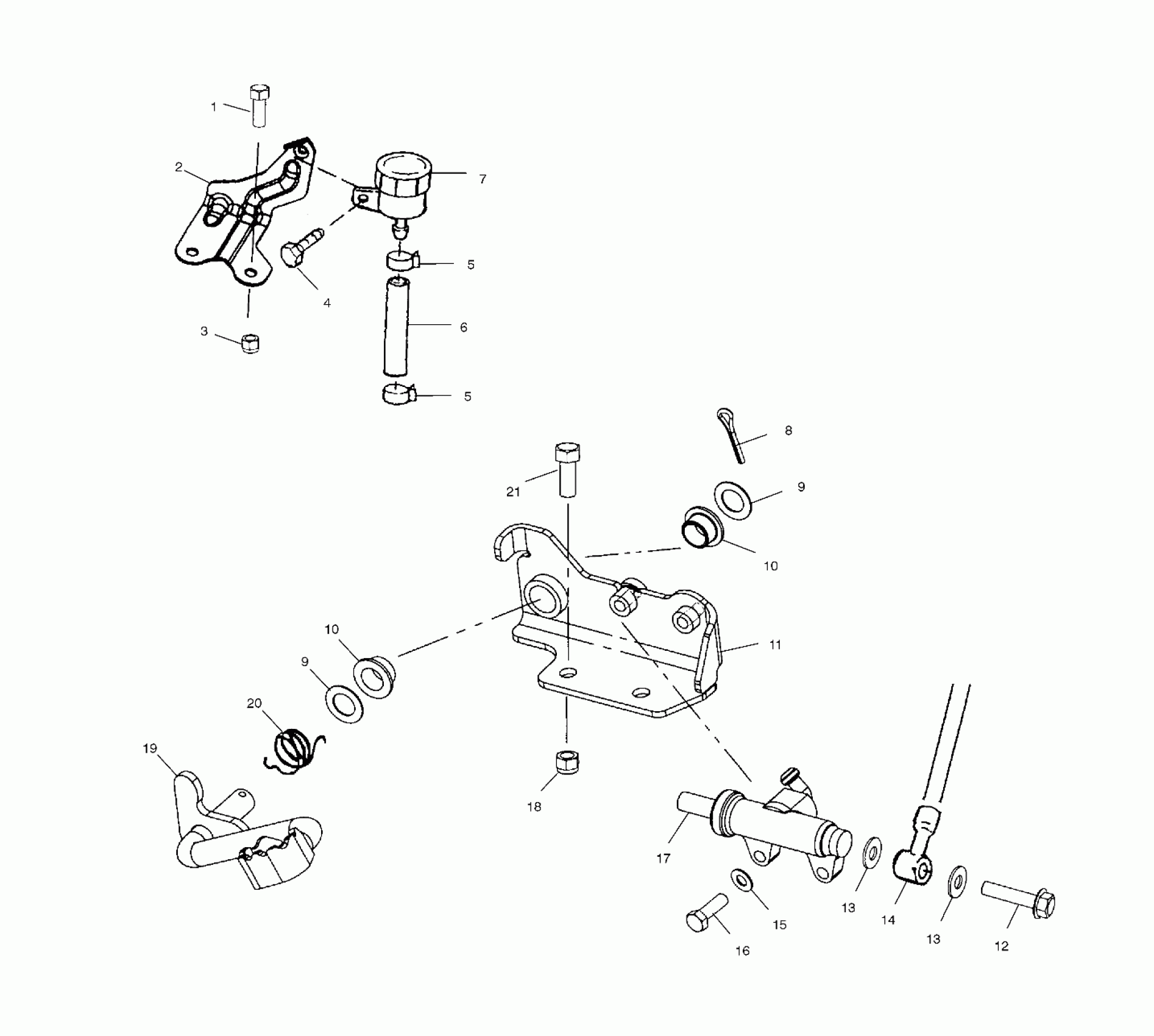

Polaris XPLORER 400 - A02CG38CA REAR BRAKE MASTER CYLINDER - A02CG38CA (4970247024C01) Diagram

#

Description
Price

1

Bolt

7512113

$3.99

2

Bracket, Reservoir Mount

5244091-067

$5.75

3

Nut, Nylok

7542122

$1.49

4

SCREW

7517386

$1.49

5

HOSE CLAMP, RED

7080003

$1.49

5

HOSE CLAMP, RED

7080003

$1.49

6

Hose, Reservoir

1910404

Unavailable

7

Reservoir

1930854

$35.99

8

PIN, COTTER

7661401

$1.49

9

WASHER

7555919

$4.99

9

WASHER

7555919

$4.99

10

BUSHING-PEDAL PIVOT

5431107

$8.79

10

BUSHING-PEDAL PIVOT

5431107

$8.79

11

Mount, Brake

1910375-067

Unavailable

12

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

13

Seal

5410988

$4.84

13

Seal

5410988

$4.84

14

LINE, FOOT BRAKE, REAR [See Rear Caliper Mounting Pg. B13, Ref. 6]

-------

Unavailable

15

Washer, Spring

7552801

$1.59

16

Screw

7515179

$2.39

17

Asm., Foot Brake Master Cylinder

1910311

$166.01

18

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

Brake, Rod

1910376-067

$51.99

20

SPRING-TORSION,BRAKE

7041750

$8.79

21

Screw

7515321

$1.49
